Omron CP1E-ED

3 Part Names and Functions
3-4
CP1E CPU Unit Hardware User’s Manual(W479)

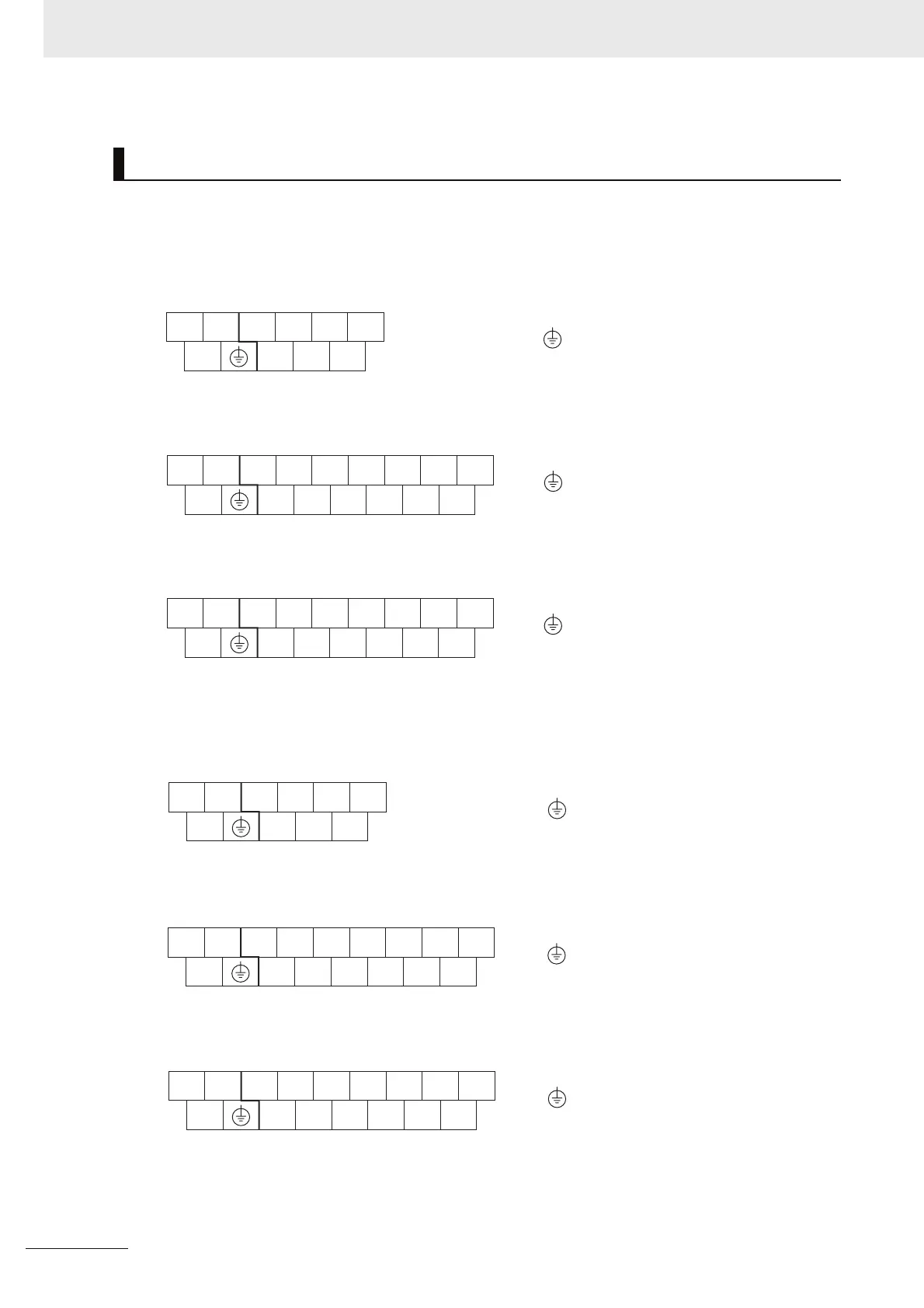

 Input Arrangement
AC Power Supply
DC Power Supply
Terminal Arrangements
CIO 0
CP1E-E10D-A
L1 L2/N
COM 01 03 05
00 02 04NC
L1,L2/N : Power supply terminal
: Protective ground terminal
COM : Common terminal
00 to 05 : Input terminal
NC : No connection
CIO 0
CP1E-14D-A
L1 L2/N
COM 01 03 05 07 NC NC
00 02 04 06 NC NCNC
L1,L2/N : Power supply terminal
: Protective ground terminal
COM : Common terminal
00 to 07 : Input terminal
NC : No connection
CIO 0
CP1E-20D-A
L1 L2/N
COM 01 03 05 07 09 11
00 02 04 06 08 10NC
L1,L2/N : Power supply terminal
: Protective ground terminal
COM : Common terminal
00 to 11 : Input terminal
NC : No connection
+
-
COM 01 03 05
00 02 04NC
CIO 0
CP1E-E10D-D
+, - : Power supply terminal
: Protective ground terminal
COM : Common terminal
00 to 05 : Input terminal
NC : No connection
+
-
COM 01 03 05 07 NC NC
00 02 04 06 NC NCNC
CIO 0
CP1E-N14D-D
+, - : Power supply terminal
: Protective ground terminal
COM : Common terminal
00 to 07 : Input terminal
NC : No connection
+
-
COM 01 03 05 07 09 11
00 02 04 06 08 10NC
CIO 0
CP1E-N20D-D
+, - : Power supply terminal
: Protective ground terminal
COM : Common terminal
00 to 11 : Input terminal
NC : No connection
