Omron CP1E-ED

3-13
3 Part Names and Functions
CP1E CPU Unit Hardware User’s Manual(W479)
3-1 CPU Units
3
3-1-3 Common I/O Specifications
CP1E- N14/20/30/40/60DT(1)-, CP1E-E10DT(1)-, CP1E-NA20DT(1)-
 Normal Outputs
*1 Also do not exceed 0.9 A for the total of CIO 100.00 to CIO 100.03, which are different common.
*2 The bits that can be used depend on the model of CPU Unit.

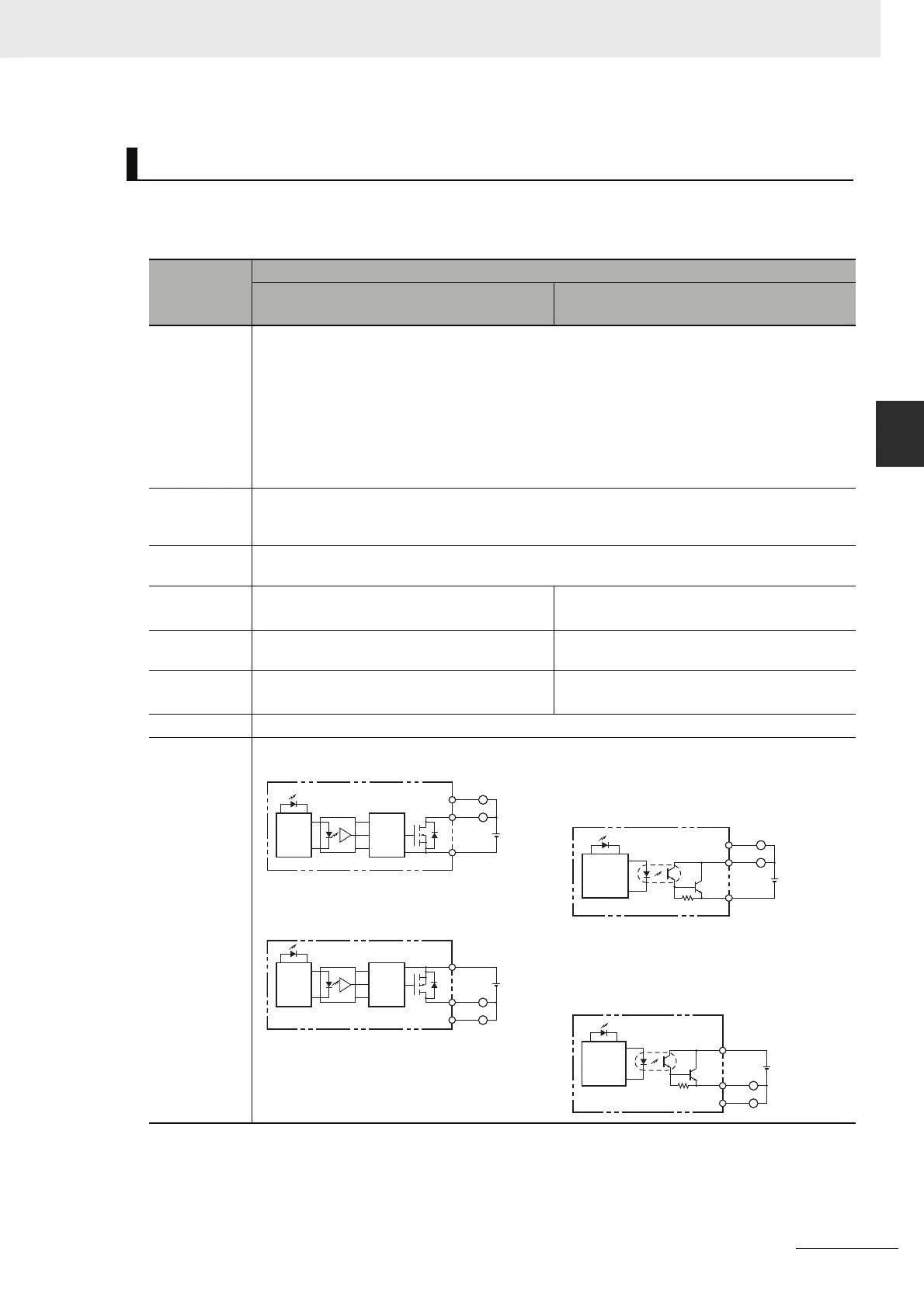

Output Specifications for Transistor Outputs (Sinking or Sourcing)
Item
Specification
CIO 100.00 and CIO 100.01
CIO 100.02 to CIO 100.07, CIO 101.00 to
CIO 101.07 and CIO 102.00 to CIO 102.07
*2
Maximum
switching
capacity
0.3 A/output, 0.9 A/common
*1
4.5 to 30 VDC
CP1E-E10D-: 0.9 A/Unit
CP1E-N14D-: 1.5 A/Unit
CP1E-N20D-: 1.8 A/Unit
CP1E-N30D-: 2.7 A/Unit
CP1E-N40D-: 3.6 A/Unit
CP1E-N60D-: 5.4 A/Unit
CP1E-NA20D-: 1.8 A/Unit
Minimum
switching
capacity
1 mA 4.5 to 30 VDC
Leakage
current
0.1mA max.
Residual
voltage
E-type CPU Unit: 1.5 V max.
N/NA-type CPU Unit: 0.6 V max.
1.5V max.
ON response
time
0.1 ms max. 0.1 ms max.
OFF response
time
E-type CPU Unit: 1 ms max.
N/NA-type CPU Unit: 0.1 ms max.
1 ms max.
Fuse Not provided.
Circuit
configuration
• N/NA-type CPU Unit: Normal outputs CIO
100.00 to CIO 100.01 (sinking)
• N/NA-type CPU Unit: Normal outputs CIO
100.00 to CIO 100.01 (sourcing)
• E-type CPU Unit: Normal outputs CIO
100.00 to CIO 100.03 (sinking)
• N/NA-type CPU Unit: Normal outputs CIO
100.02 to CIO 102.07 (sinking)
• E-type CPU Unit: Normal outputs CIO
100.00 to CIO 100.03 (sourcing)
• N/NA-type CPU Unit: Normal outputs CIO
100.02 to CIO 102.07 (sourcing)
OUT
OUT
~
COM(–)
L
L
Internal
circuits
Internal
circuits
24 VDC,
4.5 to 30
VDC
Internal
circuits
OUT
OUT
L
L
COM(+)
Internal
circuits
24 VDC,
4.5 to 30
VDC
~
OUT
OUT
COM(–)
L
L
24 VDC,
4.5 to 30
VDC
Internal
circuits
~
OUT
OUT
COM(+)
L
L
24 VDC,
4.5 to 30
VDC
Internal
circuits
~
