3 Part Names and Functions
3-14
CP1E CPU Unit Hardware User’s Manual(W479)
Precautions for Correct UsePrecautions for Correct Use
Do not connect a load to an output terminal or apply a voltage in excess of the maximum switch-
ing capacity.

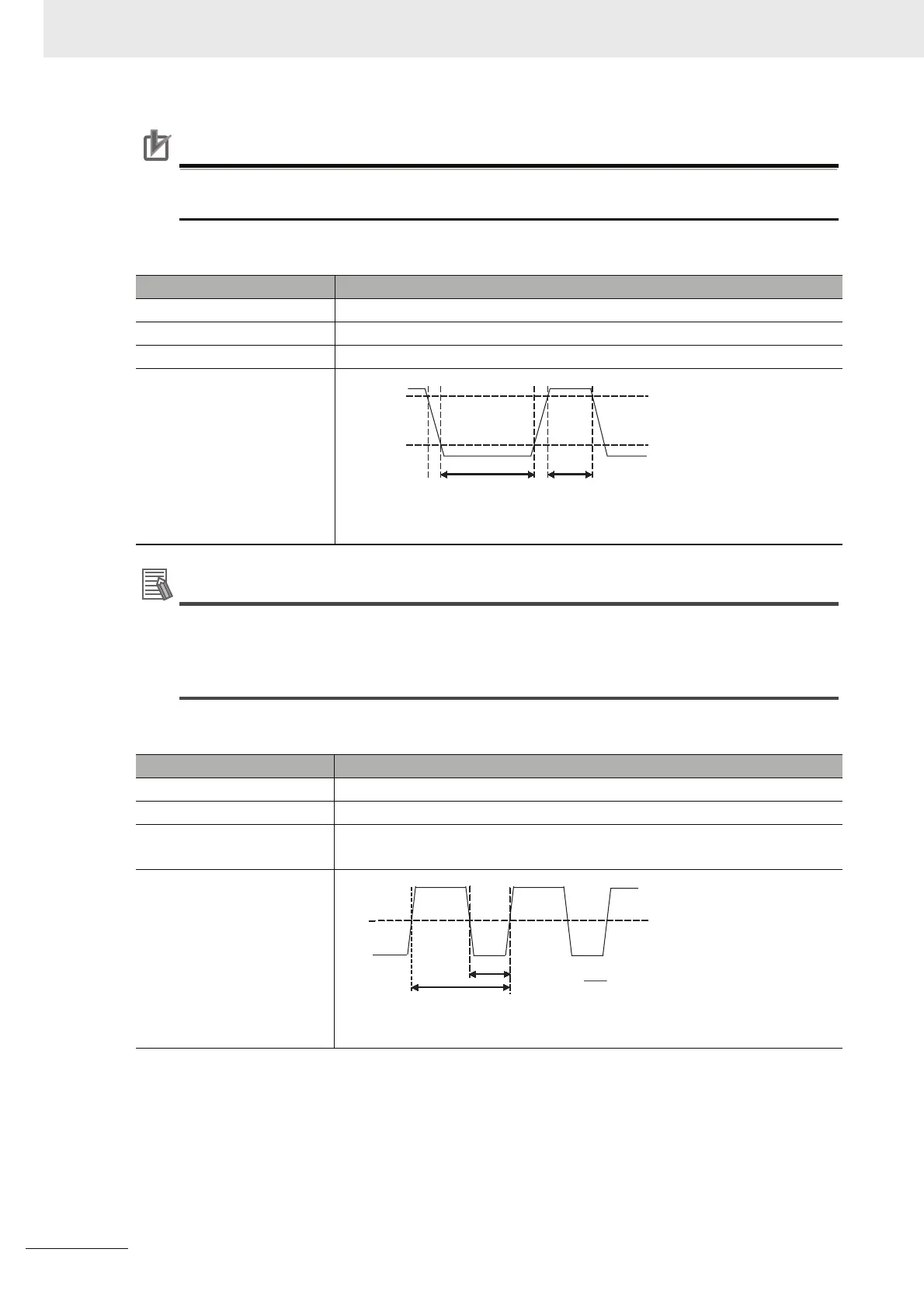

 Pulse Outputs (CIO 100.00 and CIO 100.01)
Additional Information
• The load for the above values is assumed to be the resistive load, and does not take into
account the impedance for the connecting cable to the load.
• Due to distortions in pulse waveforms resulting from connecting cable impedance, the pulse
widths in actual operation may be smaller than the values shown above.
 PWM Output (CIO 100.01)
Item Specification
Maximum switching capacity 100 mA 4.5 to 26.4 VDC
Minimum switching capacity 7 mA 4.5 to 26.4 VDC
Maximum output frequency 100 kHz
Output waveform
The OFF and ON refer to the output transistor. The output transistor is ON at
level “L”.
Item Specification
Maximum switching capacity 30 mA 4.5 to 26.4 VDC
Maximum output frequency 32 kHz
PWM output accuracy For ON duty +1%, -0%:10 kHz output
For ON duty +5%, -0%: 0 to 32 kHz output
Output waveform
The OFF and ON refer to the output transistor. The output transistor is ON at
level “L”.
4µs min.
2µs min.
OFF
90
%
ON
10
%
T
ON duty=
× 100 %
T
t
ON
t ON
OFF
ON
