414
Analog I/O Units Section 7-4
7-4 Analog I/O Units
7-4-1 CP1W-MAD11 Analog I/O Units
Each CP1W-MAD11 Analog I/O Unit provides 2 analog inputs and 1 analog
output.
• The analog input range can be set to 0 to 5 VDC, 1 to 5 VDC, 0 to
10 VDC, −10 to 10 VDC, 0 to 20 mA, or 4 to 20 mA. The inputs have a
resolution of 1/6000.
An open-circuit detection function is activated in the ranges of 1 to 5 VDC
and 4 to 20 mA.
• The analog output range can be set to 1 to 5 VDC, 0 to 10 VDC, −10 to
10 VDC, 0 to 20 mA, or 4 to 20 mA. The outputs have a resolution of
1/6000.

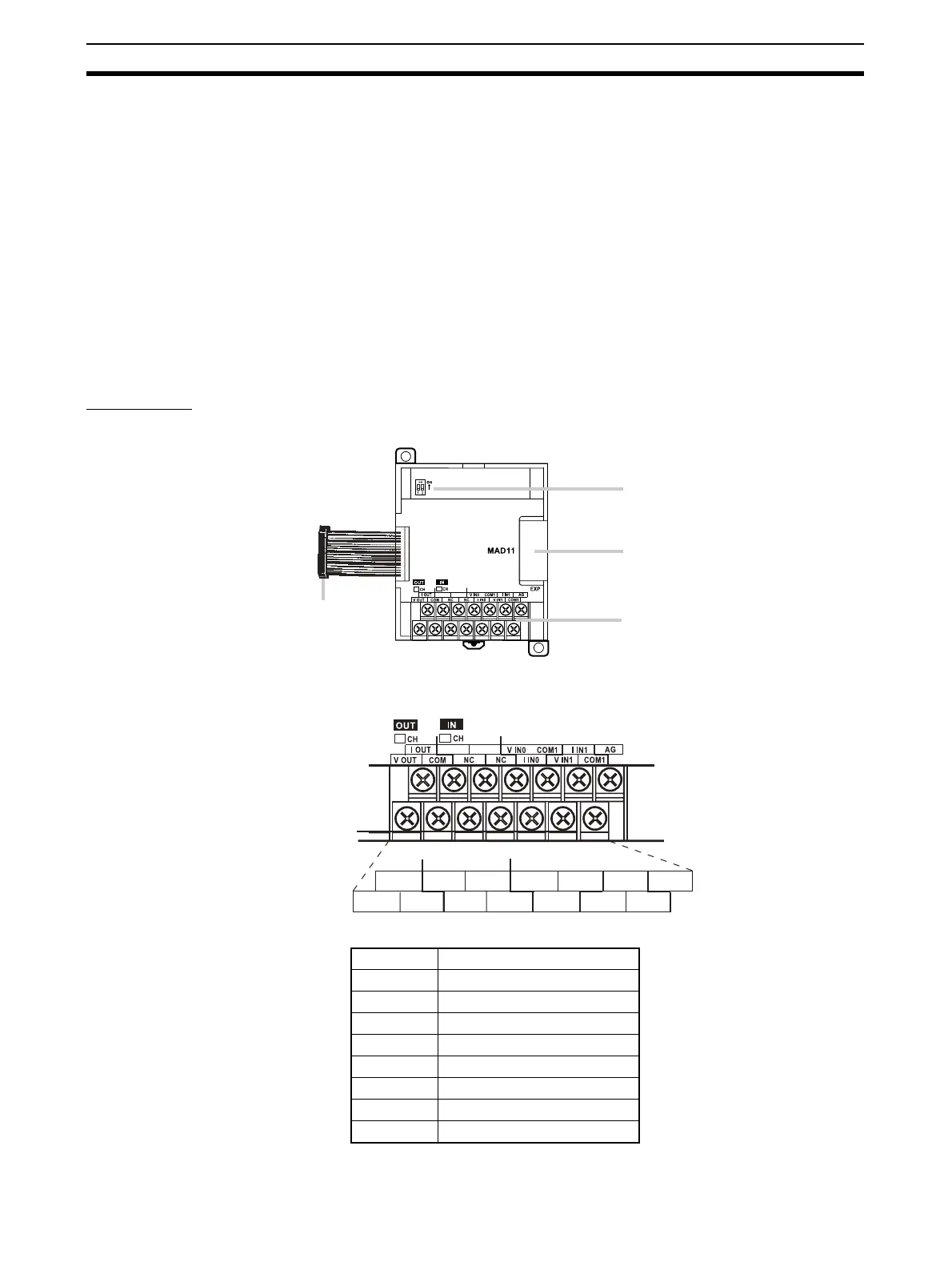

Part Names
(1) Analog I/O Terminals
Connected to analog I/O devices.
Note For current inputs, short V IN0 to I IN0 and V IN1 to I IN1.
NC
NC
CP1W-MAD11
(3) Expansion connector
(2) Expansion I/O connecting cable
(1) Analog I/O terminals
(Terminal block is not removable)
(4) DIP switch
V OUT Voltage output
I OUT Current output
COM Output common
V IN0 Voltage input 0
I IN0 Current input 0
COM0 Input common 0
V IN1 Voltage input 1
I IN1 Current input 1
COM1 Input common 1
I OUT V IN0
COM0
V OUT
COM I IN0
I IN1
V IN1 COM1
NC NC
AG
NC NC
NC
NC
