Analog I/O Units Section 7-4

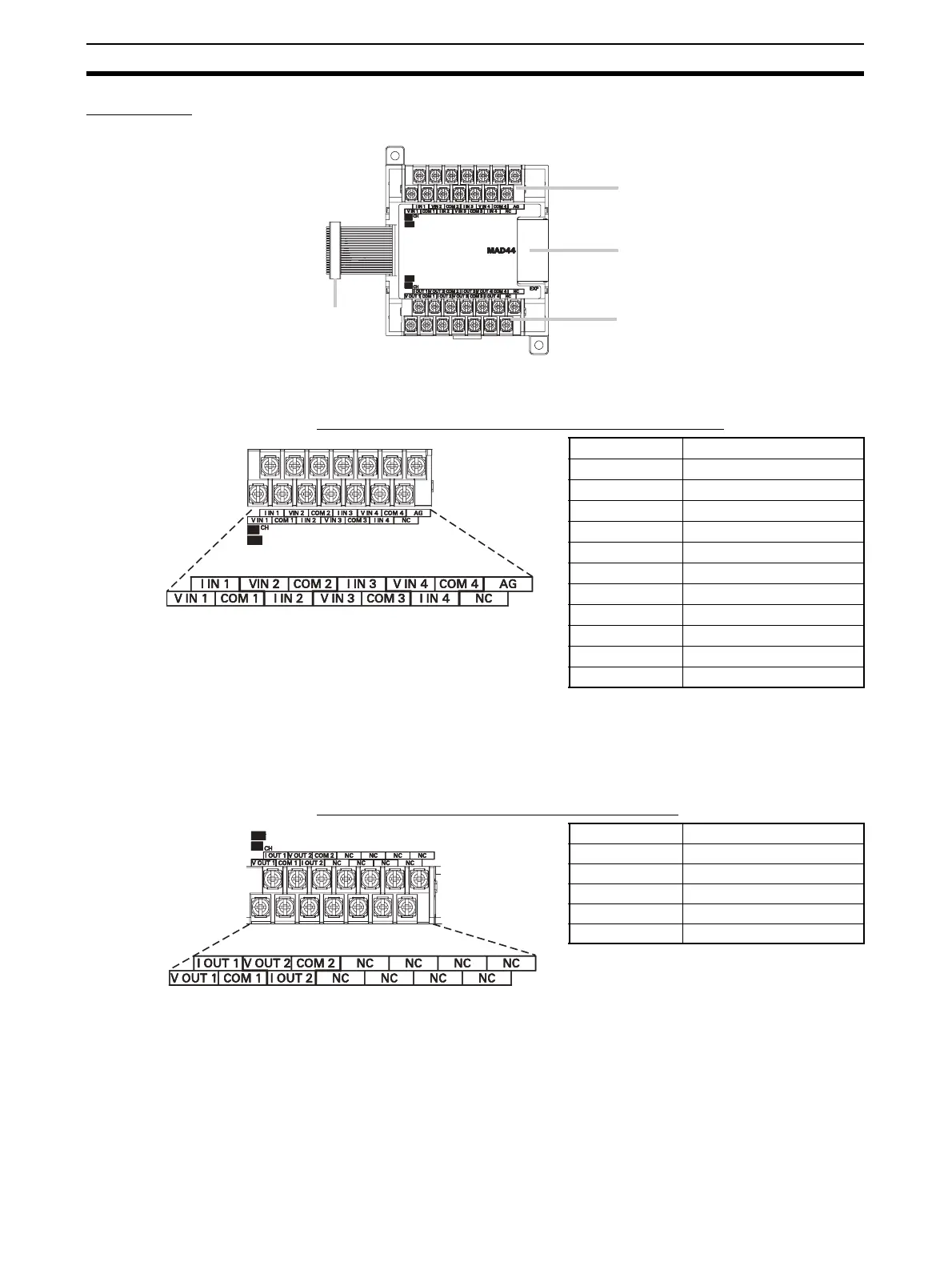

Part Names
(1) Analog Input Terminals
Connected to analog output devices.
Input Terminal Arrangement for CP1W-MAD42/MAD44
Note When using current inputs, voltage input terminals must be short-circuited
with current input terminals.
(2) Analog Output Terminals
Connected to analog input devices.
Output Terminal Arrangement for CP1W-MAD42
CP1W-MAD42/CP1W-MAD44
(4) Expansion connector
(3) Expansion I/O connecting cable
(2) Analog Output terminals
(Terminal block is not removable)
(1) Analog Input terminals
(Terminal block is not removable)
V IN1 Voltage input 1
I IN1 Current input 1
COM1 Input common 1
V IN2 Voltage input 2
I IN2 Current input 2
COM2 Input common 2
V IN3 Voltage input 3
I IN3 Current input 3
COM3 Input common 3
V IN4 Voltage input 4
I IN4 Current input 4
COM4 Input common 4
V OUT1 Voltage output 1
I OUT1 Current output 1
COM1 Output common 1
V OUT2 Voltage output 2
I OUT2 Current output 2
COM2 Output common 2
