Temperature Sensor Units Section 7-5
7-5 Temperature Sensor Units
7-5-1 CP1W-TS01/TS02 Temperature Sensor Units
CP1W-TS002/TS102 Temperature Sensor Units each provide up to four input
points, and CP1W-TS001/TS101 Temperature Sensor Units each provide up
to two input points. The inputs can be from thermocouples or platinum resis-
tance thermometers.
CP1W-TS002/TS102 Temperature Sensor Units are each allocated four input
words, so no more than three Units can be connected. Up to 14 temperature
sensor input points can be connected by using three CP1W-TS002/TS102
Temperature Sensor Units and one CP1W-TS001/TS101 Temperature Sen-
sor Unit.

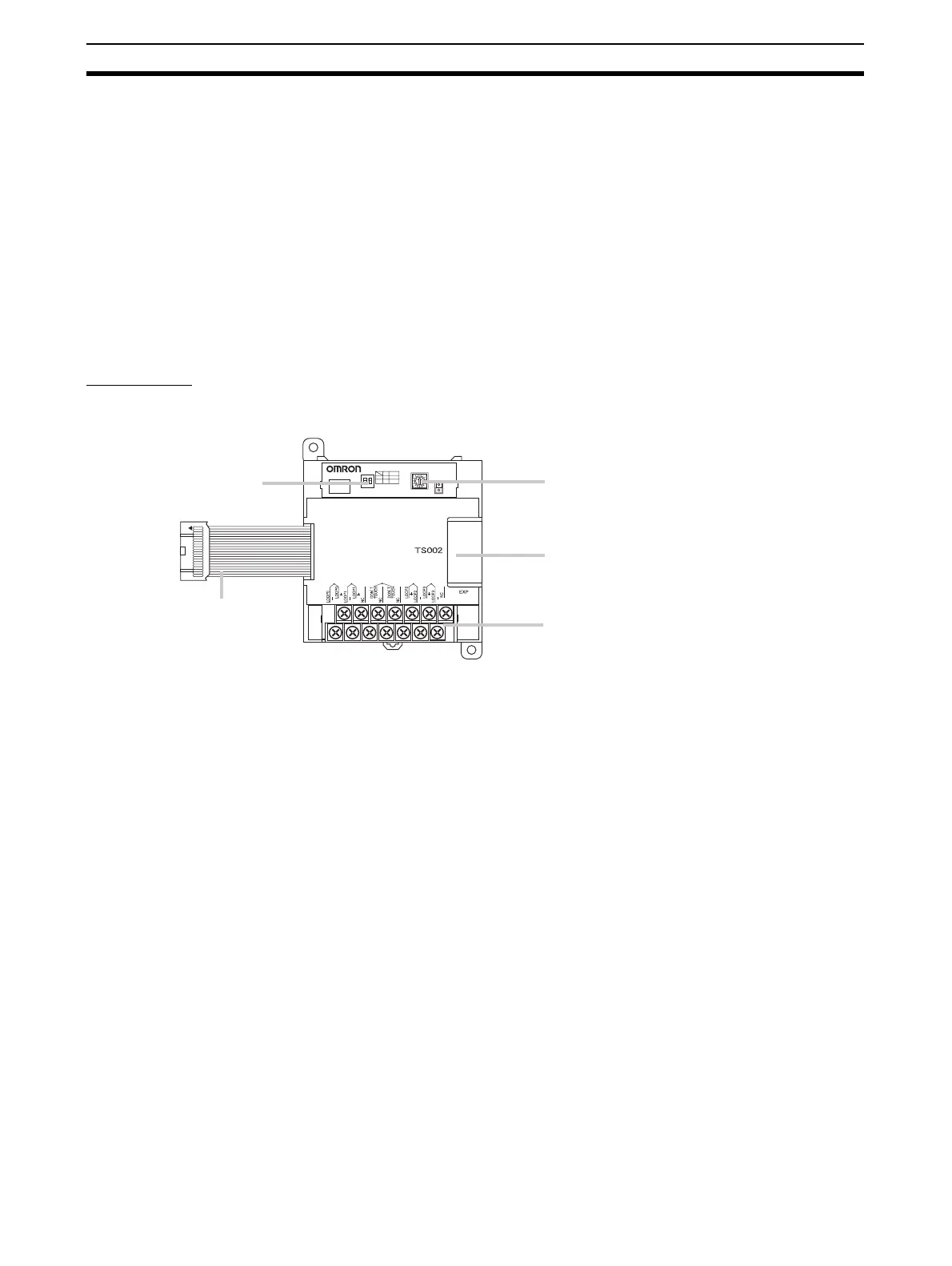

Part Names
Temperature Sensor Units:
CP1W-TS001/002/101/102
(1) Temperature Sensor Input Terminals
Used to connect temperature sensors such as thermocouples or plati-
num resistance thermometers.
(2) DIP Switch
Used to set the temperature unit (°C or °F) and the number of decimal
places used.
(3) Rotary Switch
Used to set the temperature input range. Make the setting according to
the specifications of the temperature sensors that are connected.
(4) Expansion I/O Connecting Cable
Connected to the expansion connector of a CP1H CPU Unit or a CP-
series Expansion Unit or Expansion I/O Unit.The cable is included with
the Temperature Sensor Unit and cannot be removed.
Note Do not touch the cables during operation. Static electricity may
cause operating errors.
(5) Expansion Connector
Used for connecting CP-series Expansion Units or Expansion I/O Units.
(5) Expansion Connector
(1) Temperature Sensor Input Terminals
(Terminal block is not removable)
(4) Expansion I/O
Connector Cable
(3) Rotary Switch
(2) DIP Switch
