Installation and Initial Setup Section 9-8
Connecting the Cable
!Caution Turn OFF the PLC’s power supply before connection or disconnecting twisted-
pair cable.
!Caution Allow enough space for the bending radius of the twisted-pair cable.
1,2,3... 1. Lay the twisted-pair cable.
2. Connect the cable to the hub. Be sure to press in the cable until it locks into
place.
Request cable installation from a qualified professional.
3. Connect the cable to the connector on the Ethernet Option Board. Be sure
to press in the cable until it locks into place.
9-8-4 Web Browser Setting Function
The Ethernet Option Board’s system settings can be set using the Web
browser of a personal computer or other device. The Ethernet Option Board’s
Web window is displayed by accessing the following URL from the Web
browser.
English page: http://(Ethernet Option Board’s IP address)/E00.htm
Japanese page: http://(Ethernet Option Board’s IP address)/J00.htm
Chinese page: http://(Ethernet Option Board’s IP address)/C00.htm
In this example, use the following procedure to set the IP address using Inter-
net Explorer version 6.0 and the Ethernet Option Board’s English Web pages.

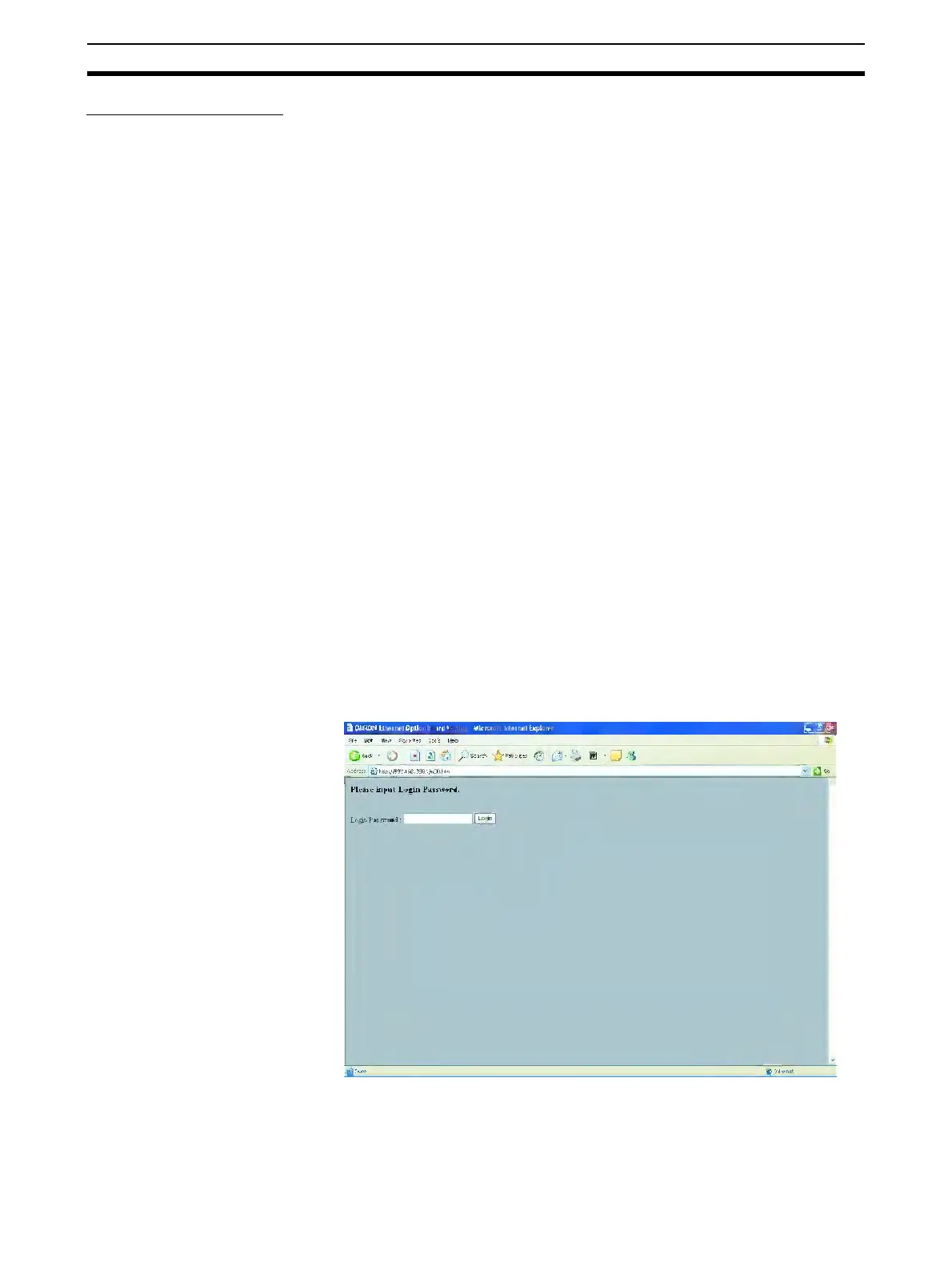

1,2,3... 1. Connect to the Ethernet Option Board from the Web browser using the
Ethernet Option Board’s default IP address.
http://192.168.250.1/E00.htm
To Next Page
