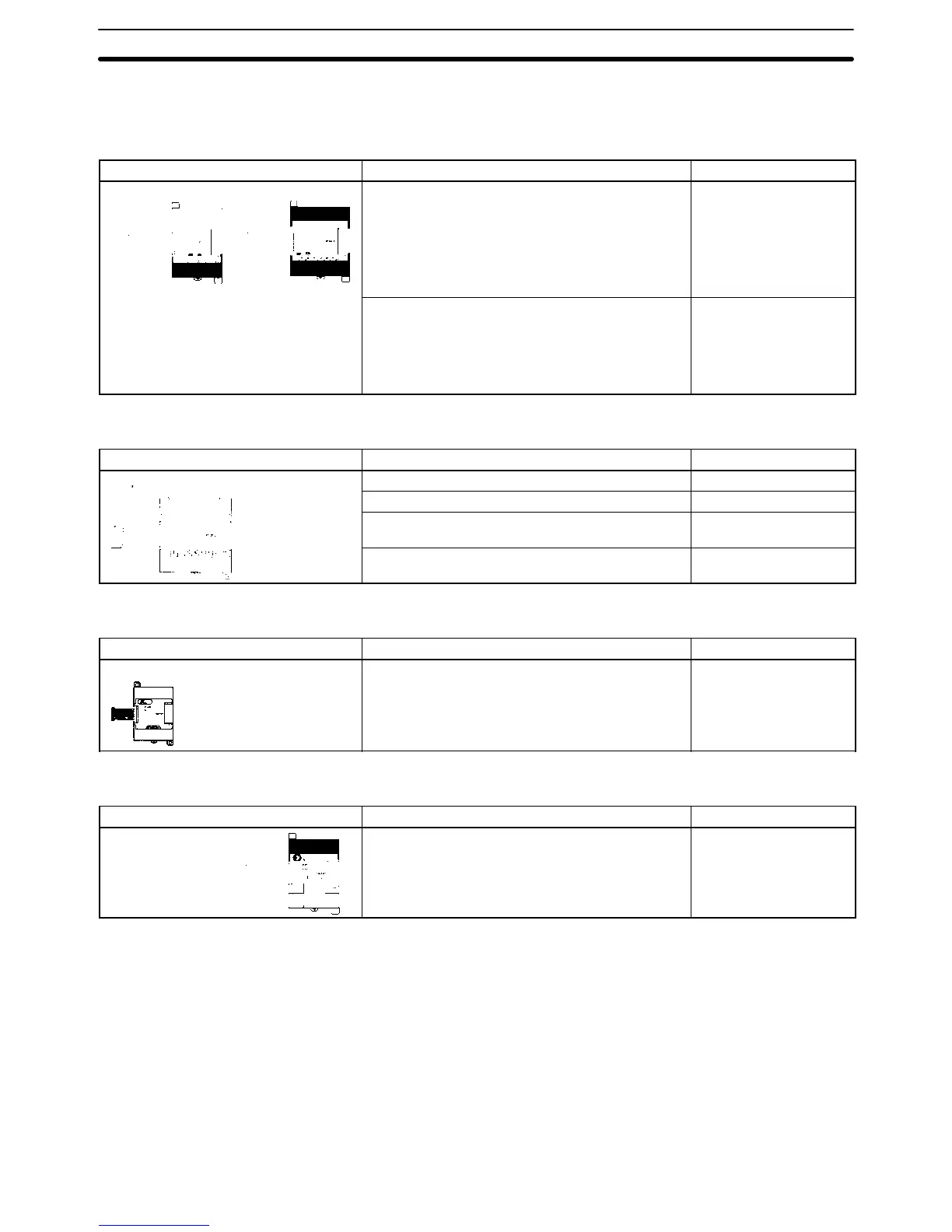

Appendix AStandard Models
156
Expansion Units
Analog I/O Units
Description Specifications Model number
Analog I/O Unit
2 analog inputs and 1 analog output
Input signal ranges: 0 to 10 V, 1 to 5 V, or
4 to 20 mA
Output signal ranges: 0 to 10 V, –10 to 10 V, or
4 to 20 mA,
Resolution of 1/256
CPM1A-MAD01
Input signal ranges: 0 to V 5, 0 to 10 V, 1 to 5 V,
–10 to 10 V, 0 to 20 mA, or 4 to 20 mA
Output signal ranges: 0 to 10 V, 1 to 5 V,
–10 to 10 V, 0 to 20 mA, or 4 to 20 mA
Resolution of 1/6,000
CPM1A-MAD11
Temperature Sensor Units
Description Specifications Model number
Temperature Sensor Unit
2 thermocouple inputs: K, J CPM1A-TS001
4 thermocouple inputs: K, J CPM1A-TS002
2 platinum resistance thermometer inputs:
Pt100 (100 Ω), JPt100 (100 Ω)
CPM1A-TS101
4 platinum resistance thermometer inputs:
Pt100 (100 Ω), JPt100 (100 Ω)
CPM1A-TS102
CompoBus/S I/O Link Unit
Description Specifications Model number
CompoBus/S I/O Link Unit Operates as a CompoBus/S Slave and provides 8
inputs and 8 outputs to the CPM1A or CPM2A PC.
CPM1A-SRT21
DeviceNet I/O Link Unit
Description Specifications Model number
DeviceNet I/O Link Unit Operates as a DeviceNet slave and is allocated 32
input points and 32 output points.
CPM1A-DRT21
