68

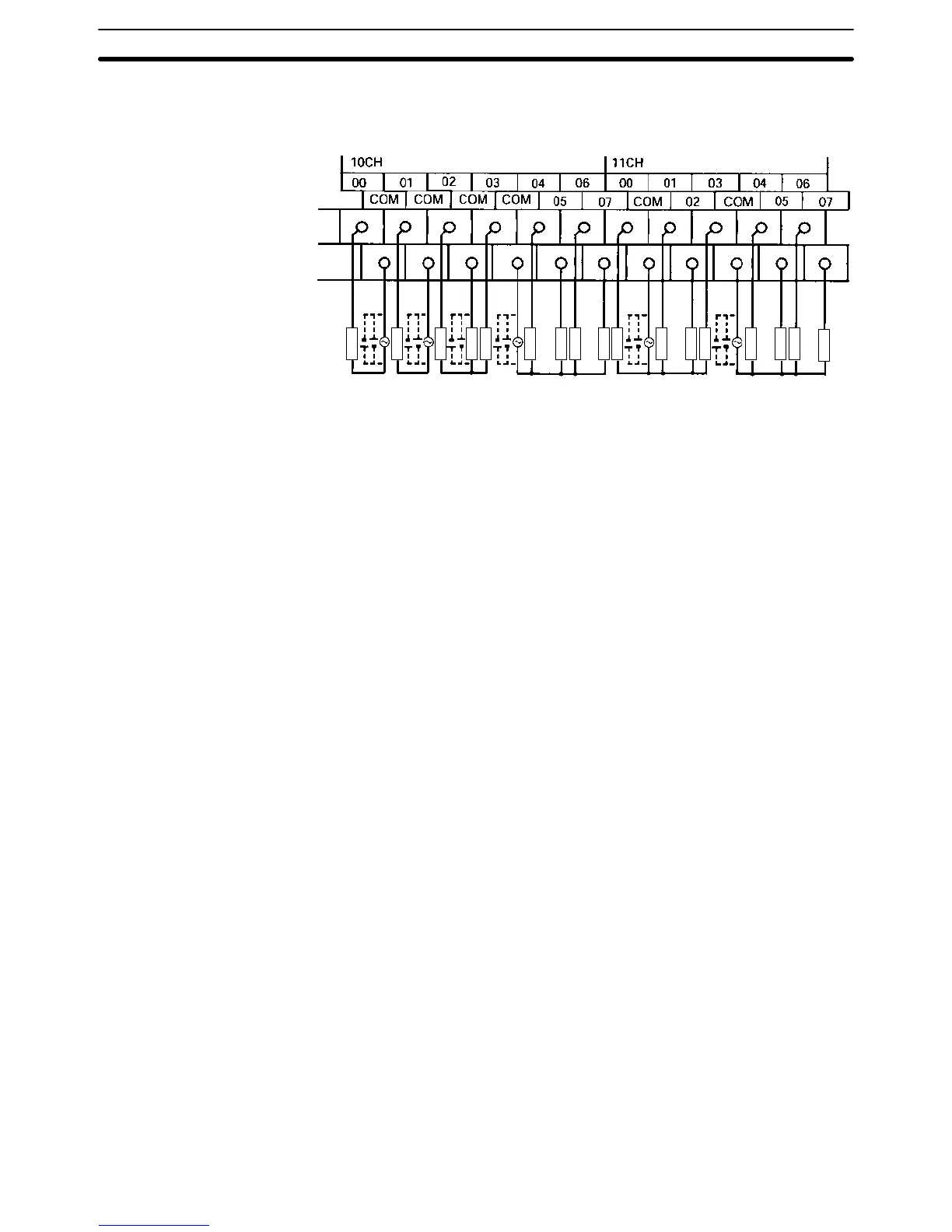

CPM2A-40CDR-j
Terminals 00 through 07 of “10CH” correspond to IR 01000 through IR 01007.
Terminals 00 through 07 of “11CH” correspond to IR 01100 through IR 01107.
250 VAC/
24 VDC
250 VAC/
24 VDC
250 VAC/
24 VDC
250 VAC/
24 VDC
250 VAC/
24 VDC
250 VAC/
24 VDC
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Wiring and Connections
Section 3-4
