CPM2A-40CDT-D

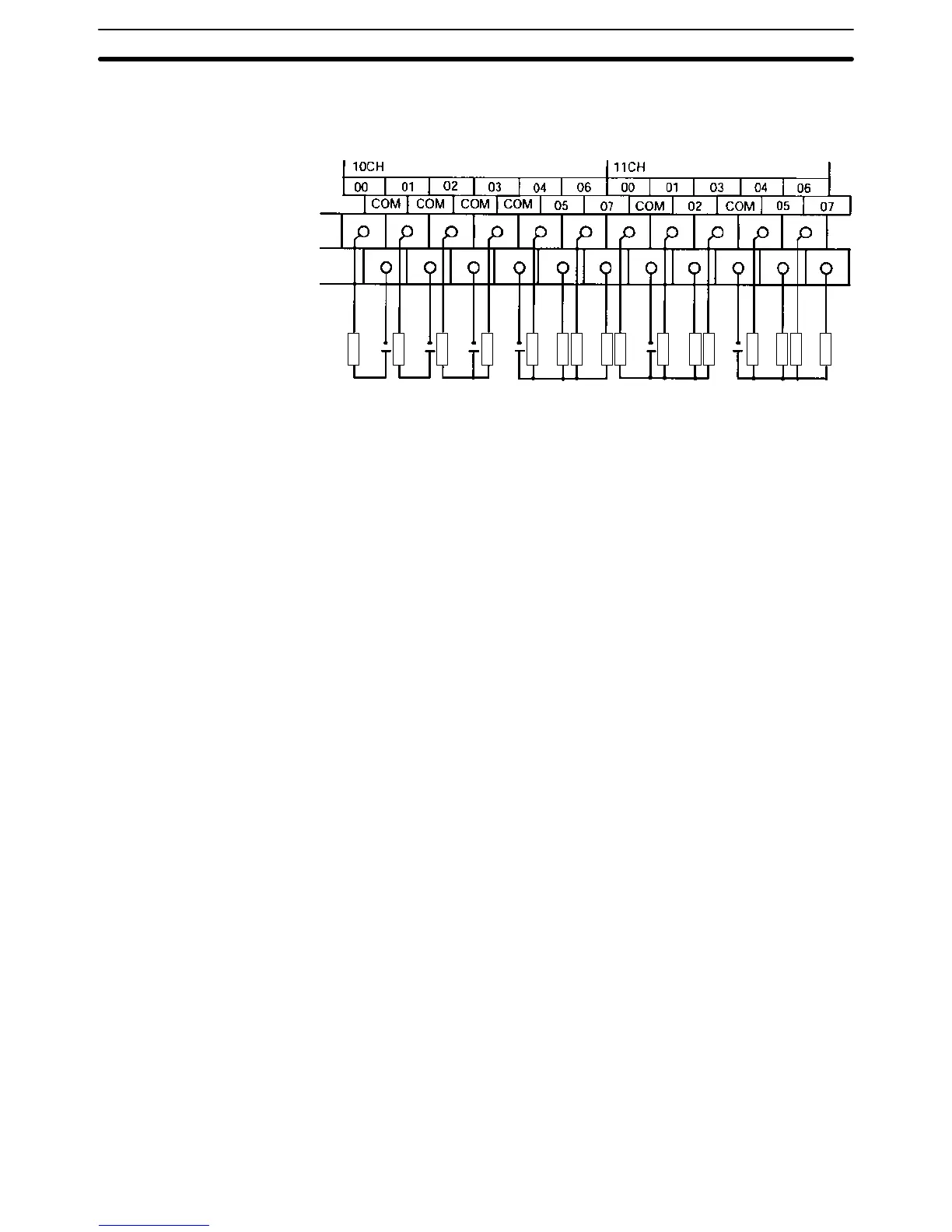

Terminals 00 through 07 of “10CH” correspond to IR 01000 through IR 01007.
Terminals 00 through 07 of “11CH” correspond to IR 01100 through IR 01107.
4.5 to
30 VDC
4.5 to
30 VDC
4.5 to
30 VDC
4.5 to 30 VDC 4.5 to 30 VDC 4.5 to 30 VDC
Load Load Load Load Load Load Load Load Load Load Load Load Load Load Load Load
Wiring and Connections
Section 3-4

Omron CPM2A - 11-2005 Specifications

General

Category	Controller
Manufacturer	Omron
Output Type	Relay
Input Voltage	24 VDC
Supply Voltage	100 to 240 VAC
Timer/Counter	256
Communication Port	RS-232
Operating Temperature	0 to 55°C
Humidity	10% to 90% RH (with no condensation)
Program Capacity	2048 Steps
