Transistor Output Wiring (Sinking)
Wire the outputs to the CPM2A’s CPU Unit and Expansion I/O Units as shown in
the following diagrams.
• Always use single wire or attach crimp terminals if a stranded wire is used.
• Don’t exceed the output capacity or the maximum common current. Refer to
2-1-3 I/O Specifications for details.
Item Specification
Output capacity OUT01000 and OUT01001: 200 mA (30 VDC)
OUT01002 and up: 300 mA (30 VDC)
Max. common capacity 0.8 A/common
Note Refer to Section 3 Memory Areas in the Programming Manual (W353) for details
on the allocation of output bits in CPM2A PCs.
Caution Double-check the polarity of the power supply for the load before turning it ON. If
the polarity is reversed, the load may malfunction or internal components may
be damaged.

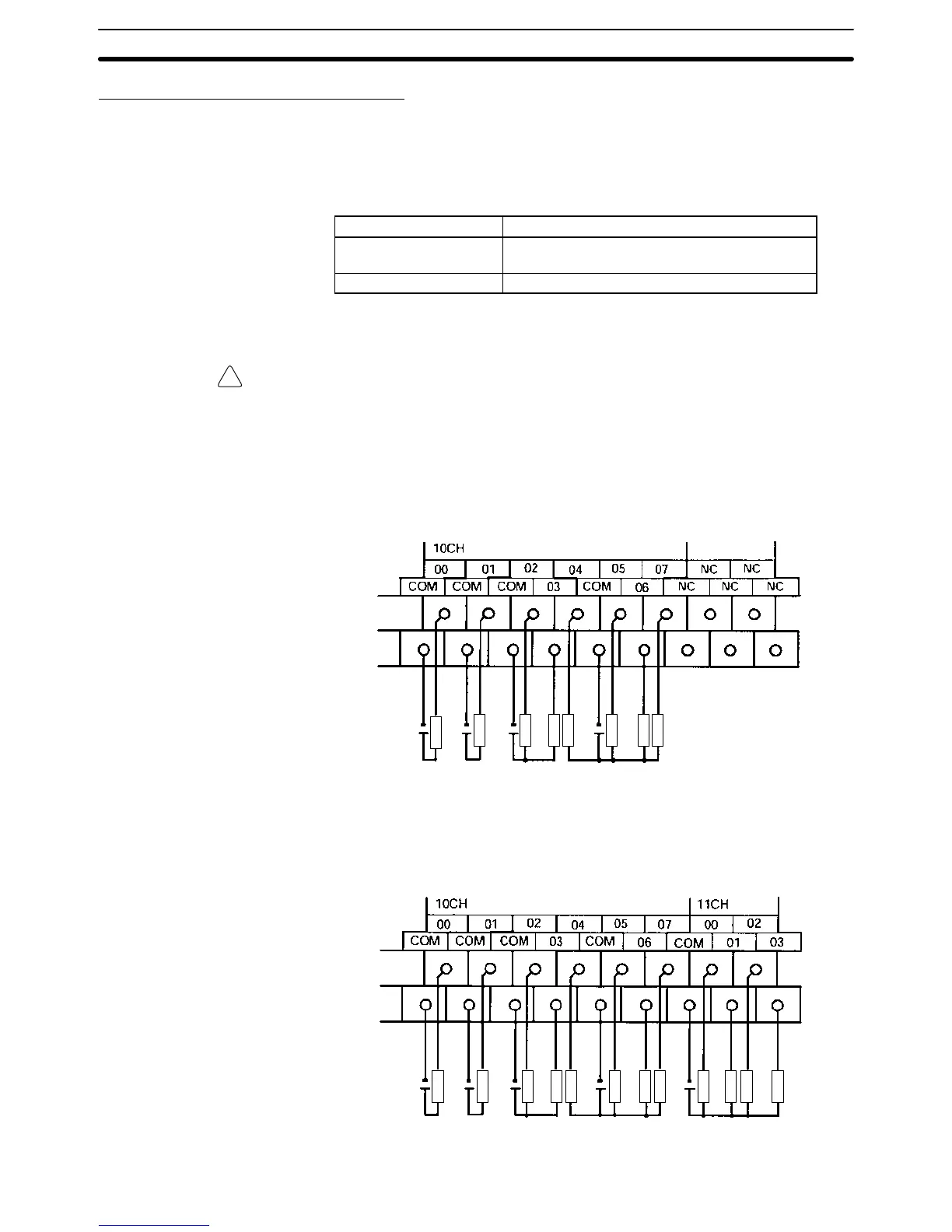

Output Configurations
CPM2A-20CDT-D
Terminals 00 through 07 of “10CH” correspond to IR 01000 through IR 01007.
4.5 to
30 VDC
4.5 to
30 VDC
4.5 to
30 VDC
4.5 to 30 VDC
Load Load Load Load Load Load Load
Load
CPM2A-30CDT-D
Terminals 00 through 07 of “10CH” correspond to IR 01000 through IR 01007.
Terminals 00 through 03 of “11CH” correspond to IR 01100 through IR 01103.
4.5 to
30 VDC
4.5 to
30 VDC
4.5 to
30 VDC
4.5 to 30 VDC 4.5 to 30 VDC
Load Load Load Load Load Load Load Load Load Load Load Load
Wiring and Connections
Section 3-4
