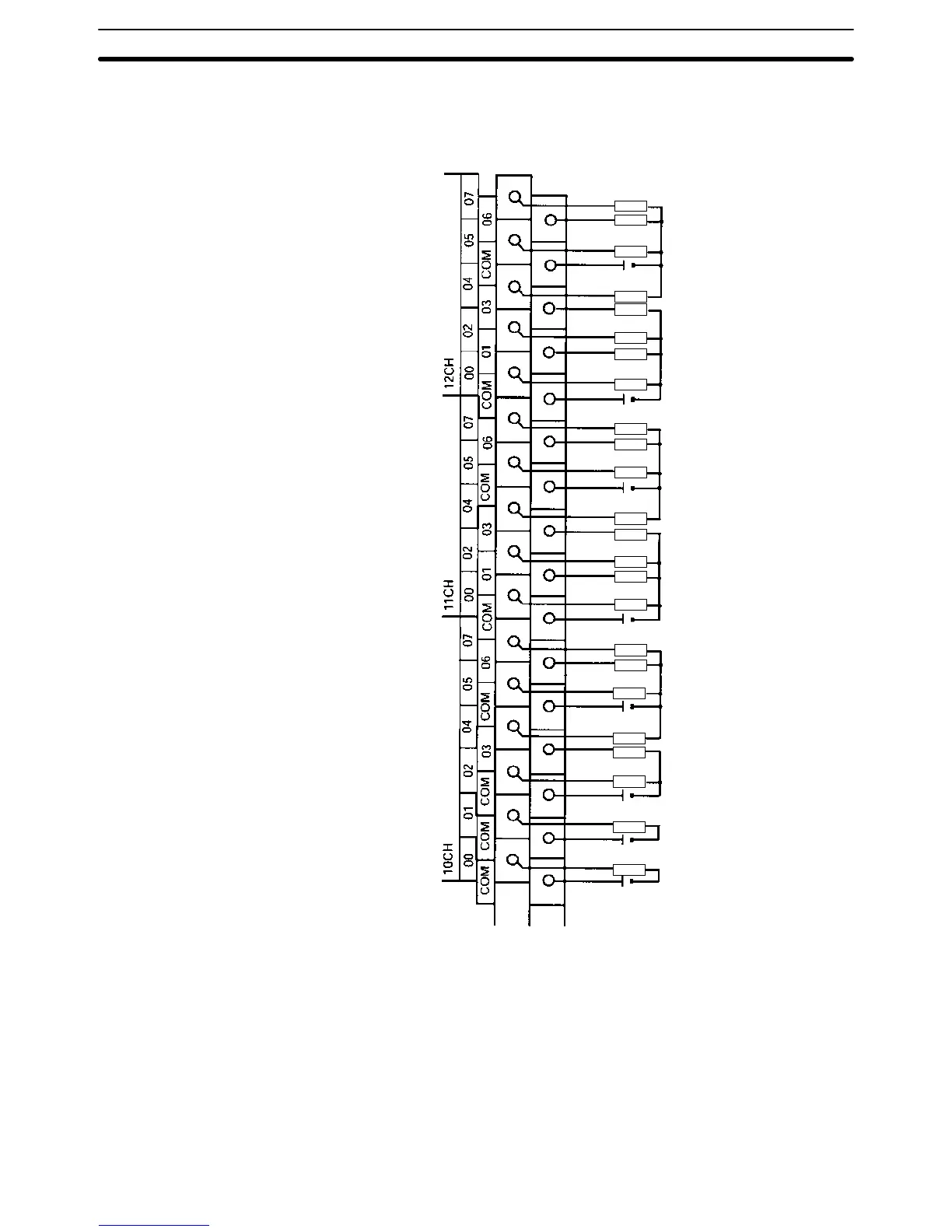

CPM2A-60CDT1-D
Terminals 00 through 07 of “10CH” correspond to IR 01000 through IR 01007.
Terminals 00 through 07 of “11CH” correspond to IR 01100 through IR 01107.
Terminals 00 through 07 of “12CH” correspond to IR 01200 through IR 01207.
4.5 to 30 VDC
4.5 to 30 VDC
4.5 to 30 VDC
4.5 to 30 VDC
4.5 to 30 VDC
4.5 to 30 VDC
4.5 to 30 VDC
4.5 to 30 VDC
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Wiring and Connections
Section 3-4
