78

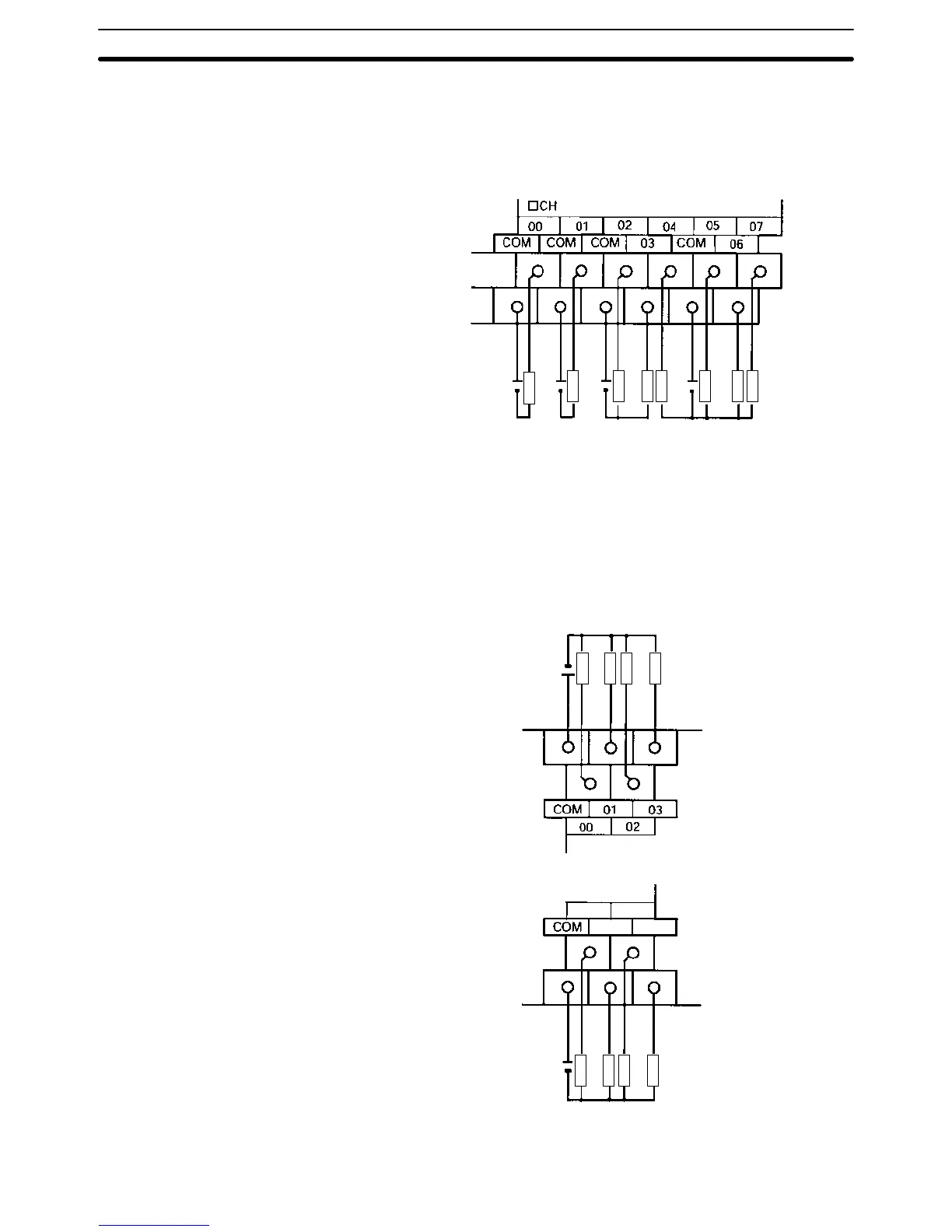

CPM1A-20EDT1
Terminals 00 through 07 of “1nCH” correspond to bits 00 through 07 of word
IR 1n.
24 VDC +10%/–15%
Load Load Load Load Load Load Load
Load
CPM1A-8ET1
Terminals 00 through 07 of “1nCH” correspond to bits 00 through 07 of word
IR 1n.
4.5 to 30 VDC
4.5 to 30 VDC
04
05
06
07
Load Load Load Load
Load Load Load Load
Wiring and Connections
Section 3-4
