133
Operating Procedure Section 4-2
Creating I/O Tables
After turning ON the power to the PLC, be sure to create the I/O tables.
Initial Data Settings
1,2,3... 1. Specify the Special I/O Unit DM Area settings. Refer to DM Allocation Con-
tents on page 145 for further details.

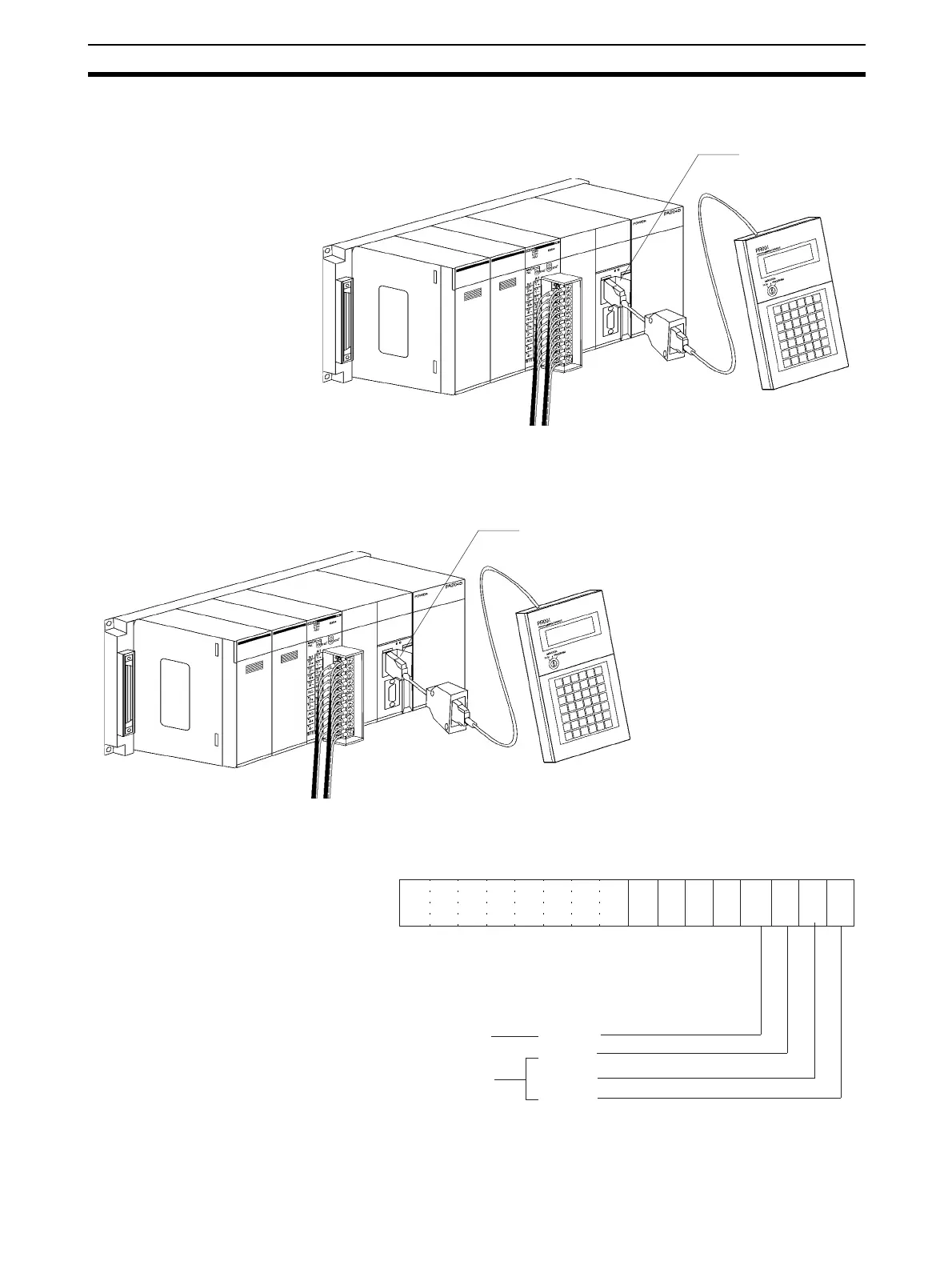

• The following diagram shows the output settings used. Refer to 4-6-1
Output Settings and Conversions for more details.
Peripheral port
Peripheral port
Setting conditions
Unit No. 1
Analog output 1: 1 to 5 V
Analog output 2: 1 to 5 V
Analog output 3: –10 to 10 V
Analog output 4: Not used.
15 14 13 12 11 10 09 08 07 06 05 01 0004 03 02
0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1
Bit
Not used Output 4
Output 3
Output 2
Output 1
Used
m: DM20100
(0007 Hex)
To Next Page
