3-6SectionConnecting to the Network
28
3-6 Connecting to the Network
3-6-1 Ethernet Network Installation
When installing an Ethernet network, be sure to take all appropriate safety mea-
sures and to follow the applicable standards (ISO 8802-3). You must obtain a
copy of these specifications and be sure you understand them before attempting
to install an Ethernet System. Unless you are already experienced in installing
communications systems, we strongly recommend that you employ a profes-
sional to install your system.
For information regarding basic installation precautions, equipment, recom-
mended products, and installation examples, refer to Appendix A Network
Installation.

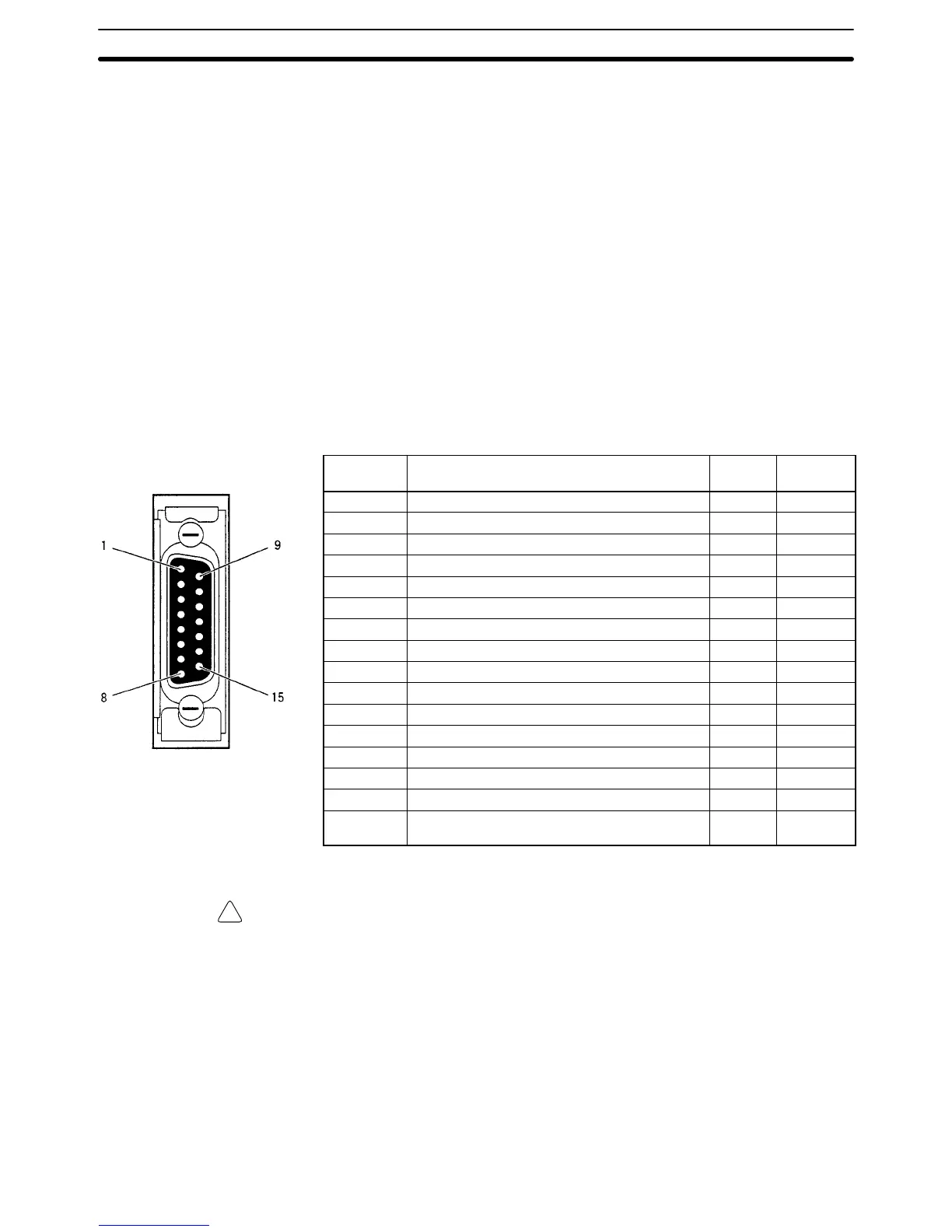

3-6-2 Ethernet Connectors
The following standards and specifications apply to the connectors for the Ether-
net transceiver cable.
• Electrical specifications: Conforming to IEEE802.3 standards.
• Lock structure: IEEE802.3 standards for slide latches
Connector
pin
Signal name Abbr. Signal
direction
1 Signal ground GND ---
2 Collision detection signal + COL+ Input
3 Send data + TX+ Output
4 Signal ground GND ---
5 Receive data + RX+ Input
6 Power ground (common with signal ground) VC ---
7 Not used --- ---
8 Signal ground GND ---
9 Collision detection signal – COL– Input
10 Send data – TX– Output
11 Signal ground GND ---
12 Receive data – RX– Input
13 Transceiver +12 VDC power supply +12 V Output
14 Signal ground GND ---
15 Not used --- ---
Connector
hood
Frame ground FG ---
3-6-3 Connecting the Transceiver Cable
Caution Turn OFF the PC’s power supply before connecting or disconnecting transceiv-
er cable.
1, 2, 3... 1. Prepare a coaxial cable.
2. Connect the transceivers to the coaxial cable.
• Mark the coaxial cable at intervals of 2.5 meters. Then connect the trans-
ceivers at those marks.
• The transceiver connection method depends on the type of transceiver, so
refer to the transceiver operation manual.
3. Prepare the transceiver cable, and then connect it to the transceivers.
For more details regarding these steps, refer to Appendix A Network Installation.
The cable preparation should be performed by an experienced professional.
