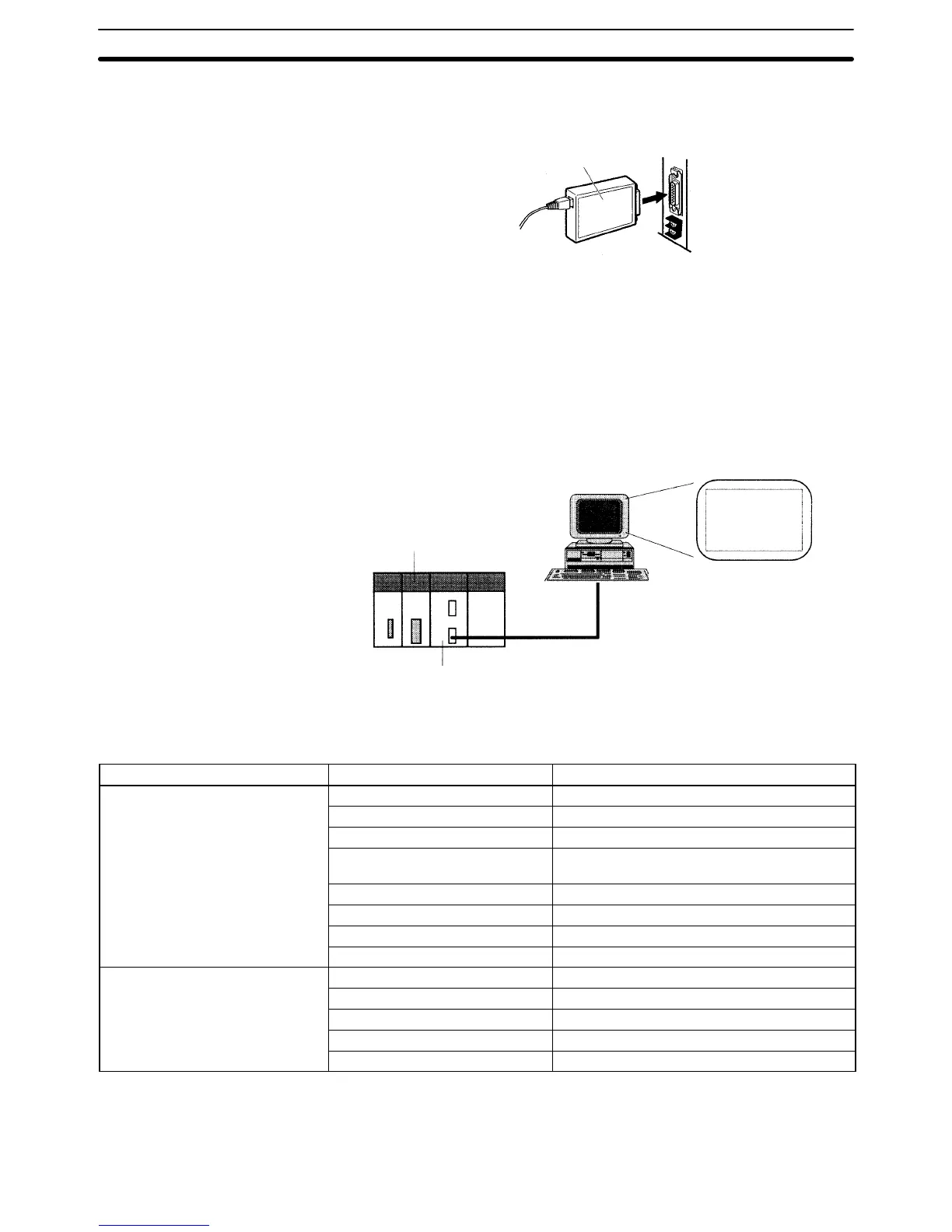

1-4SectionRelated Programming Devices
5
2. A 24-VDC power supply is required even if a 10BASE-T conversion adapter
is used.
10BASE-T conversion adapter
1-4 Related Programming Devices
The Ethernet Unit functions as a node on the Ethernet network. The basic set-
tings for operation are made in the CPU Bus Unit System Setup in the CS1-se-
ries CPU Unit. Use the CX-Programmer to make the settings.
Ethernet Unit
CS1-series CPU Unit
Personal computer running Windows
CX-Programmer
CPU Bus Unit
System Setup
Screen
The following items are included in the System Setup.
Screen Item Default
Setup Screen
Broadcast setting All 1 (4.3BSD specifications)
Address conversion method Automatic generation
FINS UDP port number 9600
Subnetwork mask 0.0.0.0 (Uses value corresponding to IP
address class.)
FTP login name CONFIDENTIAL
FTP password Not set.
IP address table Not set.
IP router table Not set.
Mail Setup Screen
Mail settings None set.
User-created mail data address Not set.
Local node address Not set.
Destination address Not set.
SMTP server address 0.0.0.0 (Not set.)
When using the default values that are already stored in the CS1-series CPU
Unit, there is no need to make any settings with the CX-Programmer. Refer to
4-2 CPU Bus Unit System Setup for details on the above settings.
