1-2SectionSystem Configuration
3
1-2 System Configuration

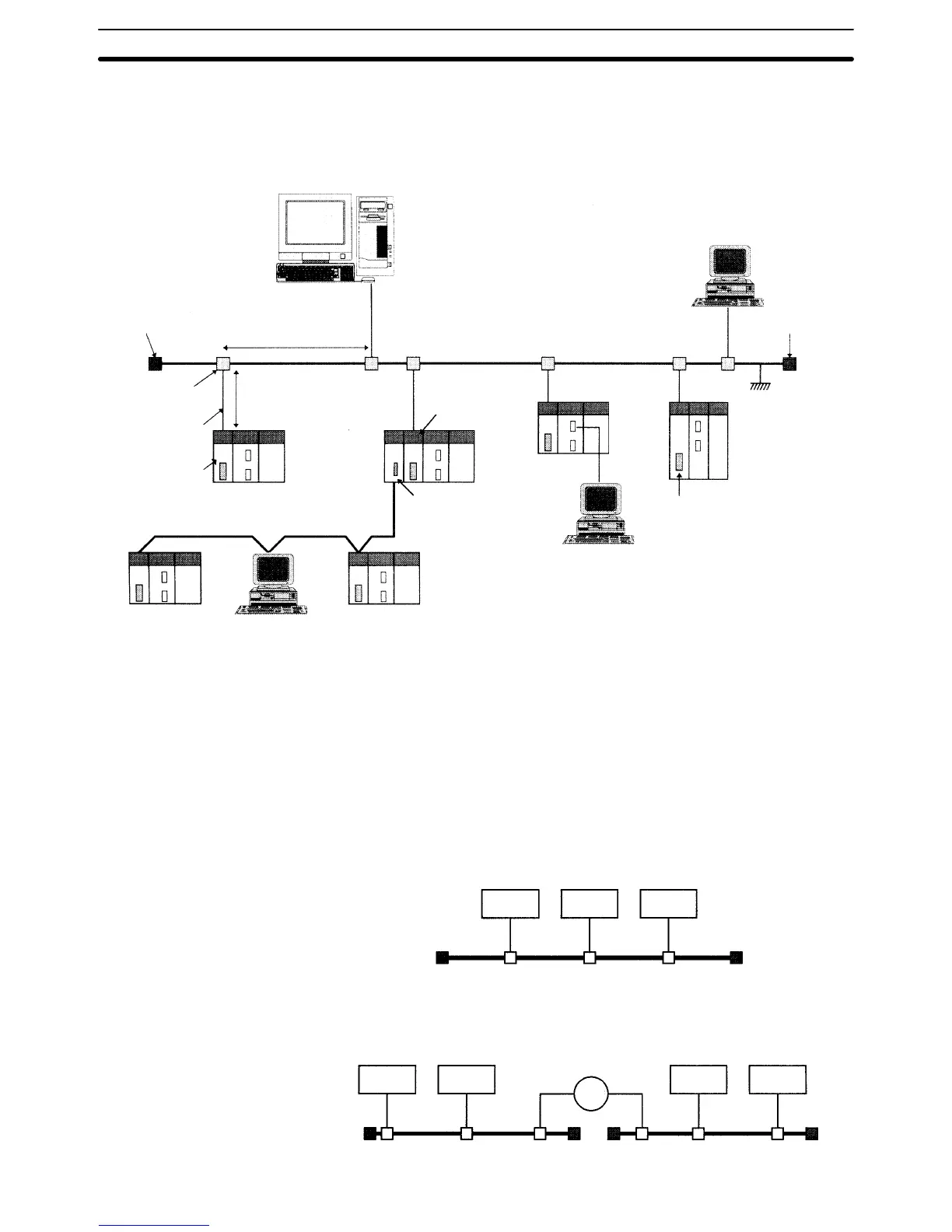

1-2-1 Device Configuration
Workstation or personal computer
CX-Programmer
Terminator
Between nodes:
Integral multiples of 2.5 m
Transceiver
Transceiver cable
50 m max.
CS1-series PC
Controller Link network
C200HX/HG/HE PC
CS1 Ethernet Unit
Ethernet (10 Mbps)
500 m/segment max.
10BASE5 coaxial cable
(or 10BASE-T twisted-pair cable)
Terminator
CS1 Ethernet Unit
CS1-series
PC
CVM1/CV-series
PC
CVM1/CV Ethernet Unit
CX-Programmer
CS1-series
PC
CS1-series PC
FA computer
CS1 Controller Link Unit
Ground
Note 1. Transmission distance (from Terminator to Terminator):
500 meters/segment max.
2. When segments are indirectly connected by a repeater: 2.5 km/network
3. Node interval (from transceiver to transceiver): Integral multiples of 2.5 m
4. Transceiver cable length: 50 m max.
1-2-2 Node Connections
Minimal Configuration: 1 Segment
Node Node Node
Use repeaters to extend the distance between nodes or to increase the number
of connected nodes.
Node Node
Node Node
Repeater
Configuration With
Segment Extension
