Omron CS1W-ETN01 User Manual

11-3SectionCommand/Response Reference
195

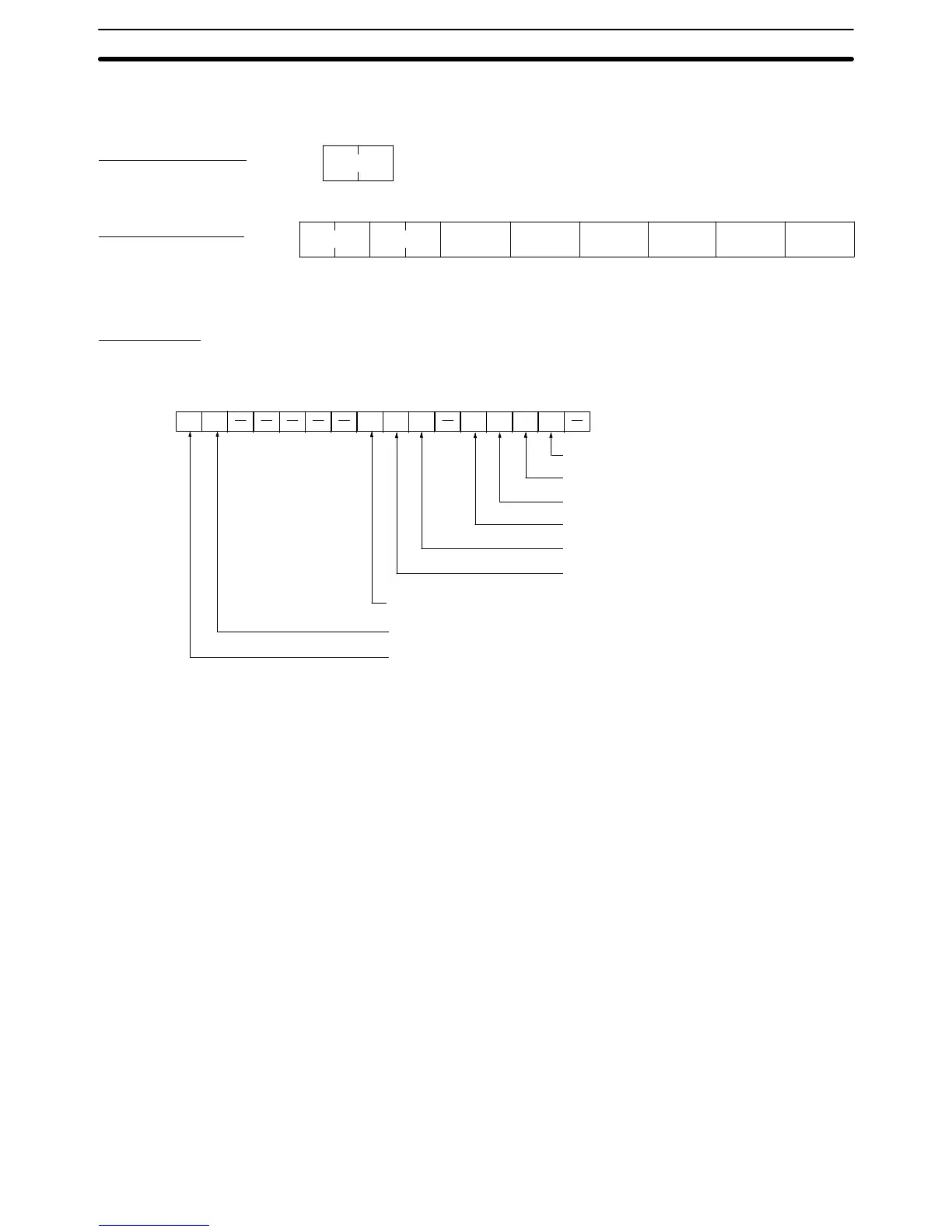

11-3-3 CONTROLLER STATUS READ
Reads the controller status.
Command Block
0106
Command
code
Response Block
4 bytes 4 bytes
0106
4 bytes 4 bytes 4 bytes
Command
code
Response
code
Total
number of
packets
received
Total
number of
receive
errors
Total
number of
packets
sent
Total
number
of errors
sent
Total
number
of send
collisions
Error flags
2 bytes
Parameters
Error Flags (Response) Indicates the operating status and errors that occurred when the Ethernet Unit
was started.
Bit 01: Transceiver echo test error
Bit 02: IP address error
Bit 03: IP address table error
Bit 04: IP router table error
Bit 06: Routing table error
Bit 07: Transceiver error
Bit 08: Internode test flag (OFF: Test stopped, ON: Test running)
Bit 14: Address disagreement
Bit 15: EEPROM error
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
The cause of each error is listed below.
Transceiver Echo Test Error
An error occurred during the self diagnostic testing after the Unit was turned on
or reset.
IP Address Error
All bits for the network number or host number are set to 0 or 1.
IP Address Table Error
More than 32 records exist in the IP address table.
IP Router Table Error
More than 8 records exist in the IP router table.
Routing Table Error
Local network table contains 0 or more than 16 records.
Relay network table contains more than 20 records.
Transceiver Error
The transceiver cable is disconnected or the transceiver is defective.
Address Disagreement
The address conversion method was set for automatic generation, but the node
number and the last byte of the local IP address do not agree, or other host sec-
tions are 0.
EEPROM Error
An error occurred in the EEPROM memory in the Ethernet Unit.
