11-3SectionCommand/Response Reference
194
Parameters
Model, Version (Response) The Ethernet Unit mode and version are returned as ASCII characters occupy-
ing 20 bytes each (i.e., 20 characters each). If all bytes are not used, the remain-
ing bytes will be all spaces (ASCII 20 Hex).
Example Model: CS1W-ETN01
Version: V1.00
The Ethernet Unit’s IP address and subnet mask are returned as 4 bytes each.
The Ethernet Unit’s UDP port number for FINS is returned as 2 bytes.

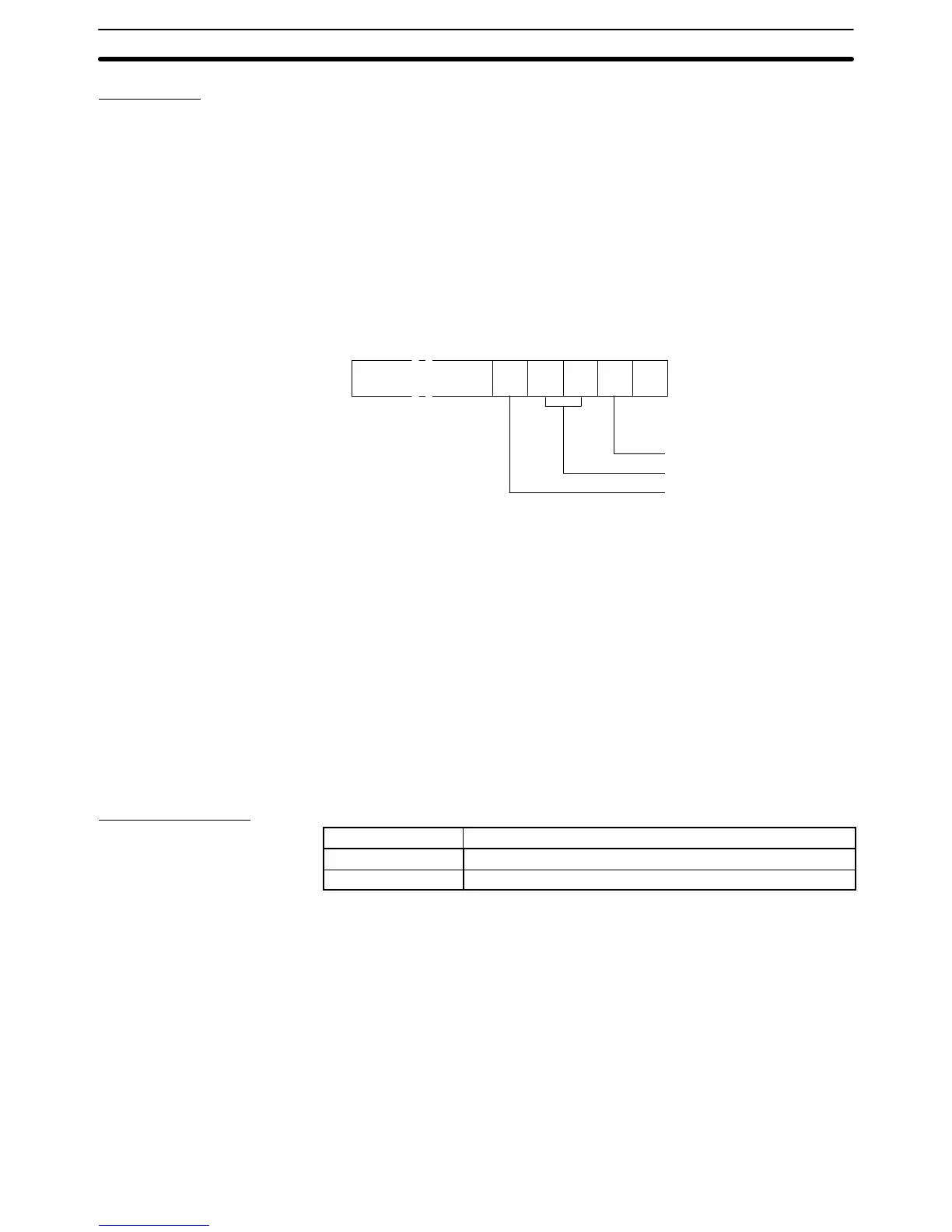

Mode Setting (Response) The mode setting in the system setup is returned.
Others all 0
Broadcast setting
IP address conversion
FINS UDP port number
designation
00Bit 15
Broadcast Setting
0: All 1s for host number (4.3BSD specification)
1: All 0s for host number (4.2BSD specification)
IP Address Conversion
00, 01: Automatic generation
10: IP address table
11: Both methods (IP address table + automatic generation)
FINS UDP Port Number Designation
0: Default value (9600)
1: System setup value
Ethernet Address (Response) The Ethernet address of the Ethernet Unit is returned. The Ethernet address is
the address marked on the label on the side of the Ethernet Unit.
Response Codes
Response code Description
0000 Normal
1001 Command too large
IP Address, Subnet Mask
(Response)
FINS UDP Port Number
(Response)
