■ Communications Characteristics
■ Other Upgrades
Previous models Upgraded models
Communications
access size
Double word access only Word access and double word access
CompoWay/F services --- Composite Read from Variable Area and Com-
posite Write to Variable Area
Communications buffer
size
40 bytes 217 bytes
Baud rate 38.4 kbps max. E5GN: 19.2k max. 57.6 kbps max.
Setup Tool Cable Communications: 38.4k (fixed)
External communica-
tions
RS-485/RS-232C external communications
and Setup Tool communications cannot be
used at the same time.
RS-485/RS-232C external communications and
Setup Tool communications can be used at the
same time.

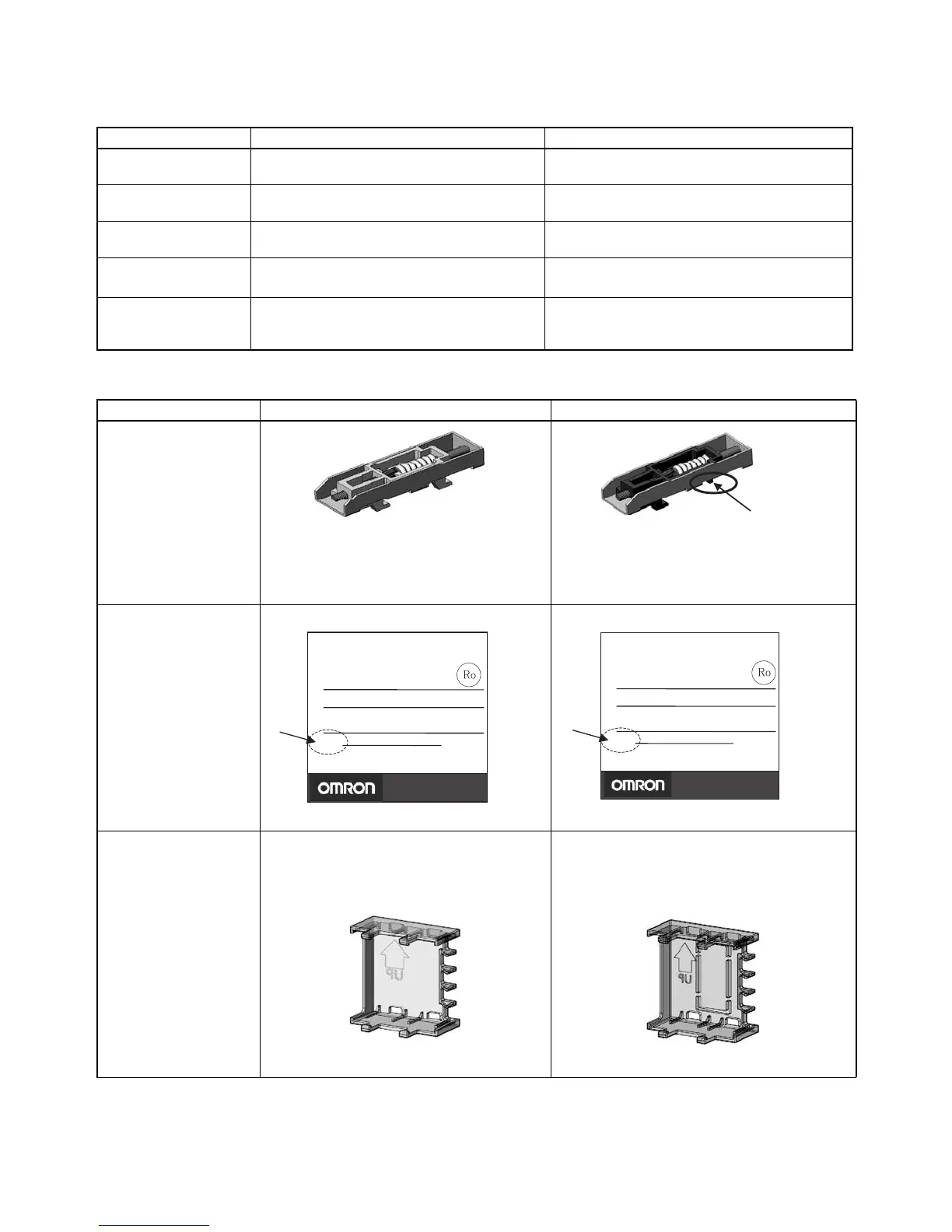

Previous models Upgraded models
Mounting Bracket
(E5AN/EN only)
Note The Mounting Bracket for the previous
models cannot be used for upgraded
models.
Packing case
(E5AN/EN only)
• Previous ID code: N5 • New ID code: N6
Terminal Cover (sold
separately) for E5CN
• E53-COV10 (for E5CN only) • E53-COV17 (for E5CN only)
Note The Terminal Cover for the previous
models cannot be used for improved
models.
Mounting Bracket for previous models
Mounting Bracket for upgraded models
Modified section
TYPE
E5CN T
TEMP.
MULTI- RANGE
VOLTS
100- 240 VAC
N5 LOT No.**** QYT.1
TYPE E5AN-R3MT-500
TEMPERATURE CONTROLLER
TEMP.
MULTI-RANGE
VOLTS
100-240 VAC
OMRON Corporation MADE IN CHINA
N5
LOT No.∗∗∗∗ QYT.1
TYPE
E5CN-R2T
TEMP.
MULT I- RANGE
VOLTS
100- 240 VAC
OMRON Corporation MADE IN CHIN
N6 LOT No.**** QYT.1
TYPE E5AN-R3MT-500-N
TEMP.
MULTI-RANGE
VOLTS
100-240 VAC
OMRON Corporation MADE IN CHINA
N6
LOT No.∗∗∗∗ QYT.1
TEMPERATURE CONTROLLER
