29
Installation Section 2-1
E5AN/EN

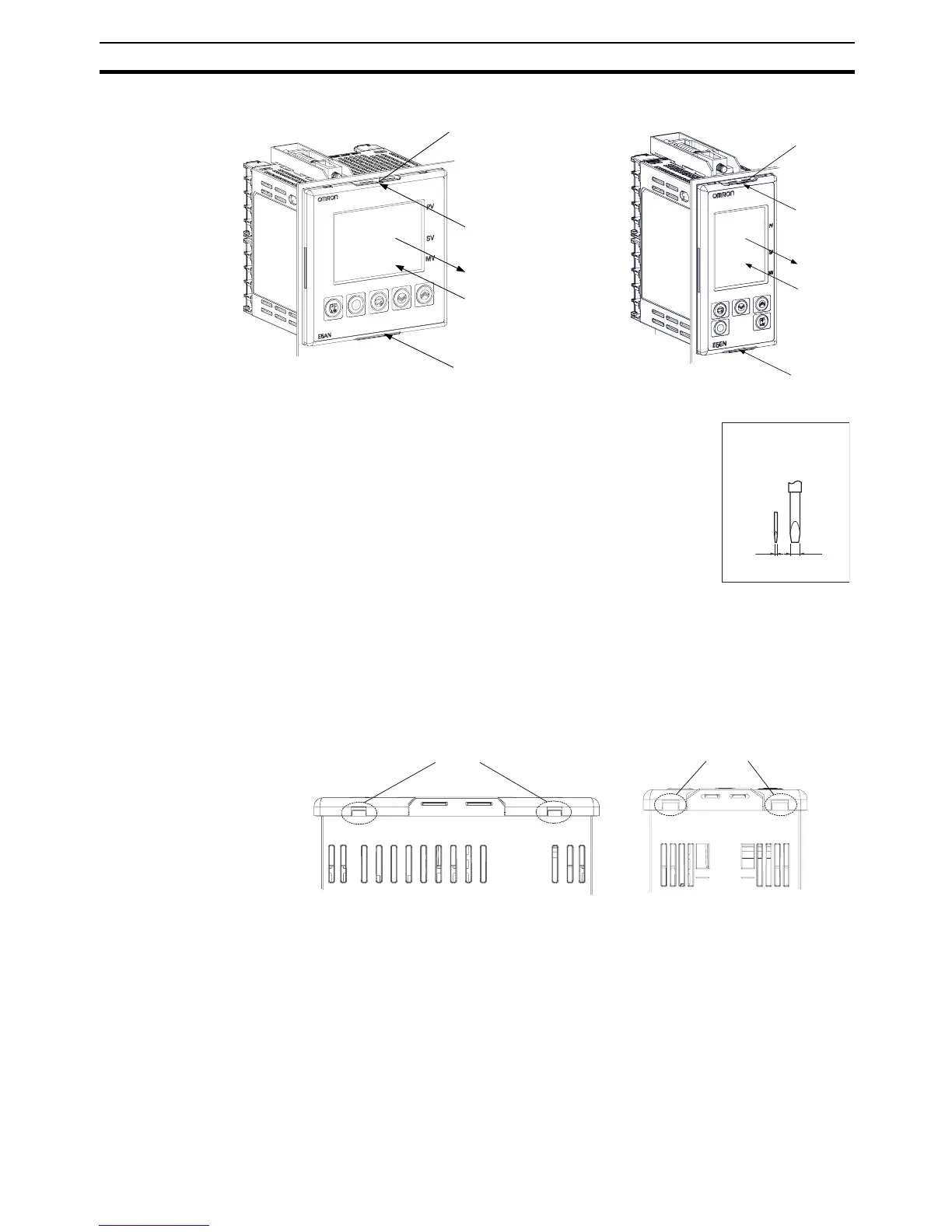

1,2,3... 1. Insert a flat-blade screwdriver into the two tool insertion holes (one on the
top and one on the bottom) to release the hooks.
2. Insert the flat-blade screwdriver in the gap between the front panel and
rear case (two on the top and two on the bottom), and use it to pry and pull
out the front panel slightly. Then, pull out on the front panel gripping both
sides. Be sure not to impose excessive force on the panel.
E5AN E5EN
(1)
(2)
(3)
(1)
Tool insertion hole
(1)
(2)
(3)
(1)
Tool insertion hole
2.00.4 5.0
Flat-blade screwdriver
(Unit: mm)
Gap between the Front Panel and Rear Case
Four gaps, two on the top and two on the bottom
To
p
View of E5AN
Gap between the Front Panel and Rear Case
Four gaps, two on the top and two on the bottom
To
p
View of E5EN
