30
Installation Section 2-1

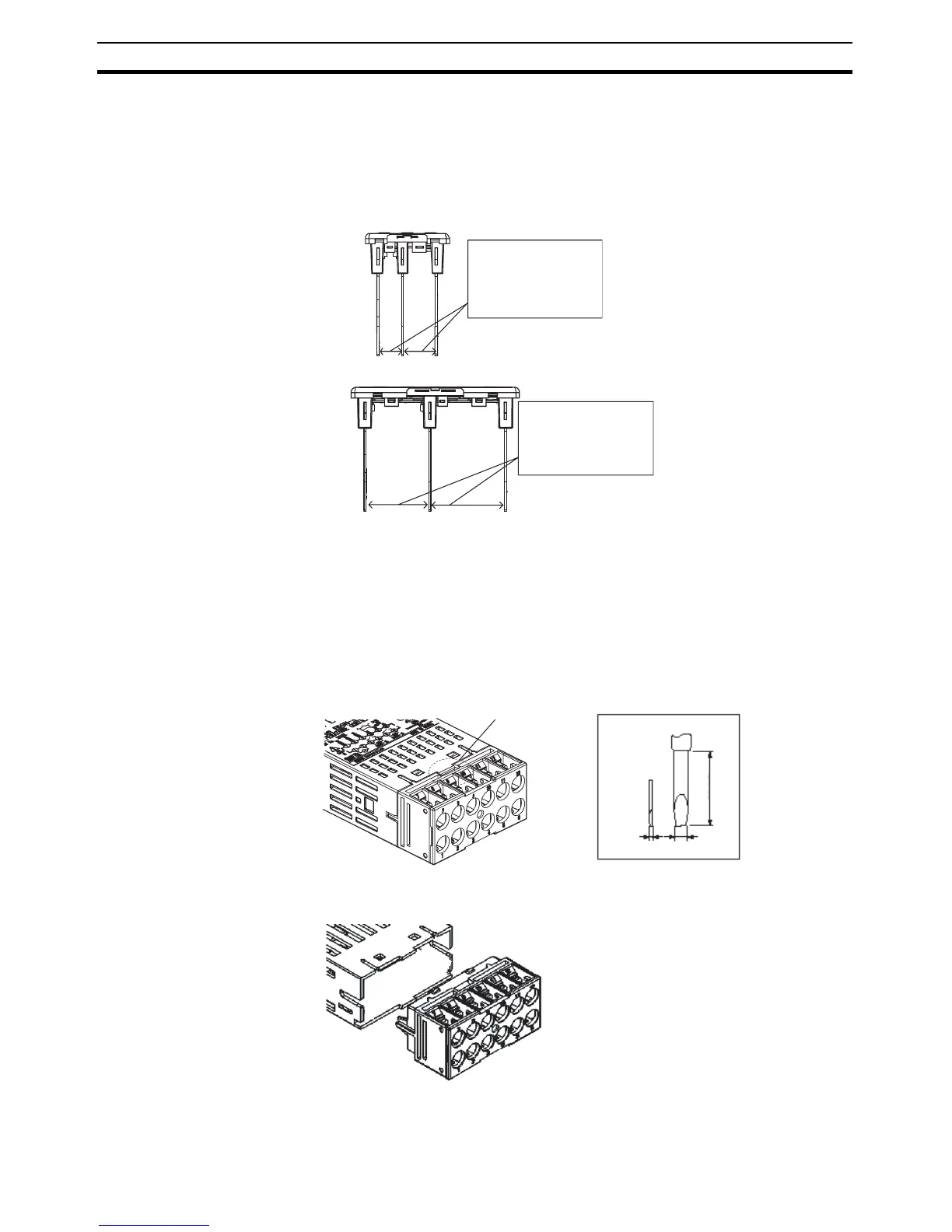

3. When inserting the body of the Temperature Controller into the case, make
sure the PCBs are parallel to each other, make sure that the sealing rubber
is in place, and press the E5AN/EN toward the rear case until it snaps into
position. While pressing the E5AN/EN into place, press down on the hooks
on the top and bottom surfaces of the rear case so that the hooks securely
lock in place. Make sure that electronic components do not come into con-
tact with the case.
Removing the Terminal
Block
The terminal block can be removed from the E5GN. It is not possible for the
E5CN, E5AN, E5EN, and E5CN-U.
E5GN The body of the Controller can be replaced by removing the terminal block
from the E5GN.
1,2,3... 1. Insert a flat-blade screwdriver into the tool holes (one on the top and one
on the bottom) to release the hooks. Do not apply excessive force.
2. Pull the terminal block out while the hooks are released.
Note The method for removing the terminal block is the same for both screw termi-
nal blocks and screwless clamp terminal blocks.
Make sure the PCBs are
parallel to each other, and
then press the body of the
Temperature Controller
toward the rear case until
it snaps into position.
Bottom View of the E5EN
Make sure the PCBs are
parallel to each other, and
then press the body of the
Temperature Controller
toward the rear case until
it snaps into position.
Bottom View of the E5AN
20 min.
200.4
Flat-blade screwdriver
(Unit: mm)
Terminal hole
