6 Programless Communications
6 - 46
E5@C Digital Temperature Controllers Communications Manual (H175)

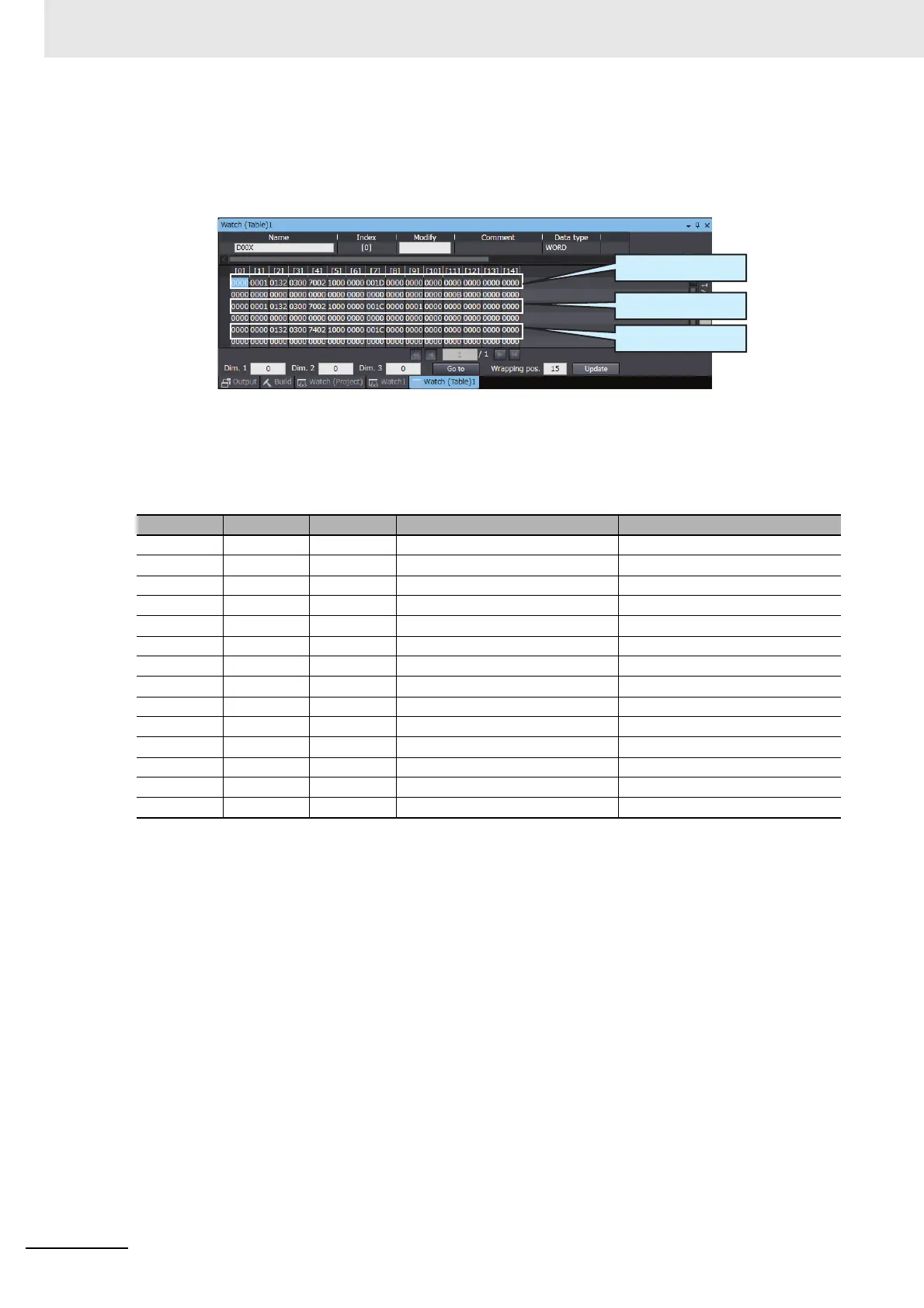

(5) Check the value of parameters set in the upload area.
D000 to D014 is the upload area for the No. 0 Controller (E5CC), D030 to D044 is the
upload area for the No. 1 Controller, and D060 to D074 is the upload area for the No. 2
Controller.
With the default settings, the following parameters are set for the upload areas.
Check the values in the upload area to see if they are the same as those that are given in
the following table.
(It is not necessary to check addresses for which “---” is given in the Value column.)
* If the default settings are used and a sensor is not connected, the PV display on the E5CC will show an input
error and the process value in the upload area will be 1320 (528 hex).
No.0 No.1 No.2 Parameter Value
D000 D030 D060 Response Flag (fixed) 0
D001 D031 D061 Communications Status (fixed) Alternates between 0 and 1.
D002 D032 D062 Communications Monitor ---
D003 D033 D063 Status (Upper Word) ---
D004 D034 D064 Status (Lower Word) ---
D005 D035 D065 Status 2 (Upper Word) ---
D006 D036 D066 Decimal Point Monitor ---
D007 D037 D067 PV PV*
D008 D038 D068 Internal Set Point ---
D009 D039 D069 Heater Current 1 Value Monitor ---
D010 D040 D070 MV Monitor (Heating) ---
D011 D041 D071 Spare ---
………… …
D014 D044 D074 Spare ---
No.1 (D000 to D014)
No.2 (D030 to D044)
No.3 (D060 to D074)
To Next Page
