6 - 47
6 Programless Communications
E5@C Digital Temperature Controllers Communications Manual (H175)
6-6 Connecting to the NX1P2
6
6-6-5 Checking Operation
Changing E5CC Settings
(1) Initialize the download areas with the set values from the E5CC Controllers.
The download areas have not been initialized, so we will initialize them with the set values
from the E5CC Controllers.

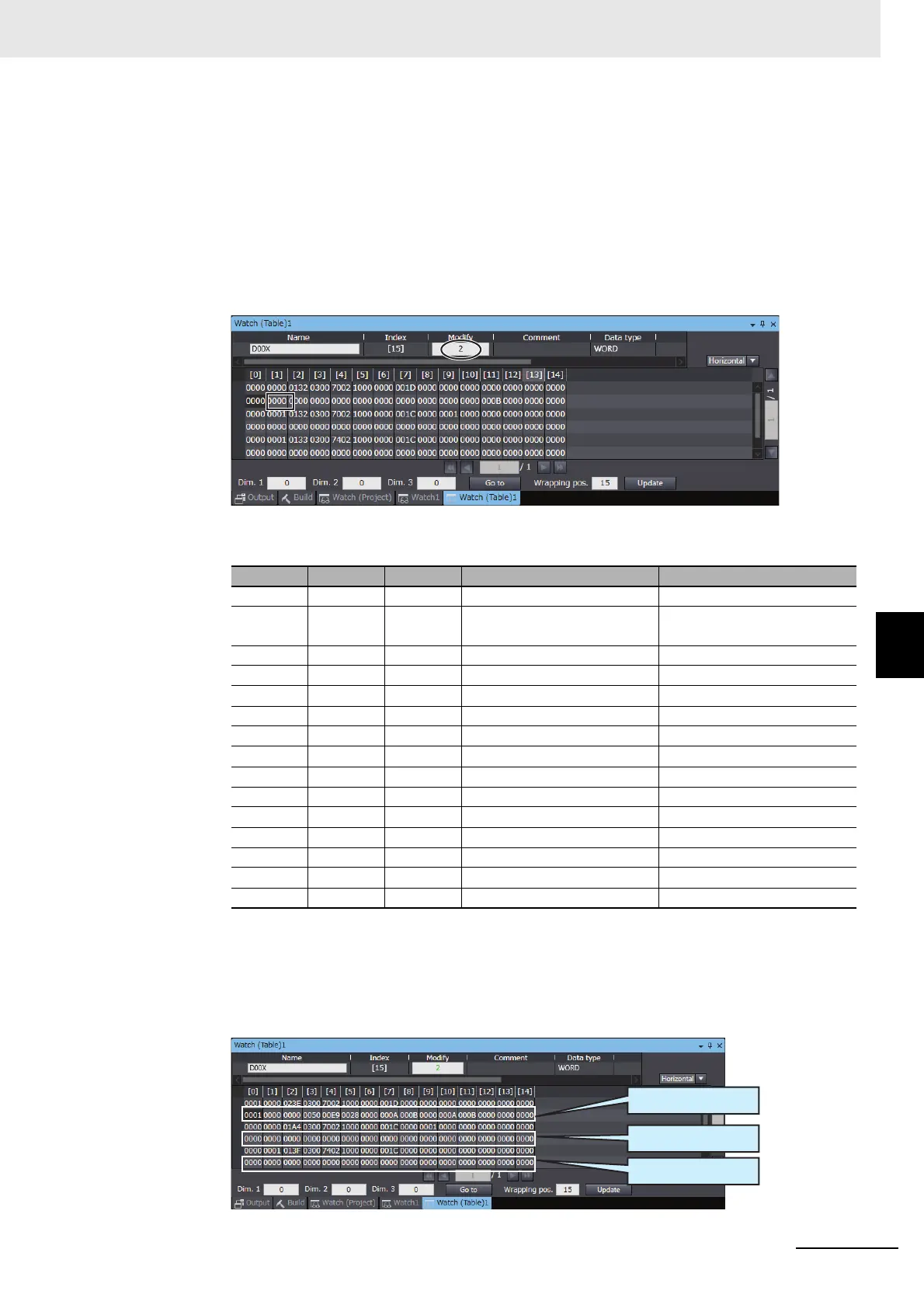

Enter 2 (download area initialization) as the value of D015 (Request Flag) in the Watch Tab
Page and press the Enter Key. D015 to D029 is the download area for the No. 0 Controller
(E5CC), D045 to D059 is the download area for the No. 1 Controller, and D075 to D089 is
the download area for the No. 2 Controller.
The following parameters are displayed in the download area for the default settings.
(2) Confirm that the download areas have been initialized.
When initialization is completed, D000 (Response Flag) will change to 1 (Normal End) and
D015 (Request Flag) will automatically change to 1 (Enable Writing). Check the download
areas to see if they have been initialized to the values given in the above table.
No.0 No.1 No.2 Parameter Value
D015 D045 D075 Request Flag (fixed) 1 (0001 hex)
D016 D046 D076 Operation Command Code
(fixed)
0 (0000 hex)
D017 D047 D077 Set Point 0 (0000 hex)
D018 D048 D078 Proportional Band 80 (0050 hex)
D019 D049 D079 Integral Time 233 (00E9 hex)
D020 D050 D080 Derivative Time 40 (0028 hex)
D021 D051 D081 Alarm Value 1 0 (0000 hex)
D022 D052 D082 Alarm Value Upper Limit 1 0 (0000 hex)
D023 D053 D083 Alarm Value Lower Limit 1 0 (0000 hex)
D024 D054 D084 Alarm Value 2 0 (0000 hex)
D025 D055 D085 Alarm Value Upper Limit 2 0 (0000 hex)
D026 D056 D086 Alarm Value Lower Limit 2 0 (0000 hex)
D027 D057 D087 Heater Burnout Detection 1 0 (0000 hex)
D028 D058 D088 PV Input Shift 0 (0000 hex)
D029 D059 D089 SP Ramp Set Value 0 (0000 hex)
No.1 (D015 to D029)
No.2 (D045 to D059)
No.3 (D075 to D089)
To Next Page
