17
Overview of System Startup Procedure Section 2-1

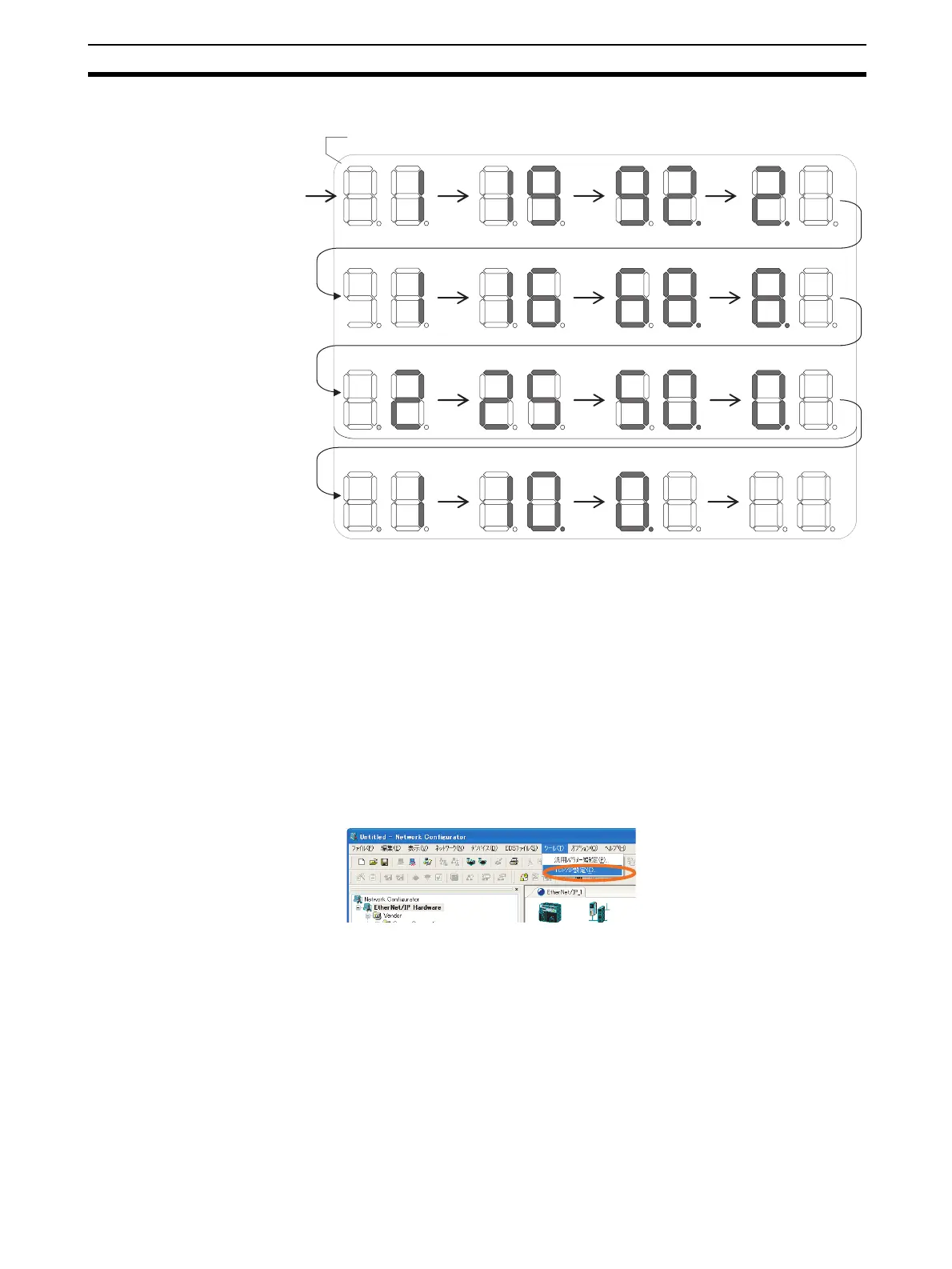

Example 1: Displaying IP Address 192.168.250.10
2. Set the address of the EtherNet/IP Unit
Refer to Common Procedure 4. Connecting the Network Online. For de-
tails on setting IP addresses using the Network Configurator (CIP messag-
es), refer to Common Procedure 6-2. When setting the IP addresses using
a BOOTP server, refer to Common Procedure 6-3.
3. Operation after Completing the Setting
If an F3 error occurs after setting the IP address, set the node switches on
the front of the EtherNet/IP Unit to the hexadecimal equivalent of the low-
order digit of the IP address.
Common Procedure 6-2. Setting IP Addresses Using the Network Configurator
1,2,3... 1. Select Tools
−
Setup TCP/IP Configuration to open the Setup TCP/IP
Configuration Dialog Box.
2. Input the IP address of the device that is to be changed in the Tar ge t IP
Address Box.
Click the Get from the Device Button to get the current settings.
Change the IP address or subnet mask, and then click the Set to the De-
vice Button. The new settings will be written to the device.
The IP address is displayed in decimal, flowing from right to left.
To Next Page
