36
Overview of System Startup Procedure Section 2-1
• ERT1-OD32SLH-1
• ERT1-MD32SLH-1

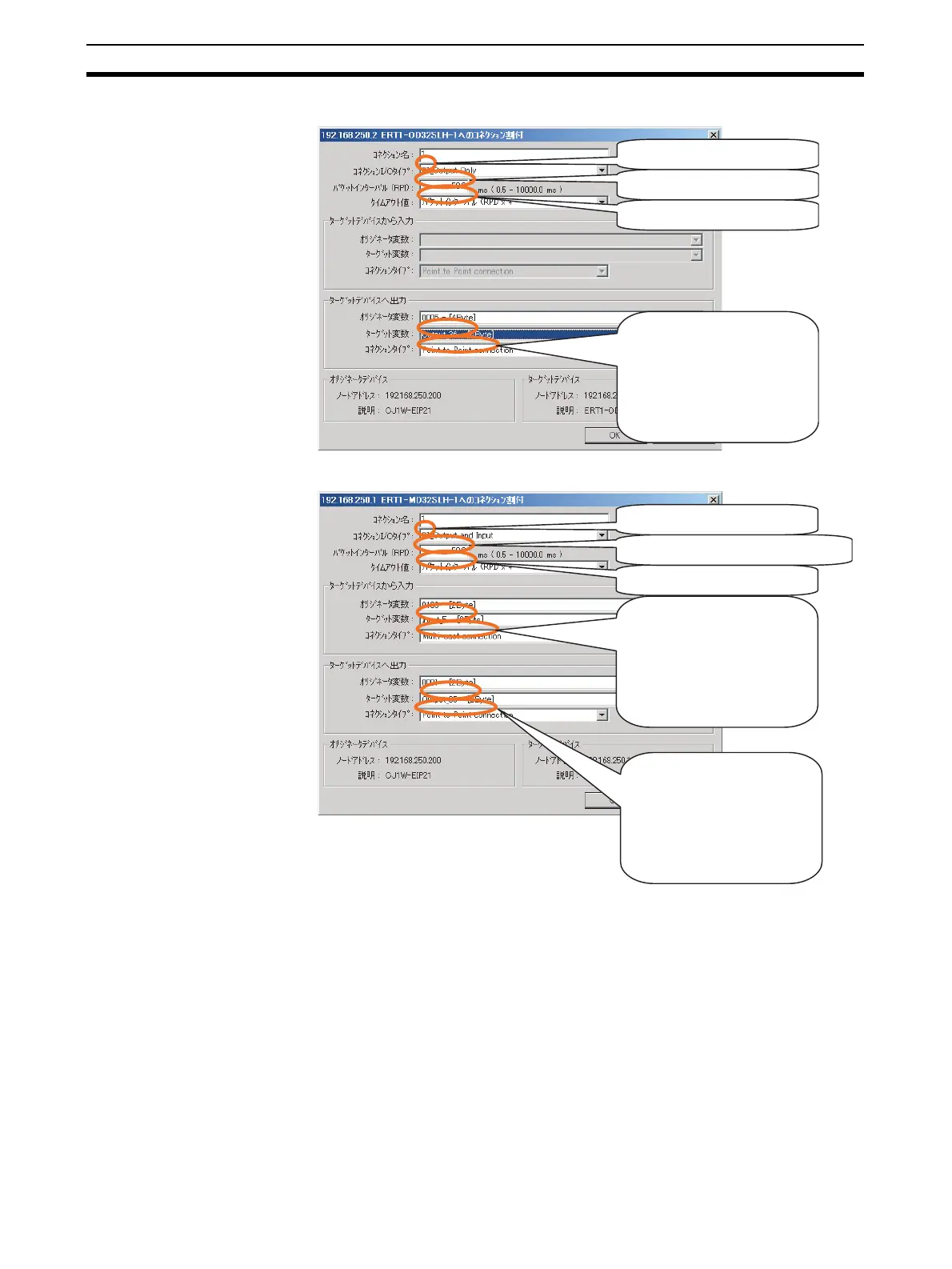

1.Input a name for the connection.
2.Select 01_Output Only.
3.Input the RPI.
4.Select the consume and
produce variables. For the
produce variable, select
Input_36. Make sure that the
sizes of the variables are the
same.
1.Input a name for the connection.
2. Select 01_Output Only.
3.Input the RPI.
4.Select the consume and
produce variables. For the
produce variable, select
Input_6. Make sure that the
sizes of the variables are the
same.
1.Input a name for the connection.
2. Select 01_Output Only.
3.Input the RPI.
4.Select the consume and
produce variables. For the
produce variable, select
Input_35. Make sure that the
sizes of the variables are the
same.
5.Select the consume and
produce variables. For the
produce variable, select
Output_5. Make sure that the
sizes of the variables are the
same.
