62
Environment-resistive Slave Units Section 5-2

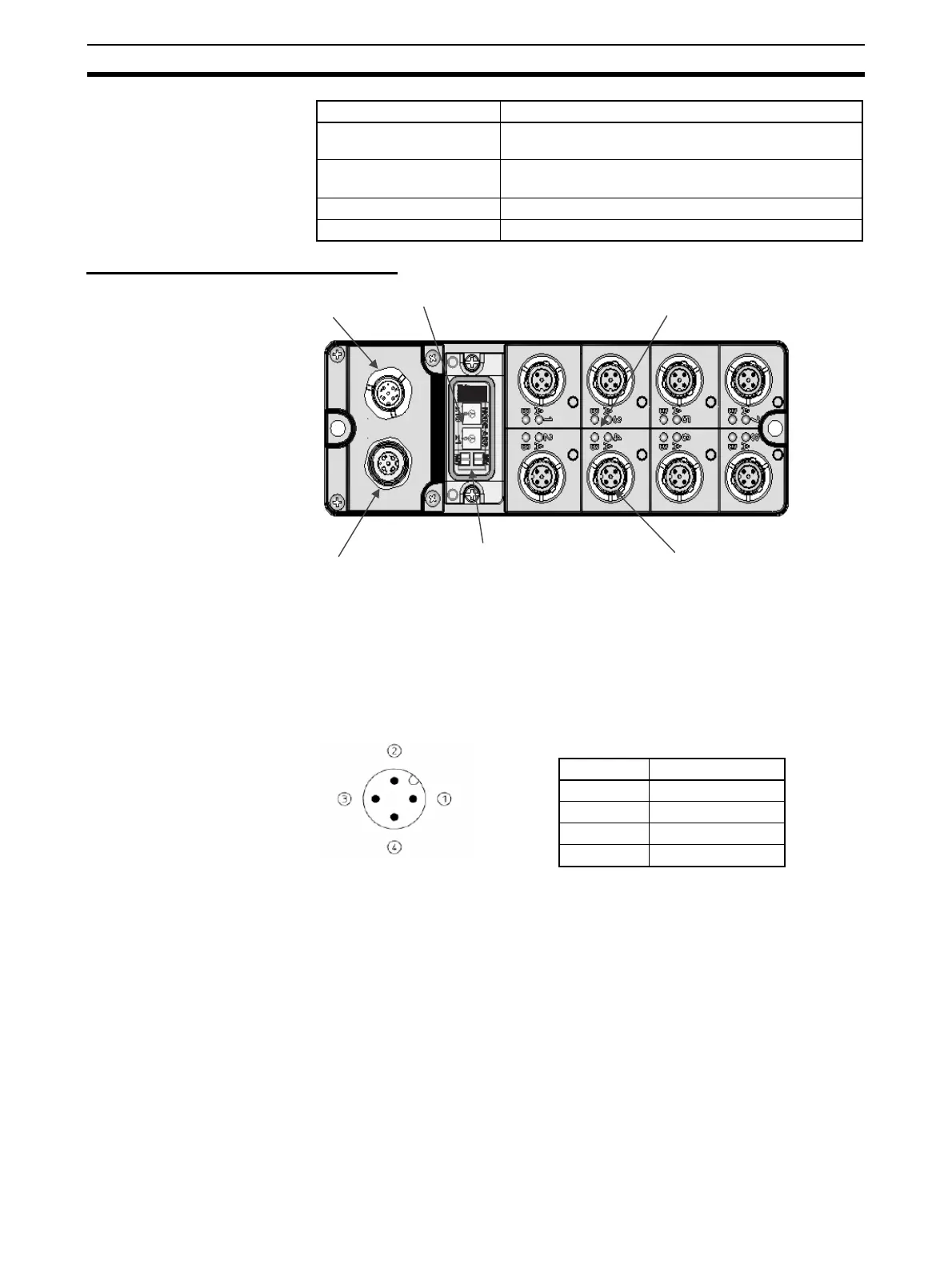

Component Names and Functions
(1) Rotary Switches
These switches are used to set the node address
(2) Ethernet Connector
The network communications cable is connected to this connector.
This is a Smart-click D-coding M12 connector (connector that locks easily with
1/8 of a turn).
(3) Power Supply Connector
The power supply is connected to this connector.
This is a Smart-click D-coding M12 connector (connector that locks easily with
1/8 of a turn).
Current consumption Communications power supply (including internal cir-
cuits): 110 mA max.
Connection forms M12 connector: Smart Click (connectors that lock easily
with 1/8 of a turn)
Weight 445 g max.
Standard accessories None
Item Specifications
(1)
(2)
(3)
(4)
(5)
(6)
Pin Signal
1TD+
2 RD+
3TD−
4RD−
