23
4

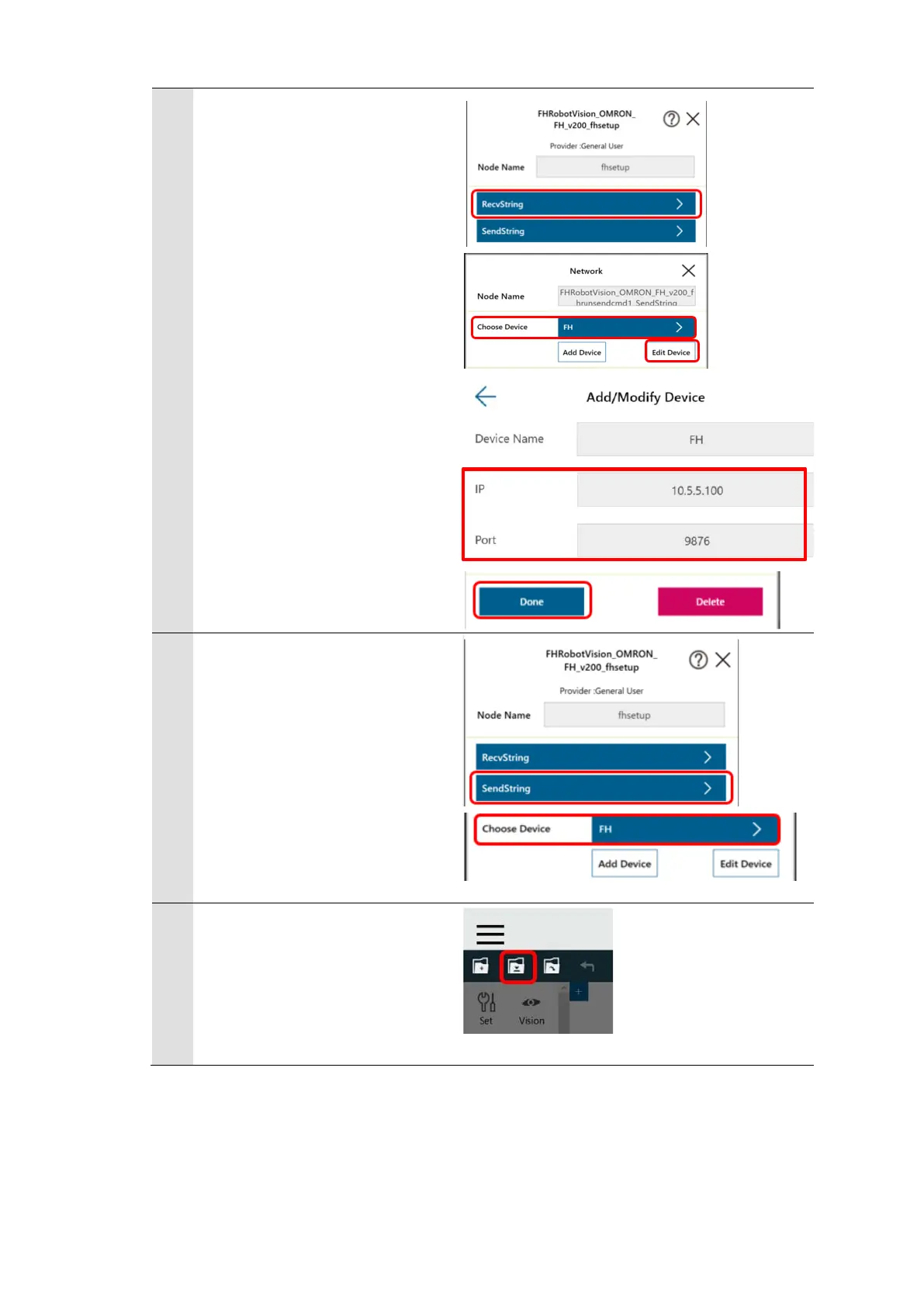

(Operation of TMflow)
Select [RecvString] to open
the Network Settings dialog.
Make sure that [Choose
Device] is set to FH.
Click [Edit Device] to open the
Device Settings screen.
Set the IP address and port
number of the Vision Sensor.
Click [Done] to save the
settings.
5
(Operation of TMflow)
Select [SendString] to open
the Network Settings dialog.
Make sure that [Choose
Device] is set to FH.
After confirming, close the
[fhsetup] node configuration
dialog.
6
(Operation of TMflow)
Like shown on the right
figure,
Click the icon to save the
[FHSETUPMAIN] project to
save your network settings.
