Communicating with an External Device
12
FQ2-S/CH User’s Manual
for Communications Settings
2 Command/Response Method (Refer to Command/Response Method: p.20)
Control is performed by storing the control command and the response to that command in the I/O mem-
ory of a PLC.
This method is best suited to send multiple commands to the Sensor without using PLC communications
instructions.
3 Data Output after Measurements (Refer to Data Output after Measurements: p.21)
After a measurement is executed, the measurement data specified for output is automatically output to
the specified words in the I/O memory of the PLC.
This is suited to reception of the measurement result data of each inspection item.
Communication Protocols for Communication with the Sensor
The Sensor can be controlled from a PLC, computer, or other external device using a variety of communication
protocols.
The communication protocols that can be used to control the Sensor from an external device are described
below.

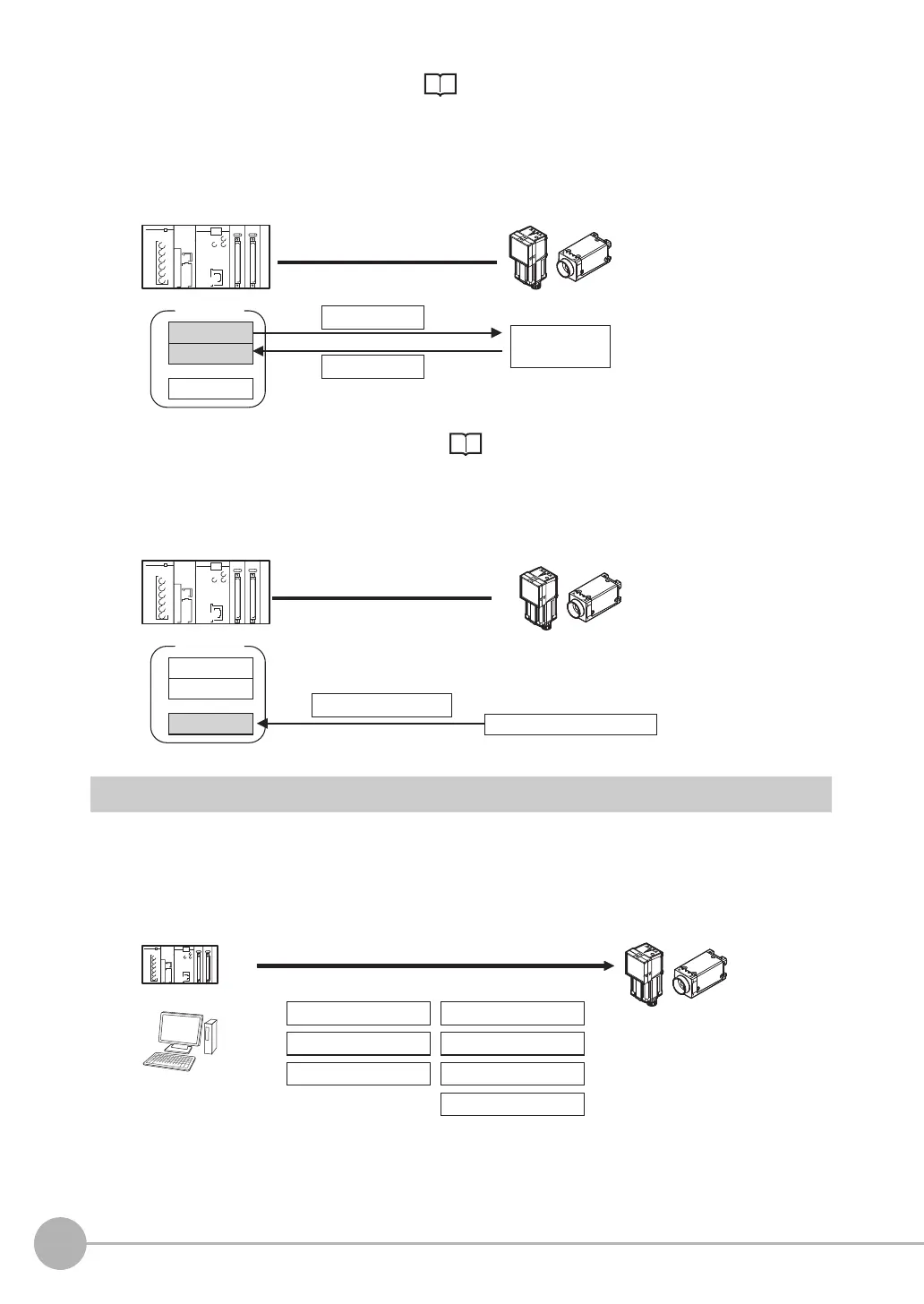

External device
I/O memory
Sensor
Command Area
Response Area
(1) Command
(3) Response
Output Area
(2) Command
execution
External device
I/O memory
Sensor
Command Area
Response Area
(2) Measurement data
Output Area
(1) Measurement processing
PLC
Computer
Control can be performed through different communications protocols.
No-protocol (FINS/TCP)
No-protocol (UDP)
PROFINET
EtherNet/IP
No-protocol (TCP)
PLC Link
Parallel
Sensor
