Introduction to RS-232C Connections
196
FQ2-S/CH User’s Manual
for Communications Settings
4-1 Introduction to RS-232C Connections
FQ2-S3
FQ2-S4
FQ2-CH
You can connect an RS-232C Interface Sensor Data Unit to the I/O cable connector on the FQ2.
If you connect a Sensor Data Unit, you can use no-protocol communications to send and receive commands,
inspection item parameters, and other data between the Sensor and the external control device that is
connected with the RS-232C cable.
Refer to the following sections for the specifications and wiring methods of the RS-232C Interface Sensor Data
Unit:
Section 2 Installation and Connections
in Vision Sensor FQ2-S/CH Series User's Manual (Cat. No. Z337)
Parallel Input Signals for an RS-232C Interface Sensor Data Unit
If you make a parallel connection through the parallel I/O connector on the Sensor Data Unit, the specifications of
the parallel I/O signals will change as given below in respect to the standard parallel communications of the Sensor.
• Output Signals
You can use the ACK signal in the parallel outputs. Refer to the following section for the specifications of the ACK
signal.
2-2 Controlling Operation and Outputting Data with a Parallel Interface Sensor Data Unit: p. 60

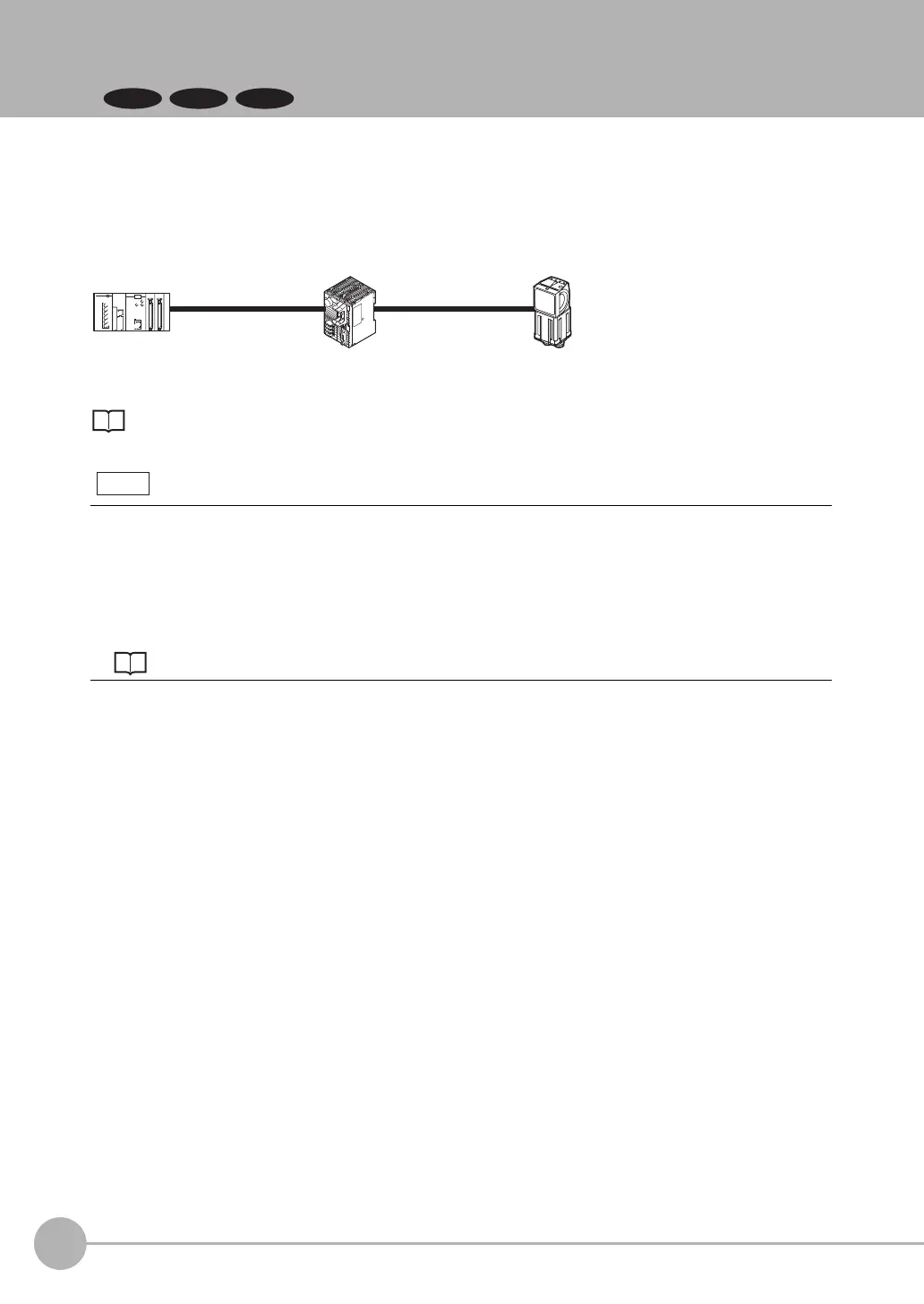

External device
RS-232C
Sensor Data Unit cable
Sensor Data Unit
Sensor
Note
FQ2-S_CH_comm.book 196 ページ ２０１４年６月２６日 木曜日 午前１１時４７分
