Outputting Data and Controlling Operation through PROFINET
FQ2-S/CH User’s Manual
for Communications Settings
149
3
Controlling Operation and Outputting Data with an
Ethernet Connection
Assigning More Than One Inspection Result to the Same Output Data
You can assign more than one inspection result to the same data output to output all of the assigned results.
This is possible for the following inspection results.
• Parameters for the same inspection item: You can assign up to five inspection results.
• Inspection results that support multi-point output: You can assign inspection results within the specified range (0 to 31).
The following procedure shows how to assign more than one inspection result to data 0.
[In/Out] − [I/O setting] − [Output data setting] − [Link data output/Fieldbus data output] −
[Output data set]

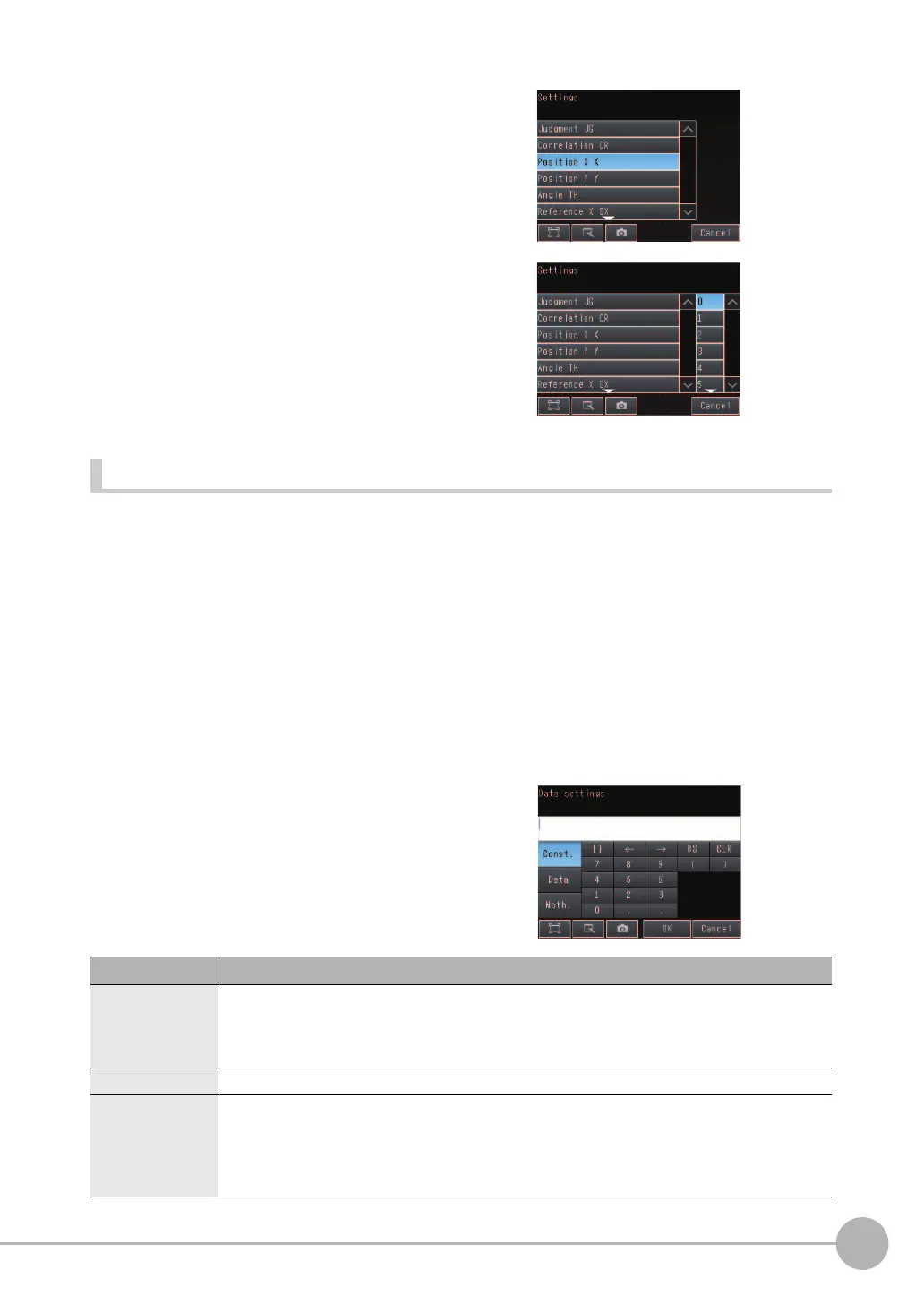

4 Press [Position X X].
5 If the inspection item allows multi-point output,
press the number ([0] to [31]) of the inspection result
for which to output the data from the list of inspec-
tion results.
To register something to data 1 and higher, repeat this process.
The settings will be enabled after you restart the Sensor.
1 Press [0. Data 0].
2 Press [Multi-data setting].
3 Set the following items on the display to set expres-
sions.
Item Description
Expression Register the expression to use to output multiple data.
Examples:
LPR (0, 3, I0.X, I0.Y)
LPC (0, I0.C, I0.X, I0.Y)
Const. Used to insert numbers and symbols into the expression.
Data Used to select the inspection items for which to output data and insert the parameters to output
into the expression.
Example: Selecting Parameters for the Search Item at Inspection Item 0
Inspection item: I0. Search
Judgement result: Judgement JG, Correlation: Corre. CR
