Outputting Data and Controlling Operation through PROFINET
166
FQ2-S/CH User’s Manual
for Communications Settings
● Data Output after Measurements When Handshaking Is Enabled
While the trigger input (TRIG signal) for parallel measurements is ON, the PROFINET BUSY signal will also be ON.
Therefore, no PROFINET commands will be executed. Any PROFINET commands will be executed after execution
of the parallel commands. You can also use a PROFINET to perform measurements and output data with the paral-
lel I/O measurement trigger signal (TRIG).

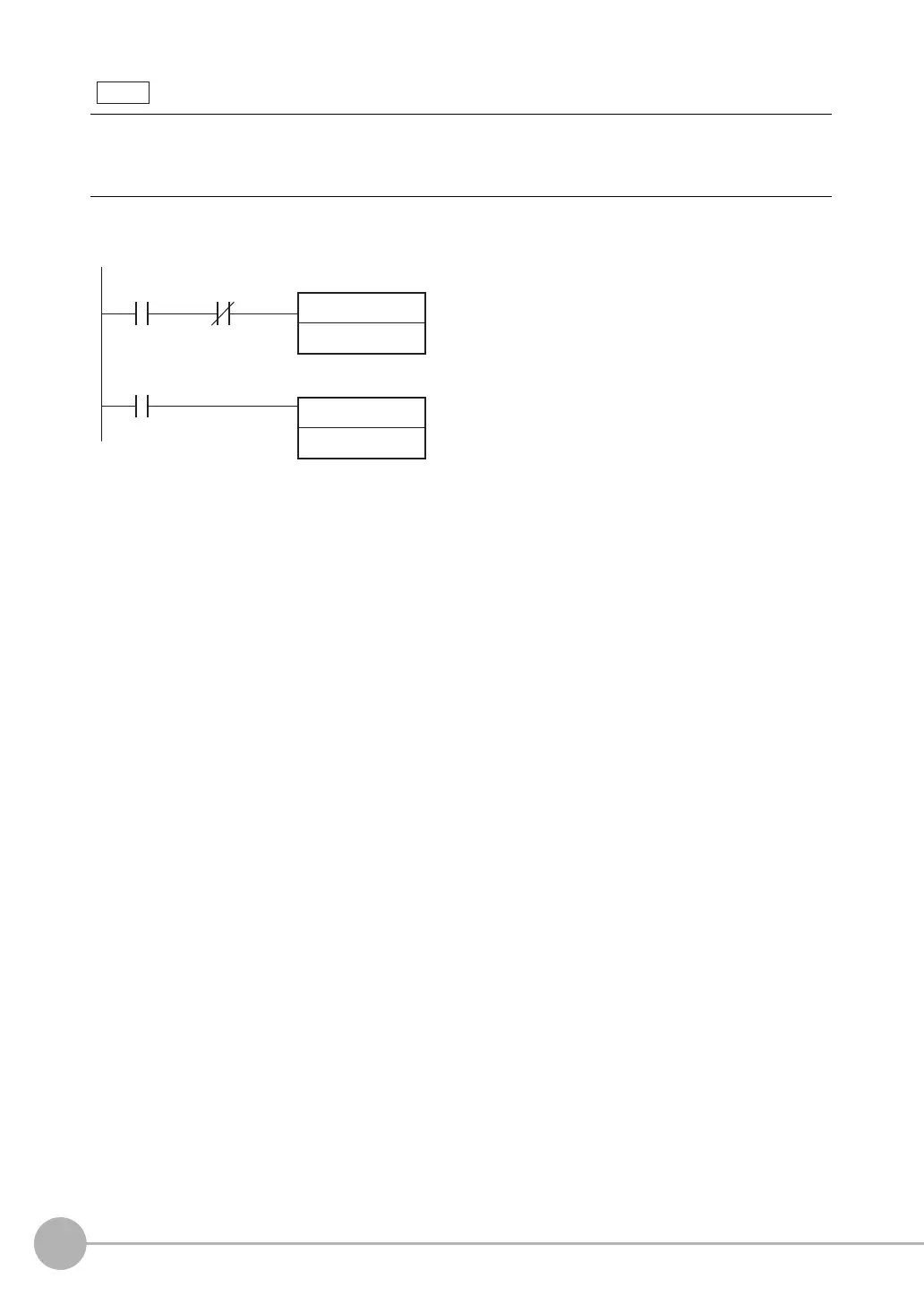

Note
Data Output
Completed (GATE)
Execution
condition
Data Output
Completed (GATE)
Data Output Request Bit (DSA)
SET
RSET
Data Output Request Bit (DSA)
