Control and Output in No-Protocol (TCP) / No-Protocol (UDP)
168
FQ2-S/CH User’s Manual
for Communications Settings
Initial settings for no protocol communications
Items to set and their default values depend on the communication protocol used and connection mode set.

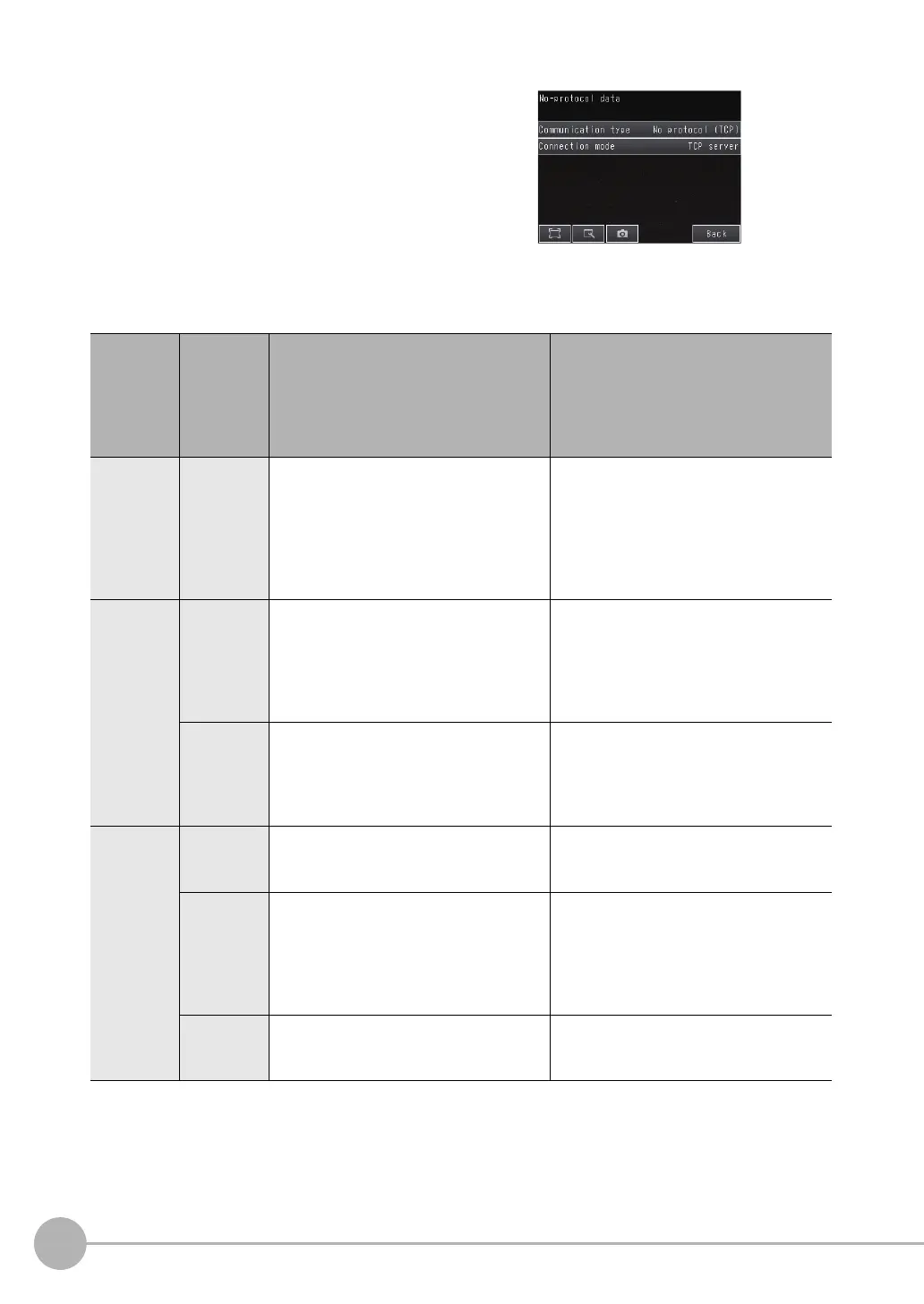

2 If you selected [No protocol (TCP)], select [TCP serv-
er] or [TCP client] for [Connection mode] and then
press [Back].
3 If you selected [No protocol (UDP)] or set [Connec-
tion mode] to [TCP client] in step 2, set the parame-
ters below.
Communi-
cation pro-
tocol used
and con-
nection
mode set
Item Description Setting range
No protocol
(TCP) TCP
server
Input port
No.
Sets the input port number to wait for a
connection request from the connected
external device (or client) such as a PLC.
In this connection mode, an FQ2 Sensor
serves as a TCP server and monitors this
port number to be ready for the connection
request from the client.
0 to 65,535
Default: 9,876
No protocol
(TCP) TCP
client
Output IP
address
Sets the IP address of the connected exter-
nal device (PLC, etc.).
a.b.c.d
a: 1 to 223
b: 0 to 255
c: 0 to 255
d: 1 to 254
Default: 10.5.5.111
Output port
No.
Sets the port number to be used for
exchanging data with the connected exter-
nal device (or client) such as a PLC.
Set the same port number as the port num-
ber set for the connected external device.
0 to 65,535
Default: 9,600
No protocol
(UDP)
Input port
No.
Sets the port number used for data inputs.
Set the same port number as the port num-
ber set for the connected external device.
0 to 65,535
Default: 9,600
Output IP
address
Sets the IP address of the connected exter-
nal device (PLC, etc.).
a.b.c.d
a: 1 to 223
b: 0 to 255
c: 0 to 255
d: 1 to 254
Default: 10.5.5.111
Output port
No.
Sets the port number used for data outputs.
Set the same port number as the port num-
ber set for the connected external device.
0 to 65,535
Default: 9,600
