Control and Output in No-Protocol (TCP) / No-Protocol (UDP)
184
FQ2-S/CH User’s Manual
for Communications Settings
Binary Data File Save Command

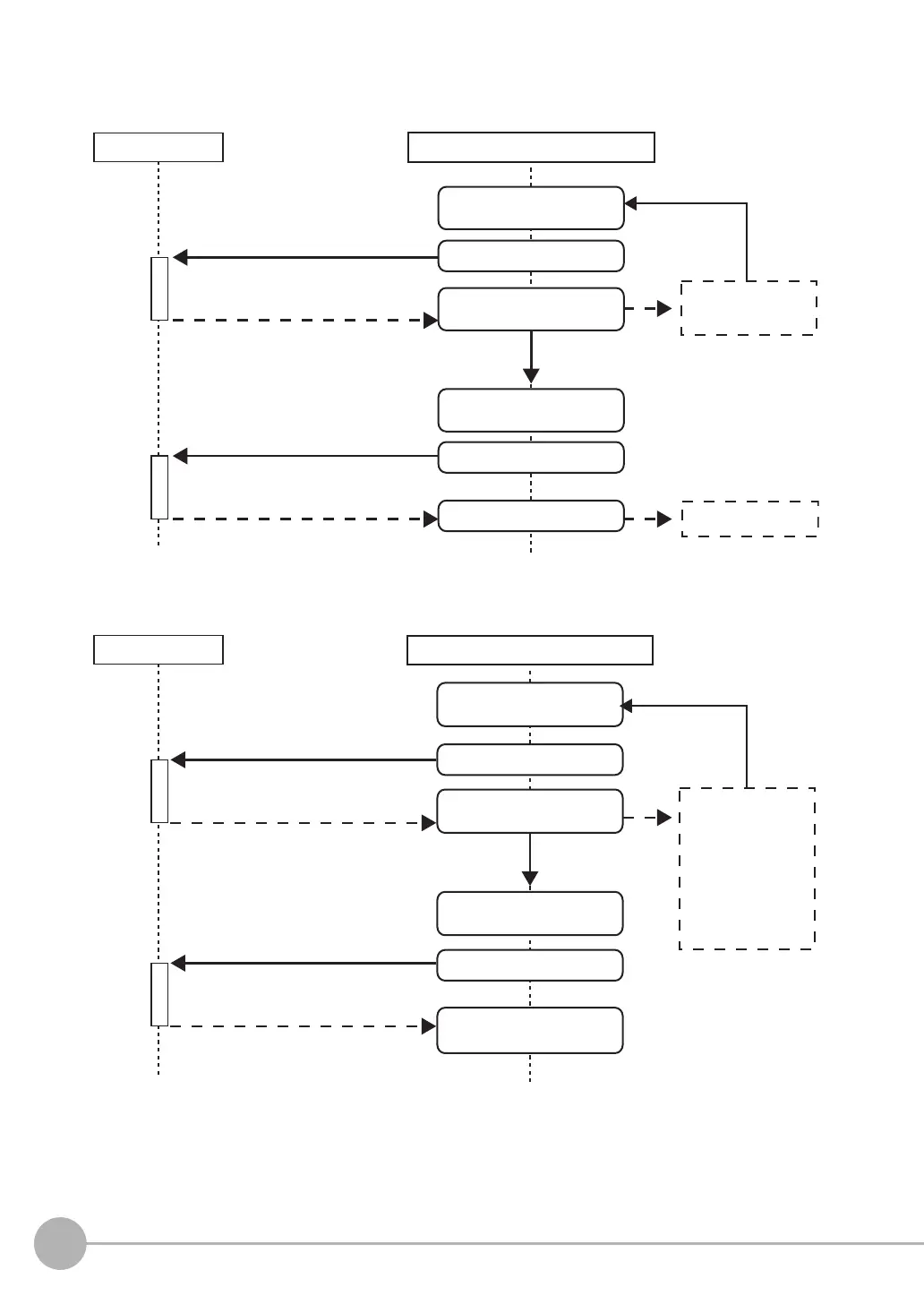

The flow below is used to save various types of setting files in an external device as data in binary data format.
Binary Data File Load Command
The flow below is used to load various types of setting files in binary data format in the Sensor.
(Checks size of binary data to be saved)
(Notification of size of binary data to be saved)
No
Yes
FQ2
Review size of storage
destination for binary data
Binary data is saved.
Response
Check command transmission
(Binary data output request)
(Binary data output)
Response
Run command transmission
PLC (user-created program)
Preparation for check
command execution
Check command execution
Run command execution
Binary data reception
Preparation for
run command execution
Judges if binary data
can be received
(Notification of size of binary data to be loaded)
(Notification of whether binary data can be received)
No
Yes
Adjust reception
conditions in Vision
Sensor (delete
setting data saved
in Sensor to
increase free
memory in
Sensor, etc.)
FQ2
Response
Check command transmission
(Transmission of binary data)
(Notification of binary data reception result)
PLC (user-created program)
Preparation for check
command execution
Check command execution
Preparation for run
command execution
Checks whether binary data
can be received
Run command execution
Checks binary data
reception result
Response
Run command transmission
