Omron FQ2-S Series User Manual

Command Control
FQ2-S/CH User’s Manual
for Communications Settings
309
5
Appendices
INPUTTRANSSTATE or ITS
Set Communication Input Status
This command sets the input status (allowed/prohibited) of the communications port for the specified
communications protocol.
Communications protocols with the input status set to prohibited will no longer receive communications after
being set as such.
However, for inputs related to hardware (parallel TRIG signal and DSA signal), this setting is not applicable.

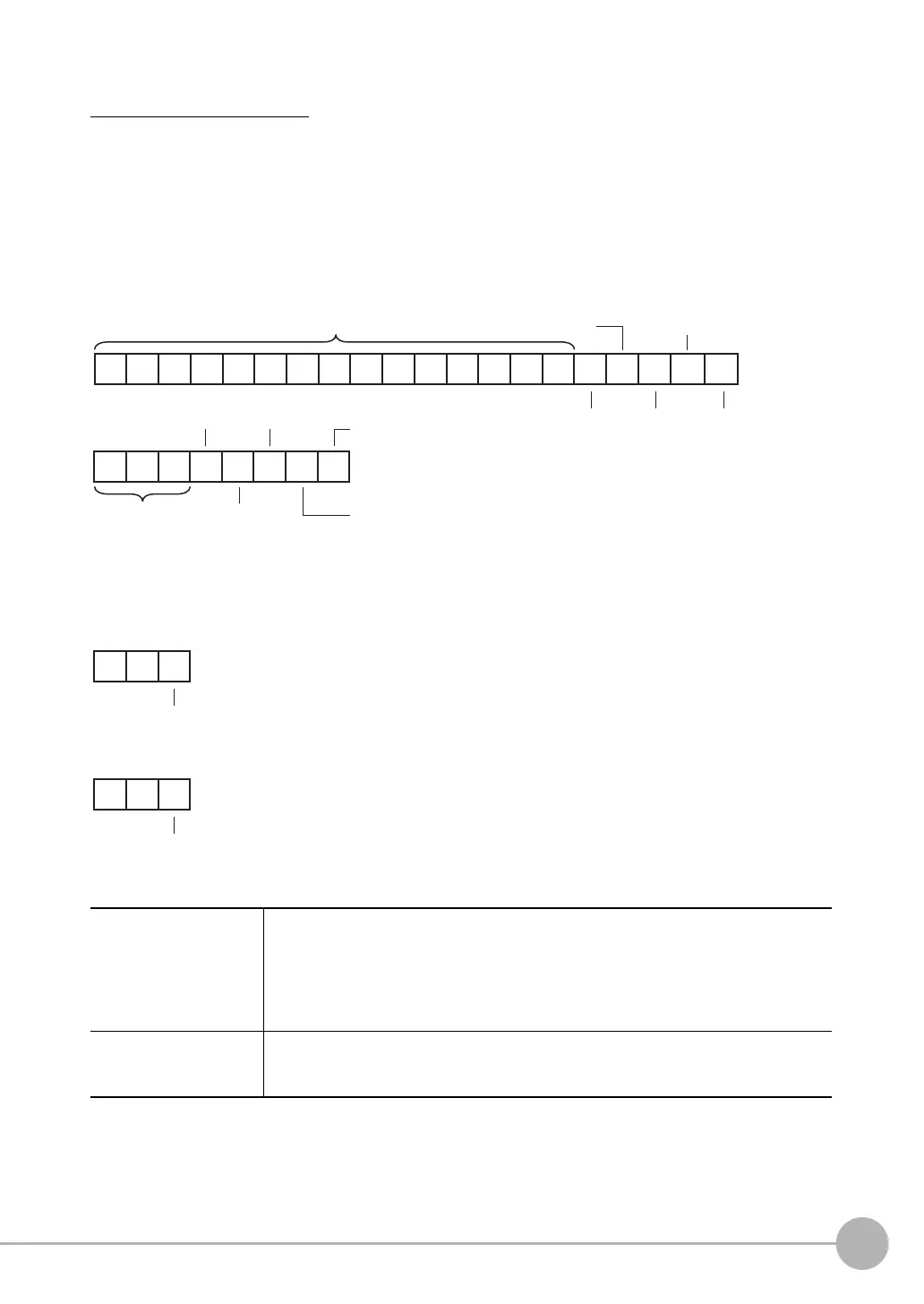

<Command Format>
<Response Format>
When the Command Is Processed Normally
When the Command Is Not Processed Normally
<Parameter Descriptions>
Communications protocol
type to be set
Specifies the type of communications protocol to be set.
0: No protocol (TCP, UDP, FINS)
1: No protocol (RS-232C)
2: Parallel I/O
3: Fieldbus
5: PLC link
Setting value Sets the status of the communications protocol.
0: Input prohibited status
1: Input allowed status
I N TTRA CR P
S
U N TATESS
Communications protocol
type to be set
(1 digit max.)
Setting value
(1 digit max.)
Communications
protocol
type to be set
(1 digit max.)
Setting value
(1 digit max.)
Command
Space
(0x20)
Space
(0x20)
Space
(0x20)
Space
(0x20)
Delimiter
Delimiter
Command
or
TI CR
Delimiter
CR OK
CR ER
Delimiter
