Omron FQ2-S Series User Manual

Controlling Operation and Outputting Data with the Sensor's Standard Parallel Connection
58
FQ2-S/CH User’s Manual
for Communications Settings

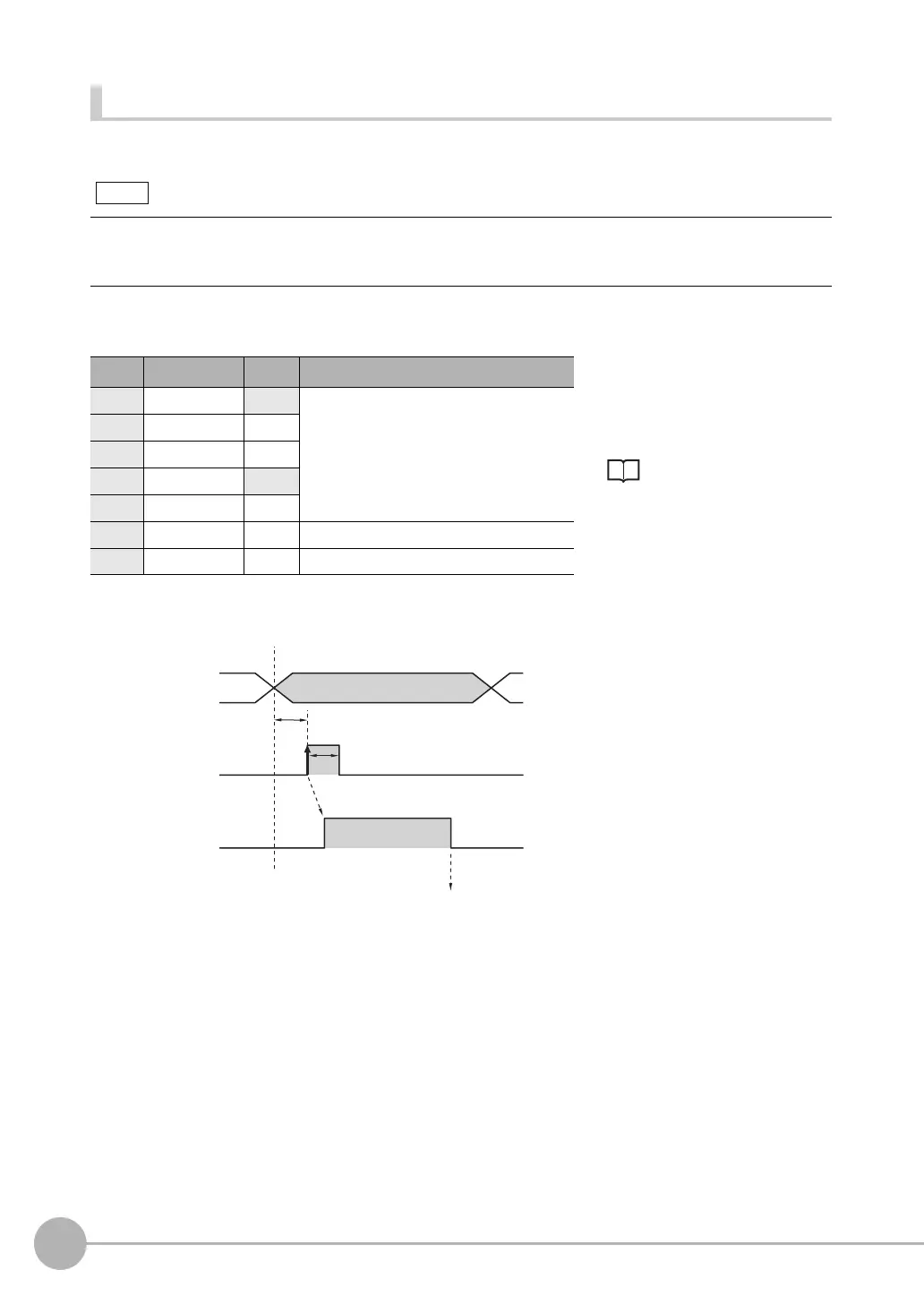

Executing External Teaching
Teaching for all registered items can be executed using the current input image.
Wiring
Timing Chart
• This command is only valid in Expanded Mode.
• Application is possibly only from the Run Mode
• If the parameter is applicable to more than one inspection item, it will be external teaching for all inspection items.
Color Signal State Description
The signals shown at the left are
used.
Refer to the following information for
signal wiring.
Section 2 Installation and
Connections
in Vision Sensor FQ2-S/CH
Series User's Manual
(Cat. No. Z337)
Gray IN0 ON Command parameter for external teaching
Green IN1 OFF
Red IN2 OFF
White IN3 ON
Purple IN4 OFF
Yellow IN5 ON Command input for external teaching
Orange OUT1 (BUSY) -- Processing in progress (default)
1 Turn ON IN0 and IN3 and turn OFF
IN1, IN2, and IN4.
2 Turn ON the IN5 signal while the
BUSY signal is OFF to execute
external teaching.
3 The BUSY signal turns ON while
external teaching is being executed.
Note
OFF
ON
OFF
ON
Start external teaching
End external teaching
BUSY signal
IN5 signal
ON for 1 ms min.
Allow 5 ms min. and then
turn ON IN5.
IN0 to IN4 signals
