Controlling Operation and Outputting Data with a Parallel Interface Sensor Data Unit
86
FQ2-S/CH User’s Manual
for Communications Settings
• When inspection is NG
Output Signals
Input Signals
It may happen that the PLC is unable to recognize BUSY signal ON because the sample time is slow or otherwise. In
this event, have W0.00 turn OFF at a suitable time.

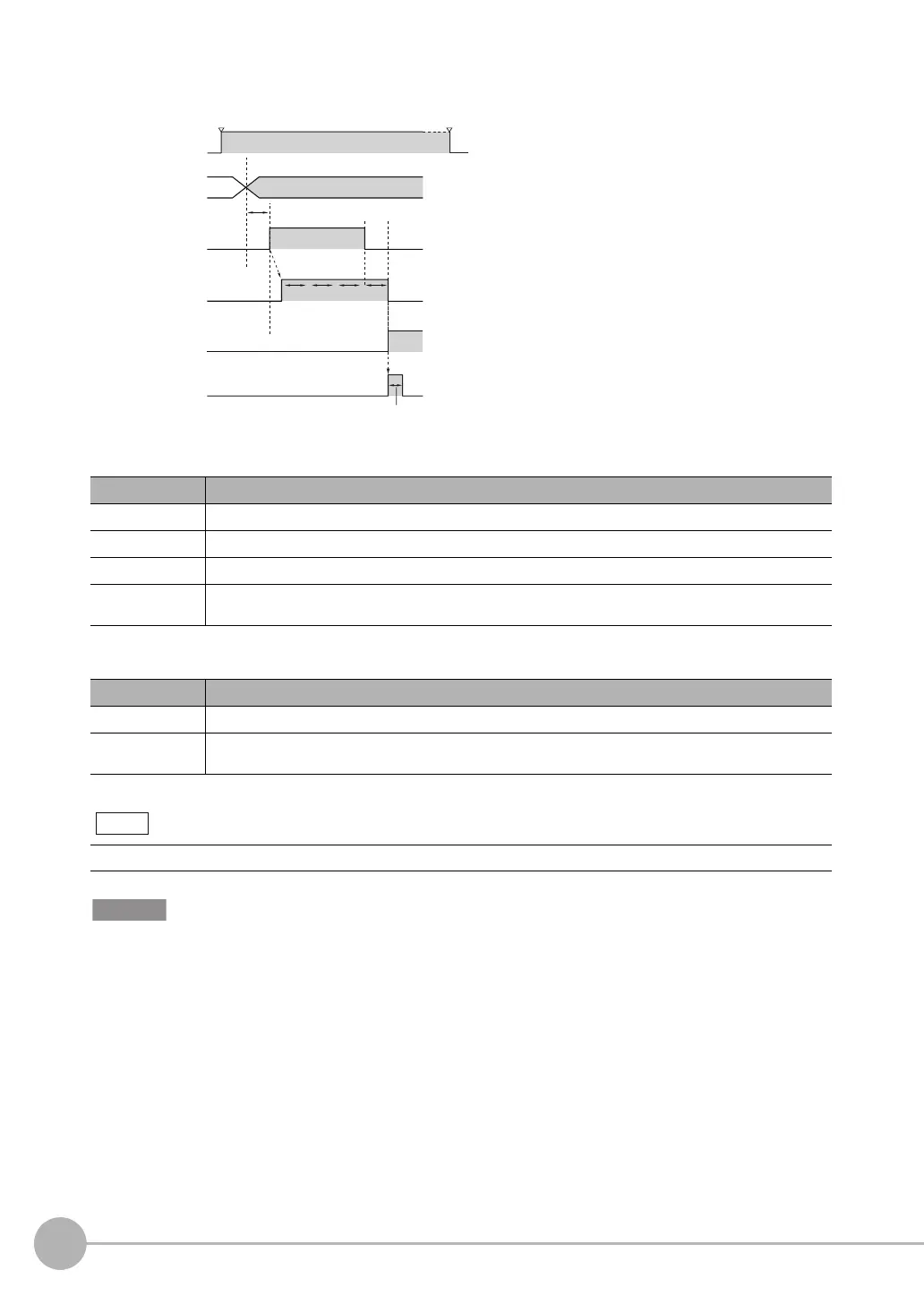

1 Set the IN0 to IN6 signals.
2 When IN5 is turned OFF > ON with
the BUSY signal OFF, trigger retry
inspection starts.
3 When retry inspection starts, the
BUSY signal turns ON.
4 IN5 is turned OFF and retry inspection
ends. If retry inspection ends but the
overall judgment is NG, the OR signal
turns ON. (Output polarity: When ON
at NG)
Signal Function
RUN This signal is ON while the Sensor is in Run Mode. It will be OFF in Setup Mode.
BUSY This signal is ON while measurements are being processed (depends on BUSY output conditions).
OR The overall judgement result is output from this signal.
ACK When the command has been completed normally, this signal is turned ON for the time that is set for the ACK
output time.
Signal Function
IN0 to IN6 With these signals, user (PLC) sets the commands.
IN7 This signal is the trigger for Trigger Retry. Set the IN0 to IN6 signals, wait for at least 5 ms, and then turn ON the
IN7 signal. The BUSY signal will be ON while the command is being executed.
The time the BUSY signal is ON is the trigger retry execution time.
OFF
ON
OFF
ON
OFF
ON
IN7 signal
IN0 to IN6 signals
IN5 ON after at least 5 ms
Retry starts
Scan
NG
Scan
NG
Scan
NG
Scan
NG
Retry ends
BUSY signal
OR signal
RUN signal
OFF
ON
Run Mode entered. Setup Mode entered.
ACK signal
OFF
ON
ACK output time
0
0001100
Note
FQ2-S_CH_comm.book 86 ページ ２０１４年６月２６日 木曜日 午前１１時４７分
