Controlling Operation and Outputting Data with EtherNet/IP Communications
96
FQ2-S/CH User’s Manual
for Communications Settings
● Settings in the FQ2 (Device Parameter Settings)

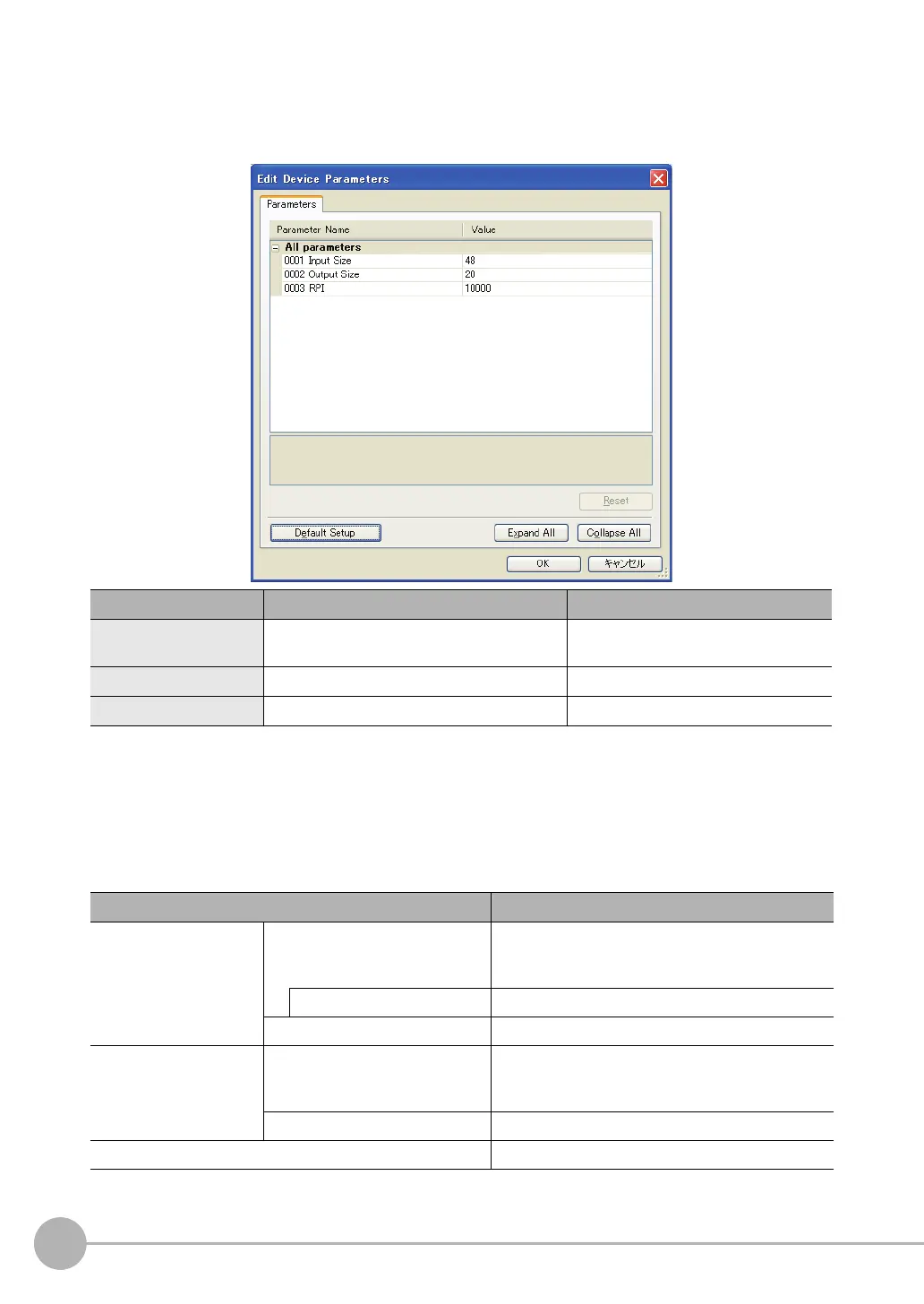

1 Right-click the FQ2 in the network on the Network Configurator and select [Parameter] − [Edit].
2 The Edit Device Parameters Dialog Box will be displayed. Make the required settings.
*1 Although the data size can be set as high as 502 bytes, with the current version set one of the following as the total data size for the output
area (data output size) and the response area (16 bytes).
• 48 bytes (default)
• 80 bytes
• 144 bytes
• 272 bytes
*2 Although the data size can be set as high as 502 bytes, with the current version use the default setting of 20 bytes.
*3 The packet interval (RPI) is set in the connection settings between the PLC and the Sensor. No setting is required here.
● Connection Settings
*1 If multi-cast connections are used, however, use an Ethernet switch that has multi-cast filtering, unless the tag set is received by all nodes
in the network.
*2 Set the same value as you set for the refreshing task period in the EtherNet/IP communications settings.
Parameter name Value Setting range
001 Input Size
*1
The total size of response area and output
area
48 to 272
002 Output Size
*2
The data size of command area 20
003 RPI
*3
The requested packet interval 10000
Parameter Setting
Originator device (PLC) Input tag set PLC_tag_set_name-[**Byte]
**: This is the total size of the response area and
output area that you set.
Connection type Any (default: multi-cast connection)
*1
Output tag set PLC_tag_set_name-[20Byte]
Target device (Vision Sen-
sor)
Output tag set Input_101-[**Byte]
**: This is the total size of the response area and
output area that you set.
Input tag set Output_100-[20Byte]
Packet interval (RPI) Any (default: 20.0)
*2
