① Change the setting of the Out ON/OFF switch from Auto to OFF.
② Return the setting of the Out ON/OFF switch from OFF toAuto
while holding down the Key. The OFF state will be held from the
point at which this operation is perfomed (indicated by the arrow) until
the next (regular) ON time.
In Override and automatic return operation, the status can be set to ON or
OFF directly using the Out ON/OFF switch. This status is then held until
the next ON/OFF operation based on the regular settings.
≪Note≫
• This operation is possible in run mode only.
• Override and automatic return operation can be cleared by setting the Out ON/OFF
switch to the opposite of the present status. For example, if the output is ON, partial
automatic operation can be cleared by setting the Out ON/OFF switch to OFF.
• Override and automatic return operation cannot be set or cleared if power is not
being supplied to the Time Switch.
• Override and automatic return operation is cleared if any of the settings are changed.

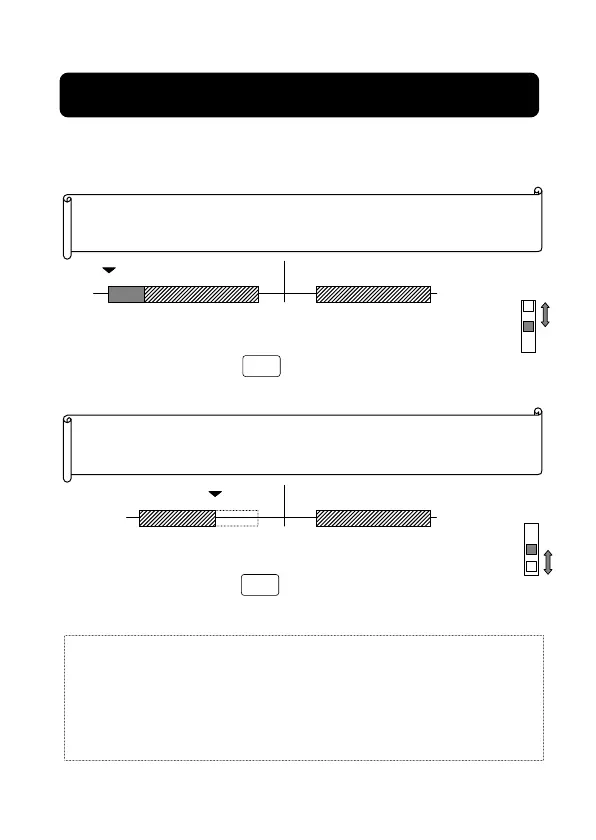

【Example２】Regular setting: ON at 8:30 am; OFF at 5:15 pm
Use the following procedure to stop operation at 3:00 pm
for the present day only.
8:30 am 5:15 pm3:00 pm 8:30 am 5:15 pm
Present day Next day
① Change the setting of the Out ON/OFF switch from Auto to ON.
② Return the setting of the Out ON/OFF switch from ON to Auto
while holding down the Key. The ON state will be held from the
point at which this operation is perfomed (indicated by the arrow) until
the next (regular) OFF time.
【Example１】Regular setting: ON at 8:30 am; OFF at 5:15 pm
Use the following procedure to start operation at 7:00 am
for the present day only.
7:00 am 8:30 am 5:15 pm 8:30 am 5:15 pm
Present day Next day
ON
AUTO
OFF
ON
AUTO
OFF
- 23 -
13. Override and automatic return operation
WRITE
WRITE
