Omron H5F - Setting Precautions

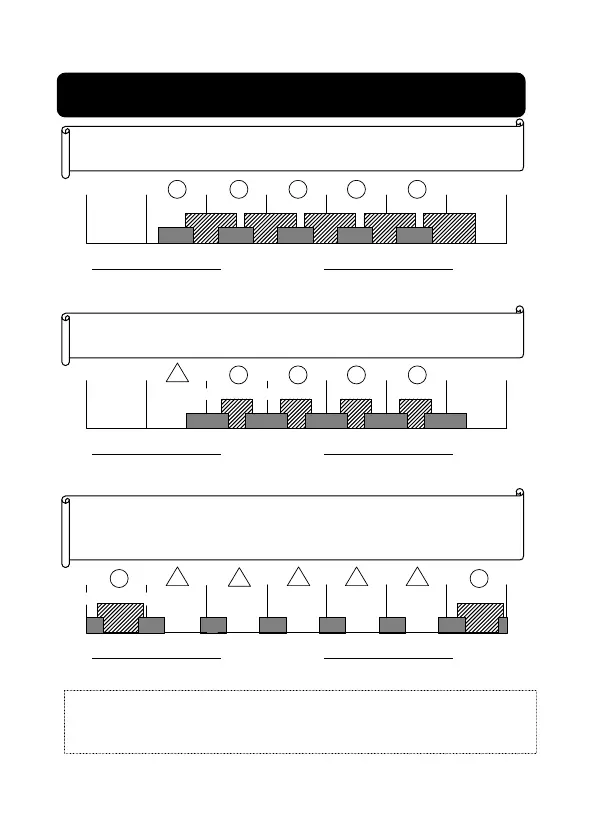

【Example1】 Use the settings given below to turn ON output from 8:30 am
on Monday right through to 0:30 pm on Saturday.
8:30 am
- 27 -
SU MO TU WE TH FR
SA
SU MO TU WE TH FR
SA
SU MO TU WE TH FR
SA
●
Operation time settings:
Operation time settings:
Operation time settings:
Operation date settings:
Operation date settings:
Operation date settings:
● 8:30 am to 2:00 pm
Operation Day(○) MO,TU,WE,TH,FR ▲ 1:00 pm to 0:30 pm
● ● ● ●
▲ ▲ ▲ ▲
1:00 pm 0:30 pm
2:00 pm
【Example2】 Use the settings given below to turn ON output from 1:00 pm
on Monday right through to 8:00 am on Saturday.
1:00 pm
▲
▲ 1:00 pm to 8:00 am ( specified operation ) Specified day(△) MO
Operation Day(○) TU,WE,TH,FR
● 7:00 am to 2:00 pm
▲ ▲ ▲ ▲
● ● ● ●
7:00 am 2:00 pm
8:00 am
【Example3】 Use the settings given below to turn ON output from 8:00 pm
to 7:00 am from Monday to Thursday and from 8:00 pm
on Friday right through to 7:00 am on Monday.
8:00 pm
▲
▲ 8:00 pm to 7:00 am ( specified operation ) Specified day(△) MO,TU,WE,TH,FR
Operation Day(○) SU,SA
● 6:00 am to 9:00 pm
▲ ▲ ▲ ▲
●
6:00 am 9:00 pm
7:00 am
●
▲▲
≪Note≫
• As shown in the above examples, continuous operation for more than 24 hours is
possible by combining two or more settings. Refer to Setting Precautions for more
details.
17. Setting examples
▲
