2-1 Mounting

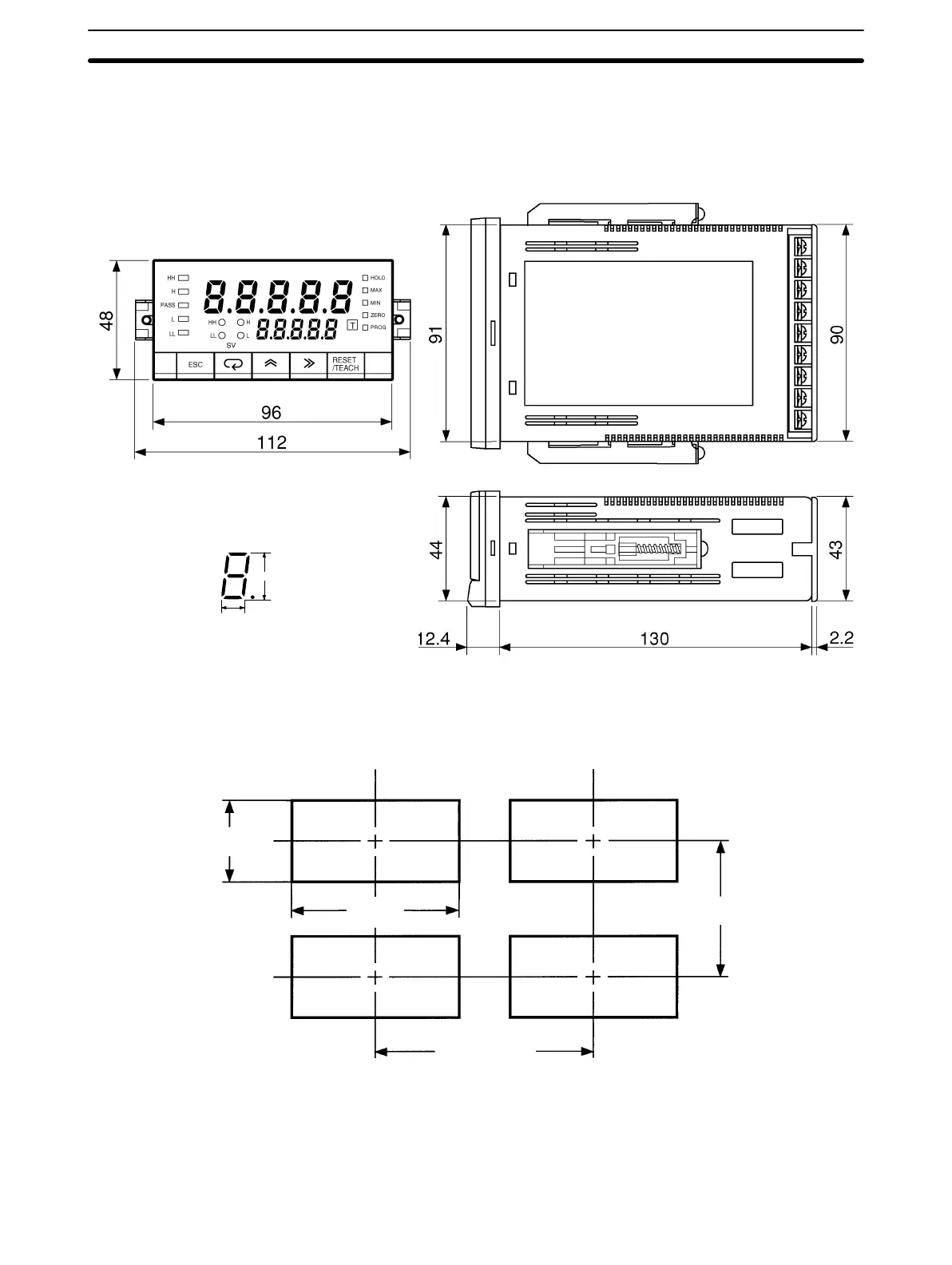

Dimensions All dimensions are in millimeters.
14.2 mm
8.2 mm
PV LED Indicator Size
Panel Cutouts
45
+0.8
–0
92
+0.8
–0
120 min.
75 min.
Recommended panel thickness is 1 to 3.2 mm.
Do not mount more than one Unit closely in the horizontal or vertical direction. Be
sure to keep the distance between adjacent Units.
Mounting Section 2-1
