Omron K3NX User Manual

11

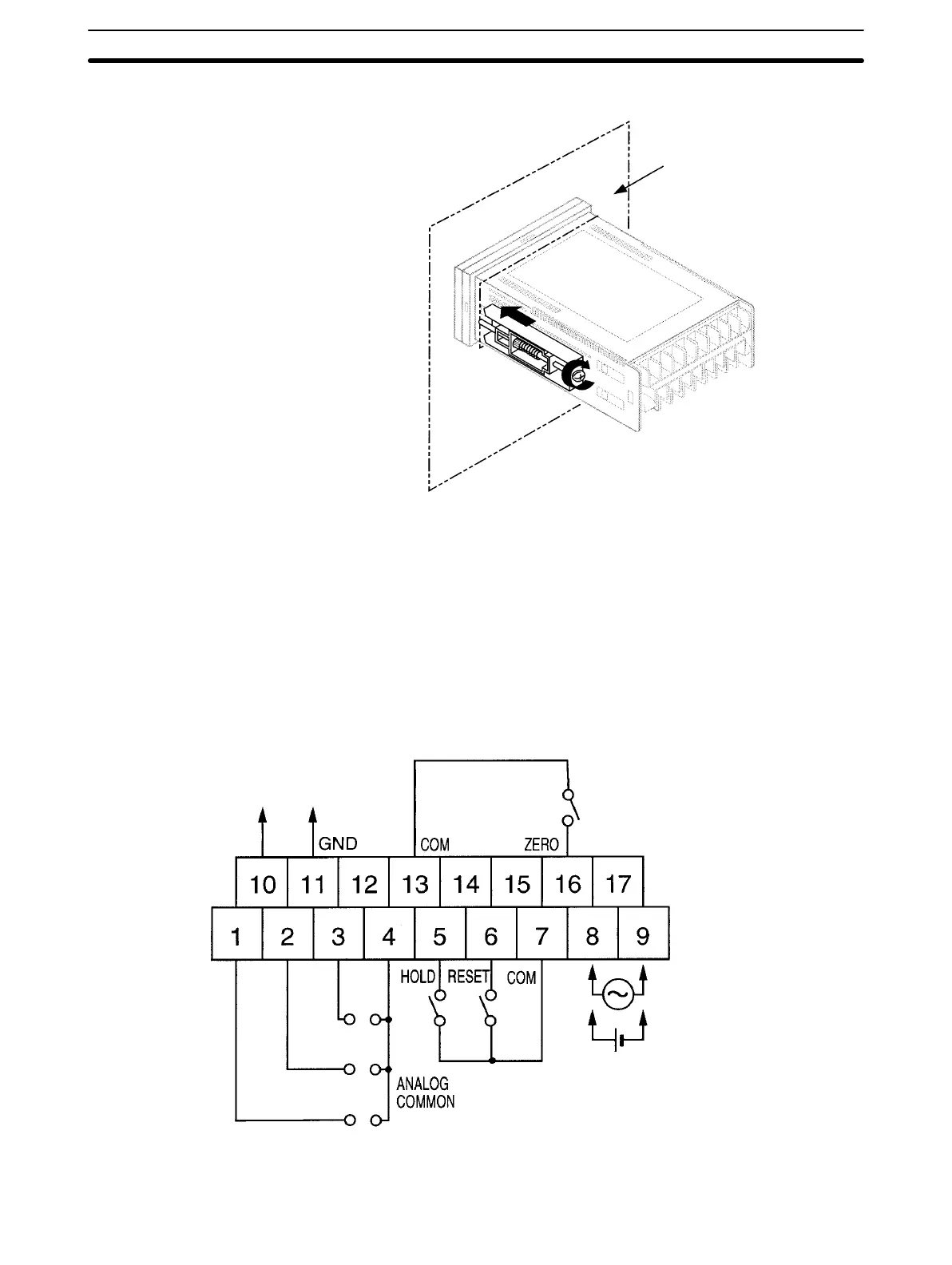

Mounting Method
Panel
1, 2, 3... 1. Insert the K3NX into the mounting hole on the panel.
2. Hook the fixture claws onto the side holes.
3. Mount a fixing metal to the right and left sides as shown above and while
keeping them in balance, alternately tighten each screw until the ratchet be-
comes idle.
2-2 Base Unit
2-2-1 Terminal Arrangement
12 VDC, 80 mA
Sensor power supply
Signal
input
100 to 240 VAC
12 to 24 VDC
Signal
input
Signal
input
Note Terminals 7 to 13 are connected internally.
Base Unit
Section 2-2
