77
5-1-2 Scaling Value
• A scaling input value can be set using the actual measured value instead of key
input in the scaling menu.
• Follow the steps below to teach the setting value.
1, 2, 3... 1. Press the RESET/TEACH Key for more than one second while the parame-
ter is displayed. The process value will be displayed and the teaching indica-
tor will flash.
2. Press the RESET/TEACH Key again to retrieve the process value immedi-
ately before the key was pressed as a set value. The teaching indicator will
be lit and the parameter will be displayed. Press the Escape Key to interrupt
teaching.

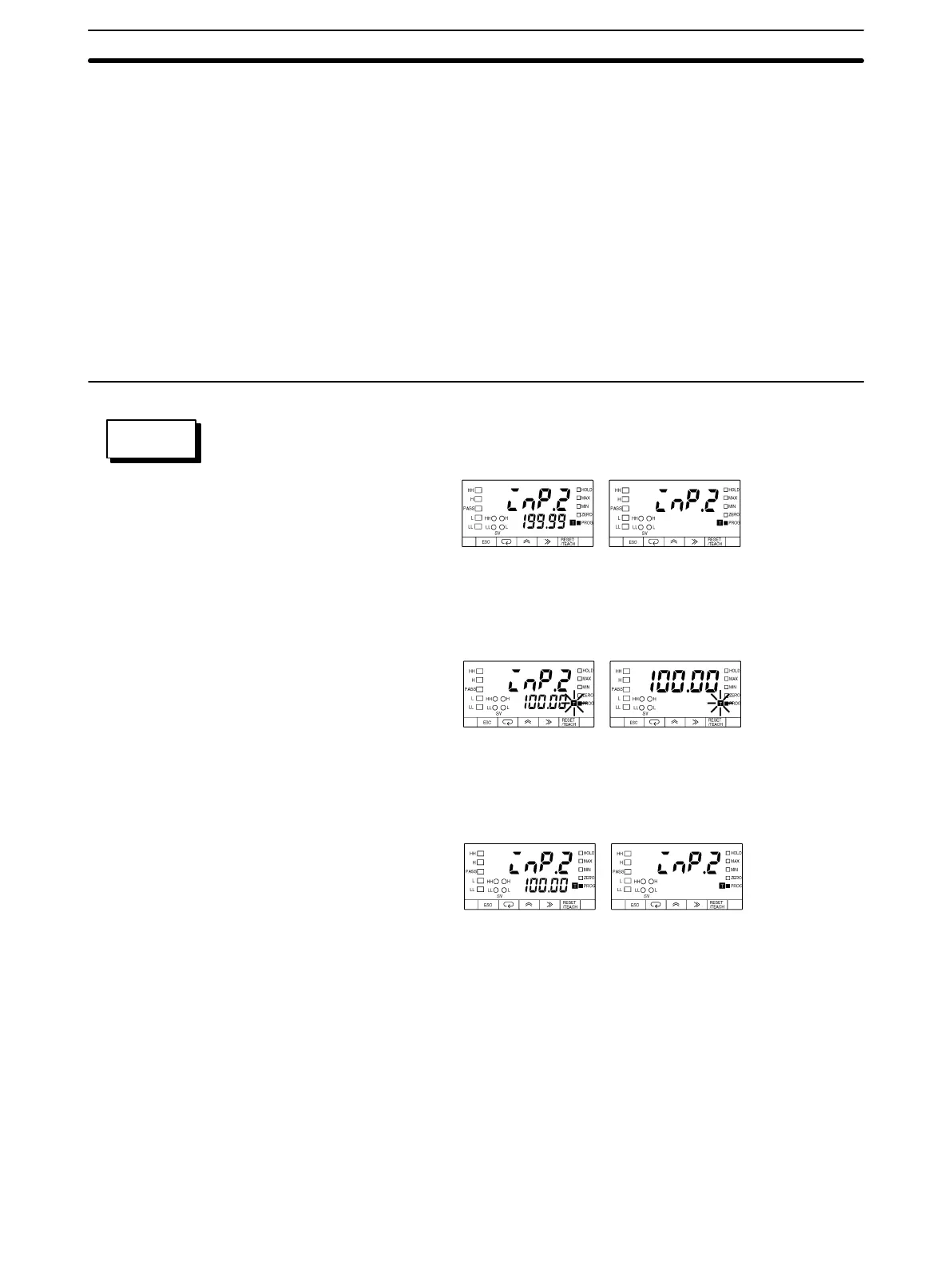

Follow the steps described below to set the input value 2 by using the teaching function.
Set Value LED Display Model Basic Model
1, 2, 3... 1. Press the RESET/TEACH Key for more than one second while the parame-
ter is displayed. The process value will be displayed and the teaching indica-
tor will flash.
Set Value LED Display Model Basic Model
2. Press the RESET/TEACH Key again to retrieve the process value immedi-
ately before the key was pressed as a set value for changing. The teaching
indicator will be lit and the parameter will be displayed.
Set Value LED Display Model Basic Model
SETTING
EXAMPLE
Teaching Function Section 5-1
