11. The process value will be displayed. Press the Mode Key to enter the pro-
cess value as calibration data.

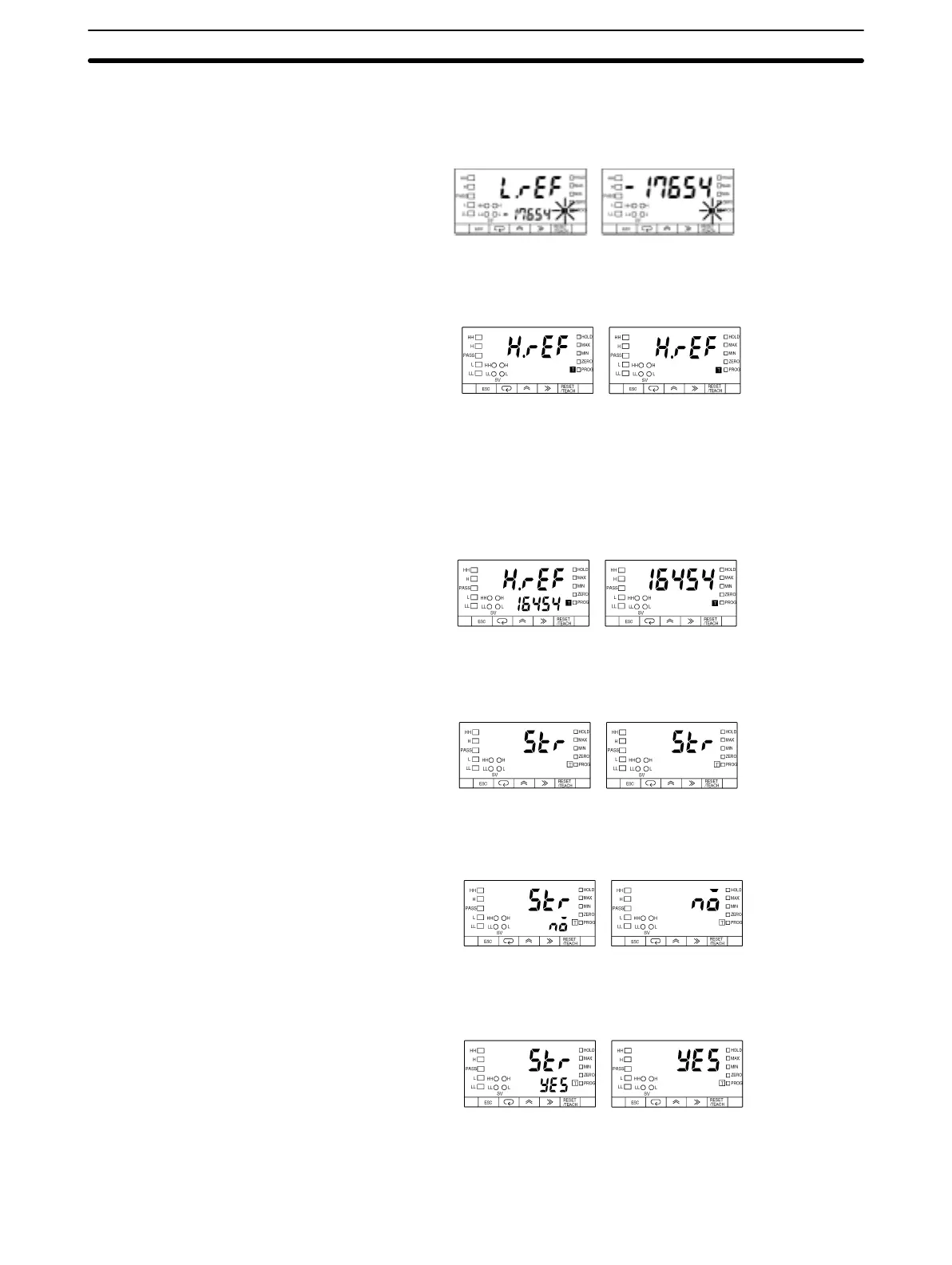

Set Value LED Display Model Basic Model
12. The h.ref reference input signal H setting will be displayed.
Set Value LED Display Model Basic Model
13. Press the RESET/TEACH Key and input 5.0000 V as reference input signal
H.
14. The process value will be displayed. Press the Mode Key to enter the pro-
cess value as calibration data.
Set Value LED Display Model Basic Model
15. The prompt str will be displayed for confirmation of the input.
Set Value LED Display Model Basic Model
16. Press the Shift Key to answer the prompt.
Set Value LED Display Model Basic Model
17. Press the Up Key to display yes.
Set Value LED Display Model Basic Model
18. Press the Mode Key to overwrite the calibration data and put the K3NX in
RUN Mode. If no is selected, the calibration data will not be overwritten.
Maintenance Mode
Section 5-3
