Chapter 10: Maintenance

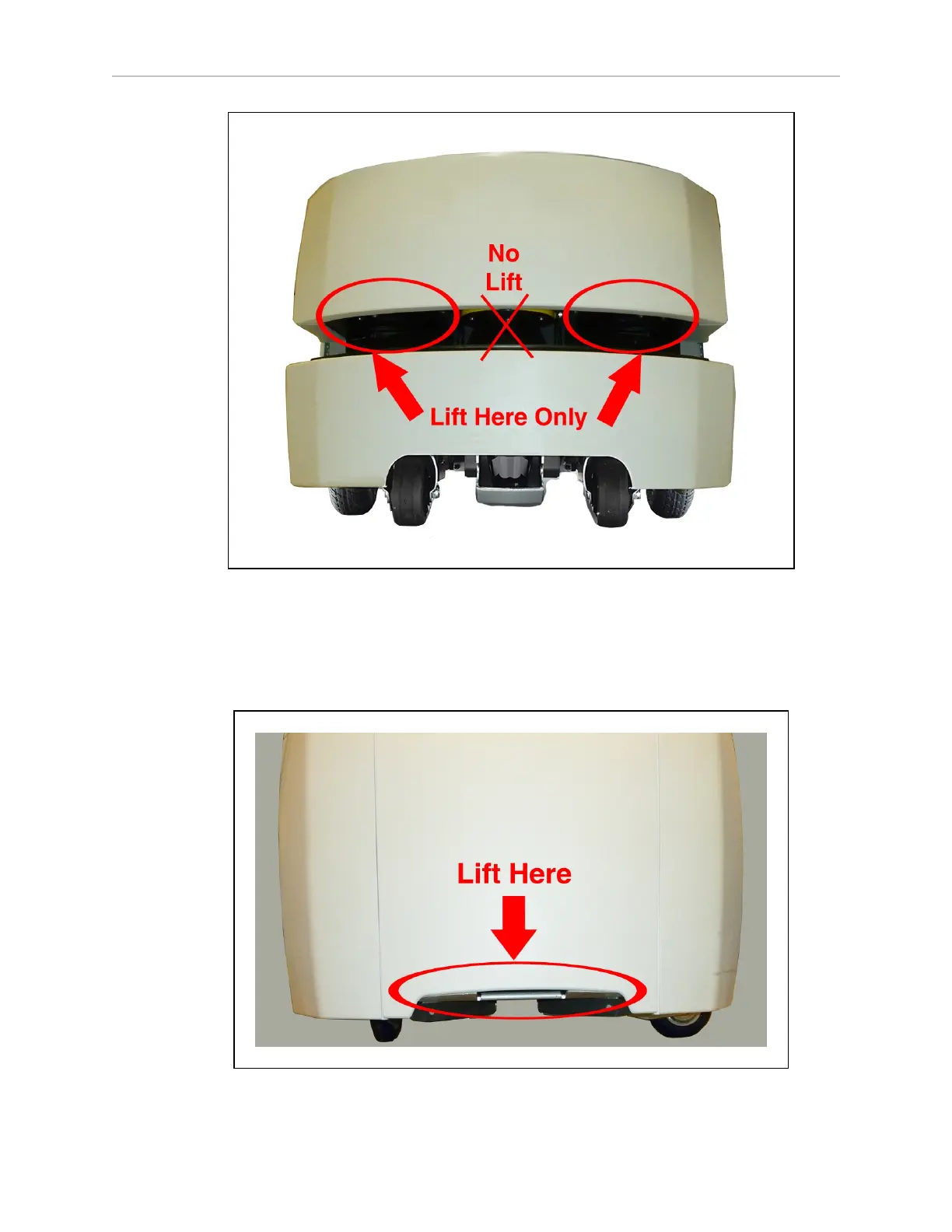

Figure 10-4. The upper surface of the laser slot, at both sides, not the center.
Rear Lifting Area
The center underside of the platform, where the cover has a raised section. Do not lift any-
where else! Refer to the following illustration:
Figure 10-5. Bottom of Inner Rear cover. Lift from the frame, not the cover.
