Chapter 10: Maintenance
Refer to the following two figures.

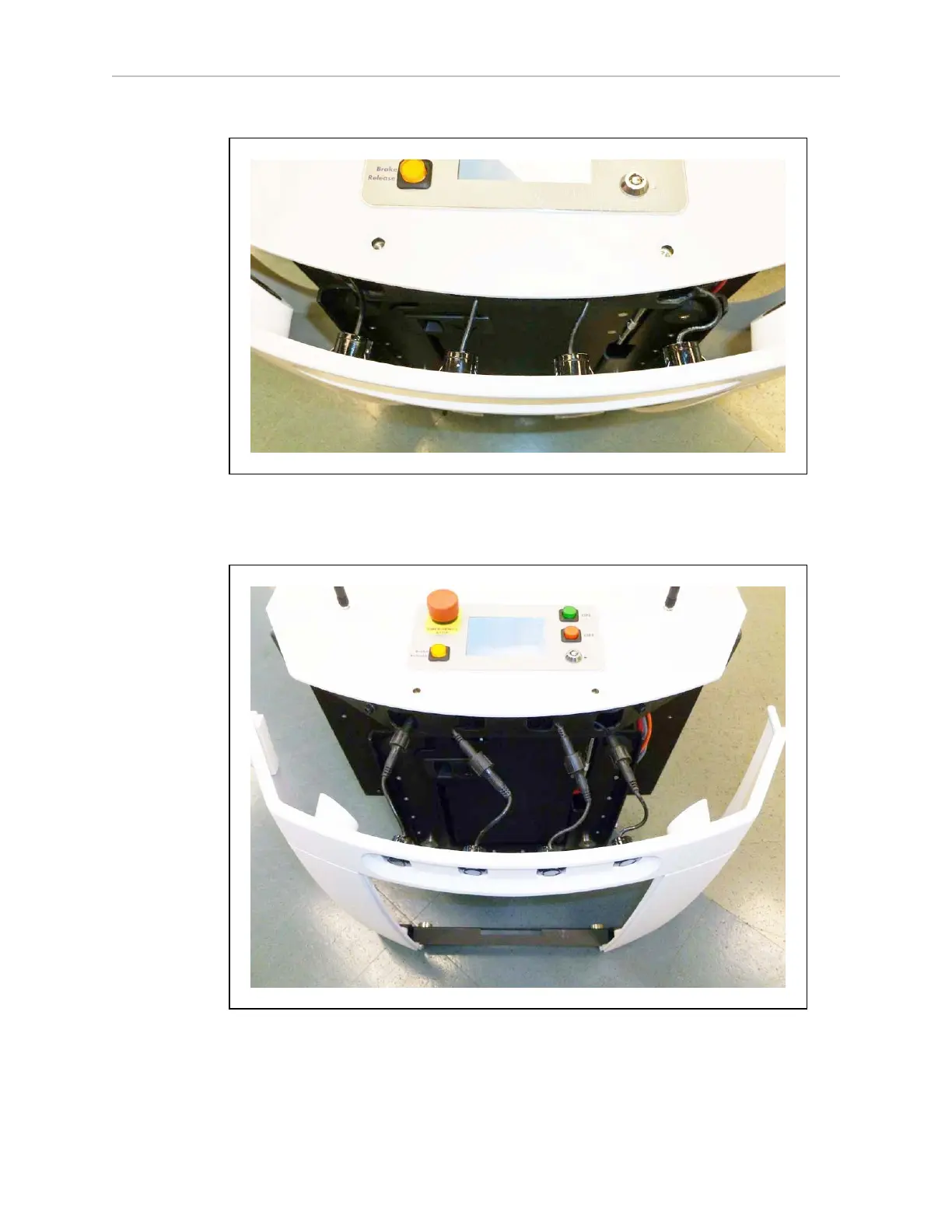

Figure 10-8. Sonar Leads, with Connectors Still in Chassis
3.
Unscrew all four sonar connectors.
Ensure that both sides of all connectors are labeled, and match. If not, label them.
Figure 10-9. Sonar Connectors, with Connectors Exposed
4.
Tilt the cover down to about 45°, and slide the brace on the bottom of the cover out of
its clip.
