LD Cart Transporter User's Guide, 14766-000 Rev B
Page 34 of 190
Chapter 3: Setup

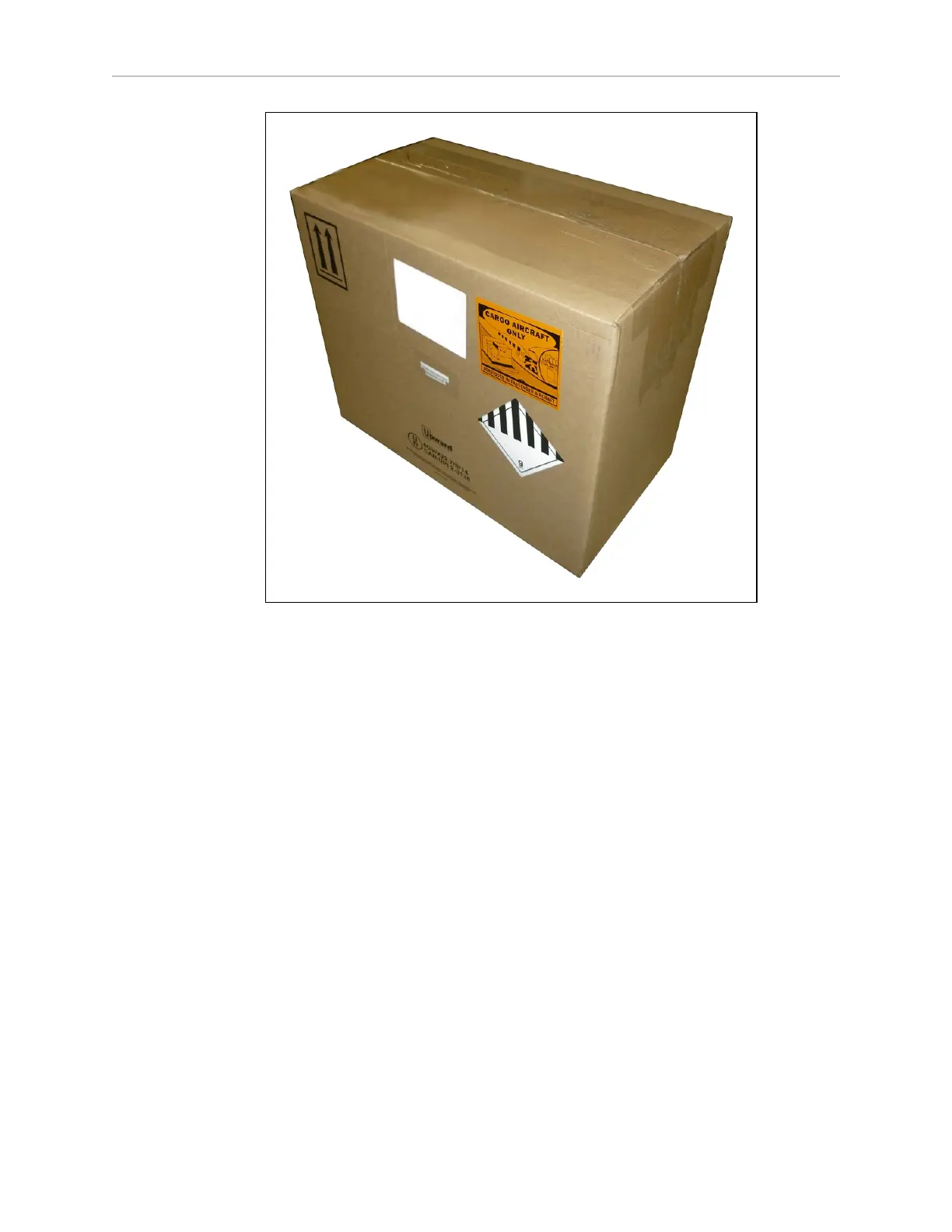

Figure 3-1. Battery Shipping Container
The battery box measures 311 x 540 x 457 mm (12.25 x 21.25 x 18 in.).
NOTE:The battery weighs 19 kg (42 lbs). There are recesses at the front and
the back of the battery, to aid in lifting it.
