LD Cart Transporter User's Guide, 14766-000 Rev B
Page 49 of 190
Chapter 3: Setup

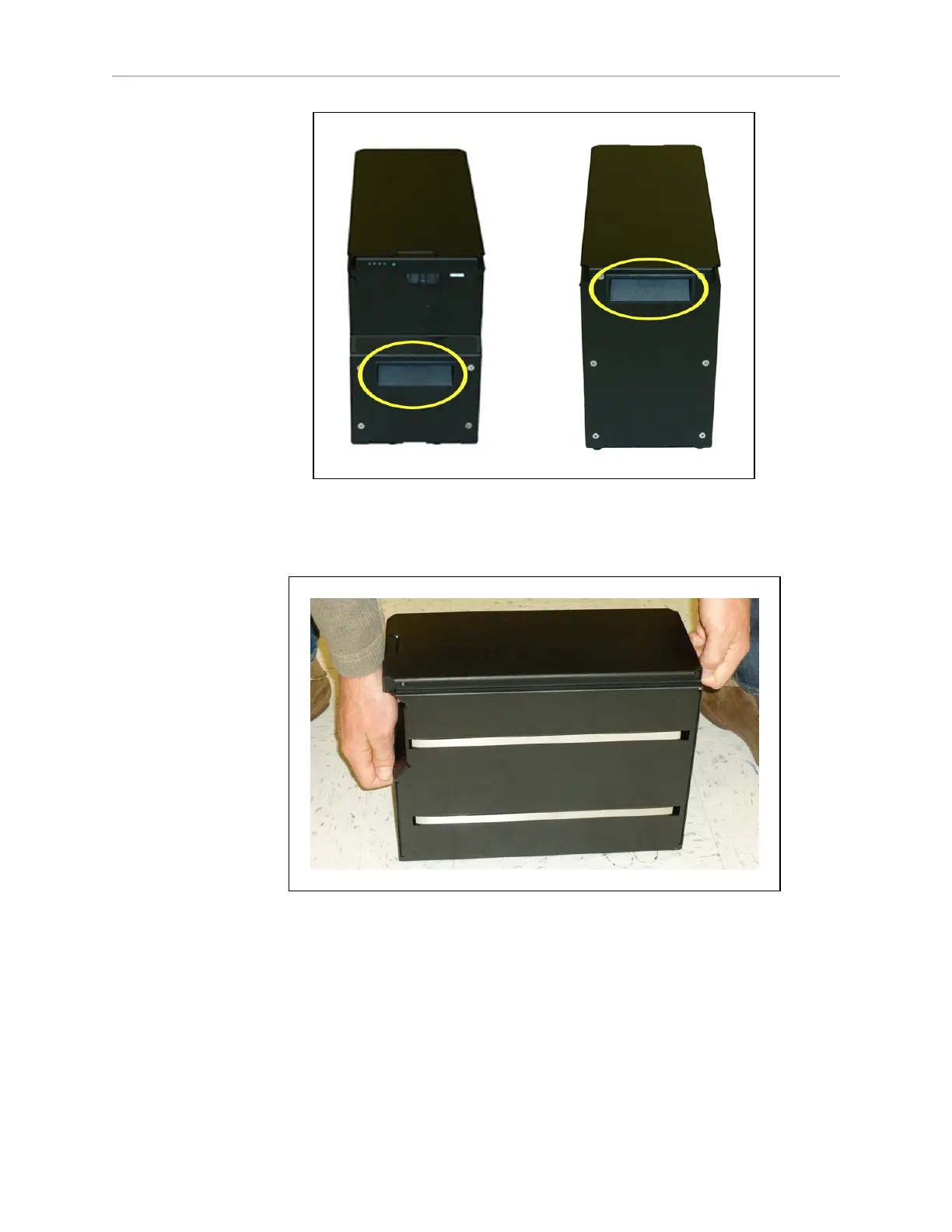

Figure 3-17. Battery Recesses, for Gripping
The battery is designed to be lifted and replaced by one person, using one hand in each
of the grips, as shown in the following figure.
Figure 3-18. Lifting the Battery
The connectors for power and data go toward the rear of the platform.
4.
Attach the battery power and data cables to the connectors at the rear of the battery.
5.
Close the battery compartment door to secure the battery in place.
The battery compartment is designed to hold the battery tightly, so that it will not move
within the compartment, once the door is closed.
6.
Reinstall the inner rear platform cover.
