Omron NA Series Practices Guide

58
No
Part
Description
14
Data Lamp
Displays a result of a comparison of the safety signatures registered in NA and
safety CPU.
15
Data Lamp
Displays a result of a comparison of the signatures registered to the SD card
and safety CPU.
16
Label
The LED indication updates are displayed.
Under automatic update: The writing blinks white
Under suspension: The writing is solid white

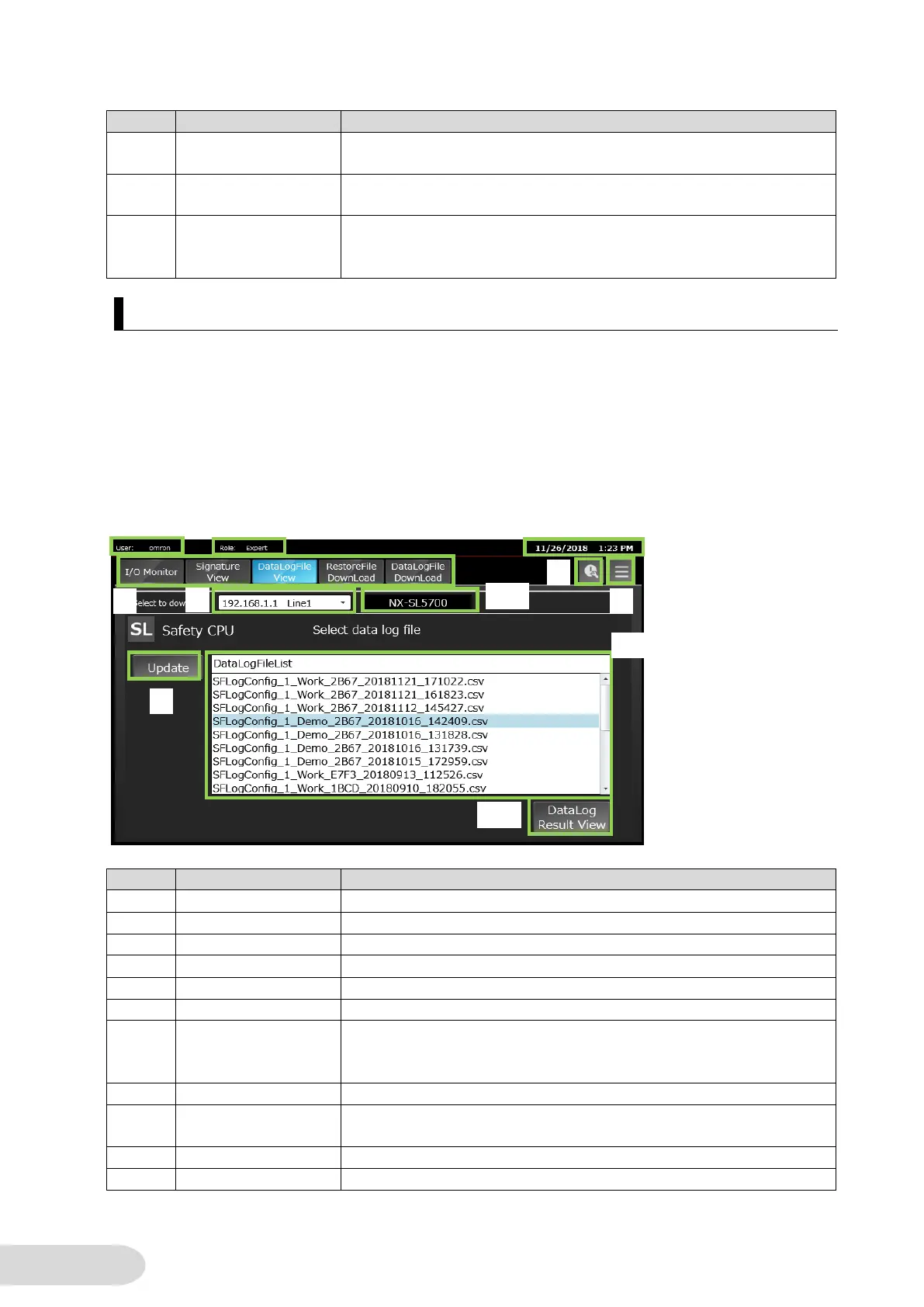

6-3-6 Data Log File Selection Screen
A list of data logging result files saved in the safety CPU’s SD card is displayed. You can select a file
from this list.
Press the DataLog Result View button (No.10) after selecting the file and the screen will be changed
to the Variable Selection screen.
・Screen Layout
No
Part
Description
1
Data Display
Displays the user name who logging in.
2
Data Display
Shows the logging in user’s authority.
3
Data Display
Displays the current time.
4
Button
Switches to each Safety CPU Demo Screen.
5
Button
Switches to the Troubleshooter Screen of the connected controller.
6
Button
Switches to Menu Screen.
7
DropDown
Button
Selects the controller to display its data log file.
Displays the data log file list of the controller selected from the dropdown list
in [9].
8
Button
Updates the data log file list displayed in [9].
9
ListBox
Displays a list of data log files stored in the SD card of the Safety CPU. A file
is selected in this box.
10
Button
Opens the file selected in [9] and switches to Variable Selection Screen.
11
Data Display
Shows the connected safety CPU’s unit model.
1
2
3
4
8
10
5
6
7
9
11

Omron NA Series Specifications

General

Touch Panel	Resistive
Interfaces	USB, Ethernet, RS-232/422/485
Operating Temperature	0°C to 50°C
Power Supply	24 VDC
Protection Rating	IP65 (front panel)
Storage Temperature	-20°C to 60°C
Display Type	TFT LCD
Dimensions	Varies depending on the model
Weight	Varies depending on the model
