Omron NA Series Practices Guide

62

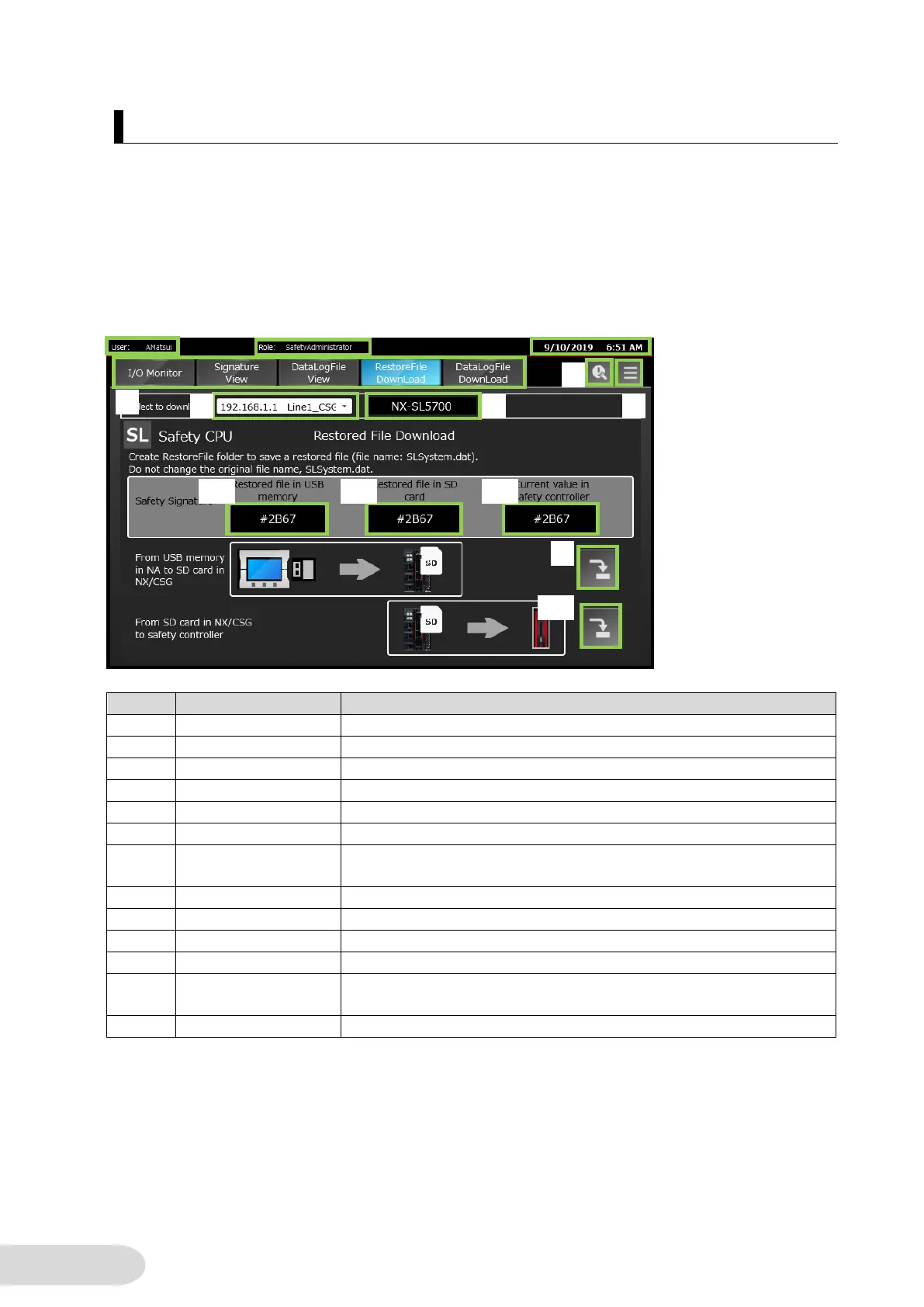

6-3-10 Restored File Download Screen
Download a restored file of the safety CPU unit stored in NA's USB memory to controller's SD card.
Create a new folder "RestoreFile" in the USB memory stick beforehand. Store the file
(SLSystem.dat) you want to restore in the folder.
・Screen Layout
No
Part
Description
1
Data Display
Displays the user name who logging in.
2
Data Display
Shows the logging in user’s authority.
3
Data Display
Displays the current time.
4
Button
Switches to each Safety CPU Demo Screen.
5
Button
Switches to the troubleshooter screen of the connected controller.
6
Button
Switches to Menu Screen.
7
DropDown
Button
You can select a controller from the dropdown list. A restored file will be
downloaded in the selected controller
8
Button
Transfers a restored file stored in NA’s USB memory to an SD card in NX/CSG.
9
Data Display
Displays the connected safety CPU’s unit model.
10
Button
You can restore the safety controller.
11
Data Display
Displays the signature information that registered in NA.
12
Data Display
Displays the signature information that registered in an SD card inside
NX/CSG.
13
Data Display
Displays the signature information of NX/CSG.
1
2
3
4
5
6
7
8
9
10
11
12
13

Omron NA Series Specifications

General

Touch Panel	Resistive
Interfaces	USB, Ethernet, RS-232/422/485
Operating Temperature	0°C to 50°C
Power Supply	24 VDC
Protection Rating	IP65 (front panel)
Storage Temperature	-20°C to 60°C
Display Type	TFT LCD
Dimensions	Varies depending on the model
Weight	Varies depending on the model
